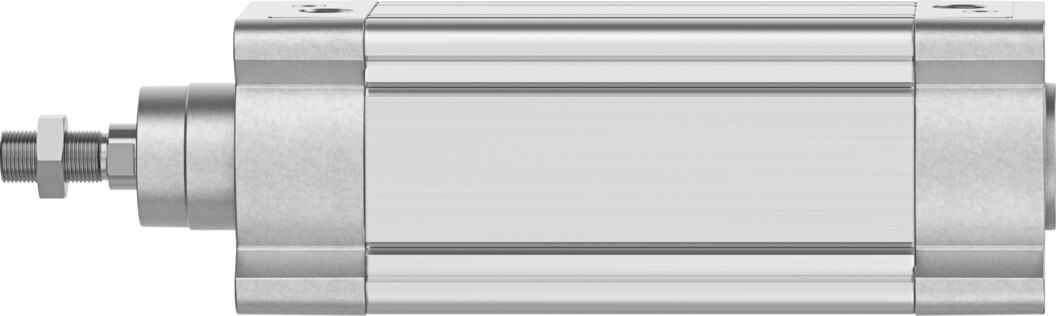

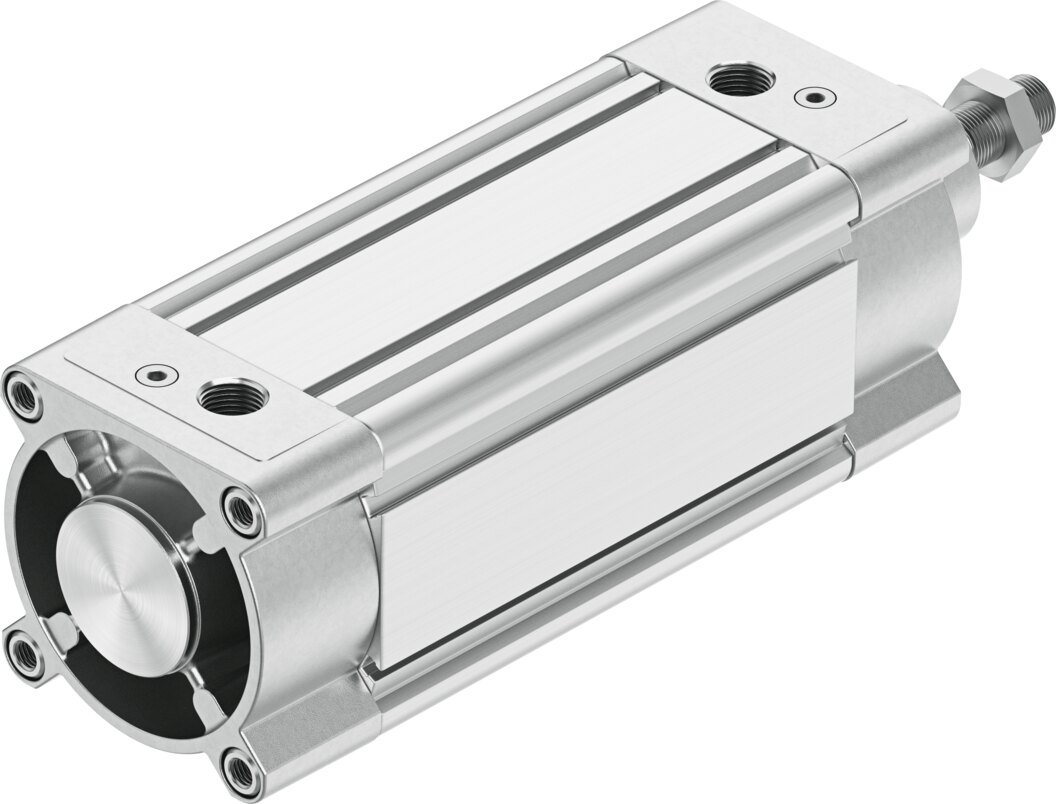

Double-acting ISO 15552 standard cylinder Ø 100 mm stroke 160 mm DSBC-100-160-D3-PPVA-N3 - Festo 8165651
For travel of 160 mm, the Festo ISO 15552 standard cylinder DSBC-100-160-D3-PPVA-N3 with a Ø 100 mm piston supplies 4712 N of advance force at 6 bar. PPV cushioning lets you tune both end positions to the load, effective over 31 mm. Port G1/2, end-position sensing via proximity switches.
Net
excl. VAT
€376.30
Item
FES-8165651
Manufacturer no.
DSBC-100-160-D3-PPVA-N3
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
4712 N of theoretical advance force at 6 bar over a 160 mm stroke characterise the double-acting ISO 15552 standard cylinder DSBC-100-160-D3-PPVA-N3 with a Ø 100 mm piston. Permissible operating pressure is 0.4 to 12 bar, ambient temperature -20 to 80 °C.
Benefits at a glance
- 4712 N advance and 4418 N return force at 6 bar
- Adjustable end-position cushioning PPV, up to 2.5 J
- Position detection via proximity switches
- Operating pressure 0.4 to 12 bar
- Dimensions to ISO 15552
- Piston rod thread m20x1.5, piston rod: high-alloy steel
Use
Typical tasks for the DSBC-100-160-D3-PPVA-N3 are clamping, ejecting and shifting over 160 mm in assembly and test systems. The operating medium for the DSBC-100-160-D3-PPVA-N3 is compressed air to ISO 8573-1:2010 [7:4:4].
Technical data
| Order type | DSBC-100-160-D3-PPVA-N3 |
|---|---|
| Festo part number | 8165651 |
| Stroke | 160 mm |
| Piston diameter | 100 mm |
| Piston rod thread | m20x1.5 |
| Cushioning | pneumatic cushioning, adjustable at both ends |
| Mounting position | any |
| Conforms to standard | ISO 15552 |
| Piston rod end | male thread |
| Design | piston, piston rod, profile barrel |
| Position detection | via proximity switch |
| Variants | piston rod at one end |
| Operating pressure | 0.4 to 12 bar |
| Mode of operation | double-acting |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20 to 80 °C |
| Impact energy in end positions | 2.5 J |
| Cushioning length | 31 mm |
| Theoretical force at 6 bar, return stroke | 4418 N |
| Theoretical force at 6 bar, advance stroke | 4712 N |
| Moving mass | 1624 g |
| Moving mass for 0 mm stroke | 1000 g |
| Additional moving mass per 10 mm stroke | 39 g |
| Product weight | 6368 g |
| Basic weight for 0 mm stroke | 3728 g |
| Additional weight per 10 mm stroke | 152 g |
| Type of mounting | with female thread, with accessories |
| Pneumatic connection | G1/2 |
| Note on materials | roHS compliant |
| Material cover | coated die-cast aluminium |
| Material piston seal | TPE-U(PU) |
| Material piston | wrought aluminium alloy |
| Material piston rod | high-alloy steel |
| Material piston rod wiper | TPE-U(PU) |
| Material buffer seal | TPE-U(PU) |
| Material cushioning boss | POM |
| Material cylinder barrel | smooth-anodised wrought aluminium alloy |
| Material nut | galvanised steel |
| Material rod wiper | TPE-E |
| Material bearing | metal polymer compound |
| Material collar screws | galvanised steel |
| Customs tariff number | 84123100 |
| Manufacturer | Festo |
| Hersteller-Nr | DSBC-100-160-D3-PPVA-N3 |
| EAN | 4052568598037 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | einseitige Kolbenstange |
| Thread | G 1/2 |
| Piston Ø [mm] | 100 |
| Stroke [mm] | 160 |
| Medium | Compressed air |
| Function | double-acting |
| Norm | ISO 15552 |
| Series | DSBC |
| Bore (mm) | 100 |
| Betriebsdruck max [bar] | 12 |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
