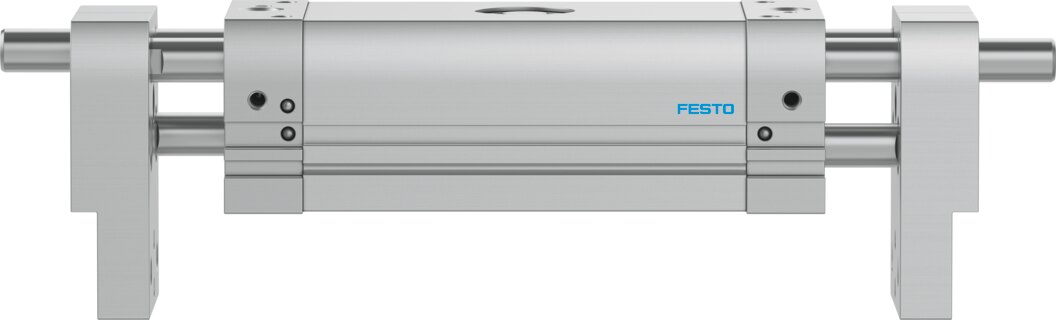

Pneumatic parallel gripper size 25, stroke per jaw 60 mm DHPL-25-120-P-A - Festo 8112221

Festo ✓ Original product Brand new

With 190 N gripping force per jaw when closing at 6 bar, the parallel gripper DHPL-25-120-P-A holds prismatic and round parts. 60 mm stroke per jaw, repetition accuracy 0.03 mm, double-acting, plain-bearing guide. Runs on 1.5 to 8 bar via M5 port. Position detection with proximity switches.

Net
€510.86
excl. VAT
Item FES-8112221
Manufacturer no. DHPL-25-120-P-A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The size 25 parallel gripper DHPL-25-120-P-A delivers 190 N gripping force per jaw when closing at 6 bar. Both jaws move parallel towards each other. Version DHPL-25-120-P-A: double-acting, plain-bearing guide, rack and pinion.

Benefits

  • 190 N gripping force per jaw when closing at 6 bar, total gripping force 380 N
  • Repetition accuracy 0.03 mm, replacement accuracy 0.2 mm
  • 60 mm stroke per jaw, with max. 305 g per external gripper finger
  • Closing time from 274 ms, opening time from 201 ms at 6 bar, operating frequency 1.5 Hz
  • Corrosion resistance class CRC 1, ambient temperature -10 to 60 °C

Applications

Typical tasks for the DHPL-25-120-P-A are assembly, feeding and pick-and-place in automated systems, at -10 to 60 °C ambient temperature. Gripper fingers are mounted on the jaws, each external finger may weigh up to 305 g. Position detection with proximity switches. Shipping weight 2.5 kg.

Technical data

Size25
Total stroke120 mm
Stroke per gripper jaw60 mm
Max. replacement accuracy0.2 mm
Max. angular gripper jaw backlash ax, ay0.13°
Max. gripper jaw backlash Sz0.064 mm
Rotational symmetry0.2 mm
Repetition accuracy, gripper0.03 mm
Number of gripper jaws2
Mounting positionAny
Mode of operationDouble-acting
CushioningElastic cushioning rings/plates at both ends
Gripper functionParallel
DesignRack and pinion
GuidePlain-bearing guide
Position detectionVia proximity switch
Operating pressure1.5 to 8 bar
Max. operating frequency of gripper1.5 Hz
Min. opening time at 6 bar201 ms
Min. closing time at 6 bar274 ms
Max. mass per external gripper finger305 g
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating mediumLubricated operation possible, after that always operate lubricated
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Degree of protectionIP54
Ambient temperature-10 to 60 °C
Total gripping force, opening at 6 bar490 N
Total gripping force, closing at 6 bar380 N
Gripping force per gripper jaw, opening at 6 bar245 N
Gripping force per gripper jaw, closing at 6 bar190 N
Mass moment of inertia118.1 to 258.9 kgcm²
Max. force on gripper jaw Fz static320 N
Max. torque at gripper Mx static6.5 Nm
Max. torque at gripper My static6.5 Nm
Max. torque at gripper Mz static6.5 Nm
Maintenance intervalLifetime lubrication
Product weight2297 g
Type of mountingDirect mounting via thread, With through-hole
Pneumatic connectionM5
Note on materialsRoHS compliant
Cover cap materialWrought aluminium alloy, anodised
Cover materialAnodised wrought aluminium alloy
End plate materialAnodised wrought aluminium alloy
Housing materialAnodised wrought aluminium alloy
Gripper jaw materialAnodised wrought aluminium alloy
Piston seal materialTPE-U(PU)
Material piston rodHigh-alloy stainless steel
O-ring materialNBR
Screw materialGalvanised steel
Gear rack materialHigh-alloy stainless steel
Gear wheel materialSintered bronze
Weight2.5 kg
ManufacturerFesto
Hersteller-NrDHPL-25-120-P-A
EAN4052568573201
Zolltarifnummer84798997
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM5
MediumCompressed air
Functiondouble-acting
Actuation typepneumatic
Betriebsdruck max [bar]8
Protection ratingIP54
Temperaturbereich-10-60 °C
Temperature (max.)60
