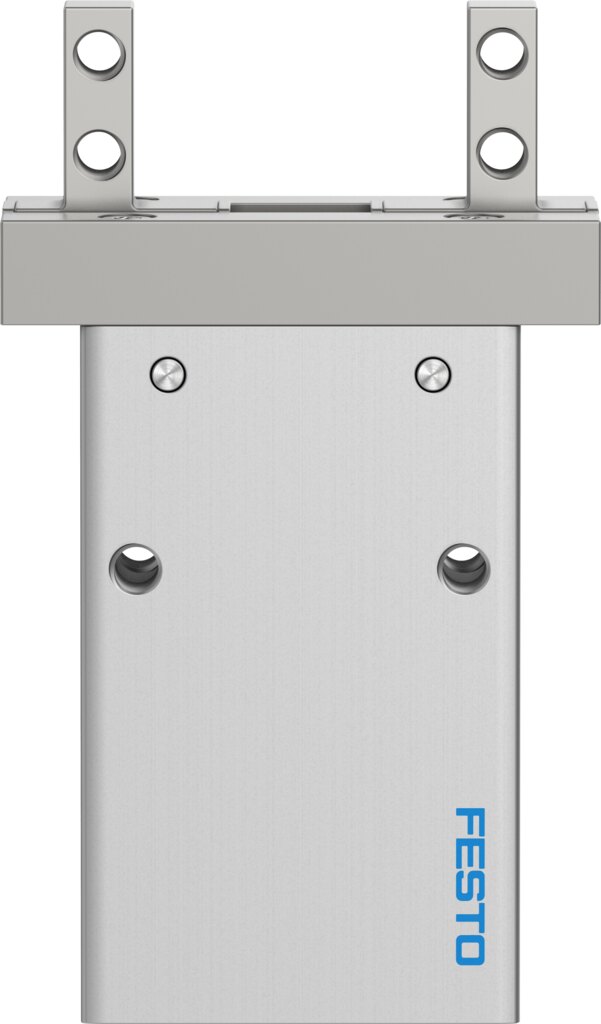

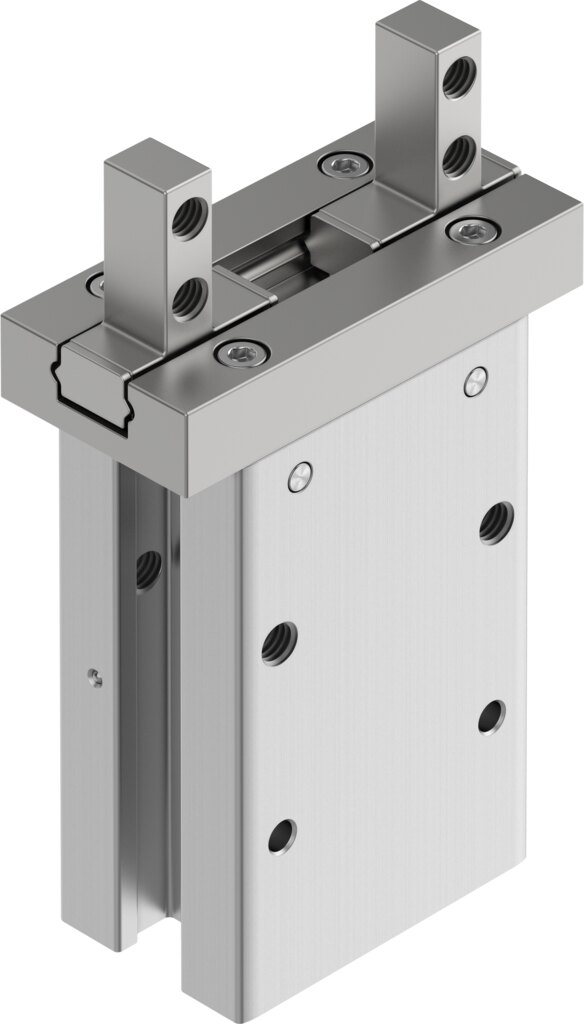

Pneumatic parallel gripper size 10, stroke per jaw 4 mm DHPC-L-10-A-B-1 - Festo 8116775

Festo ✓ Original product Brand new

The parallel gripper DHPC-L-10-A-B-1 holds prismatic and round parts and delivers 21.5 N gripping force per jaw when closing at 6 bar. 4 mm stroke per jaw, repetition accuracy 0.02 mm, double-acting, ball guide. Runs on 2 to 8 bar via M3 port. Position detection with proximity switches.

Net
€269.82
excl. VAT
Item FES-8116775
Manufacturer no. DHPC-L-10-A-B-1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

21.5 N gripping force per jaw when closing at 6 bar: that is what the size 10 parallel gripper DHPC-L-10-A-B-1 provides. Both jaws move parallel towards each other. Version DHPC-L-10-A-B-1: double-acting, ball guide, side finger mounting.

Benefits

  • 21.5 N gripping force per jaw when closing at 6 bar, total gripping force 43 N
  • Repetition accuracy 0.02 mm, replacement accuracy 0.2 mm
  • 4 mm stroke per jaw, with max. 25 g per external gripper finger
  • Closing time from 15 ms, opening time from 15 ms at 6 bar, operating frequency 3 Hz
  • Corrosion resistance class CRC 0, ambient temperature -10 to 60 °C

Applications

Typical tasks for the DHPC-L-10-A-B-1 are assembly, feeding and pick-and-place in automated systems, at -10 to 60 °C ambient temperature. Gripper fingers are mounted on the jaws, each external finger may weigh up to 25 g. Position detection with proximity switches. The DHPC-L-10-A-B-1 is suitable for battery production with reduced Cu/Zn/Ni values (F1a).

Technical data

Size10
Stroke per gripper jaw4 mm
Max. replacement accuracy0.2 mm
Max. angular gripper jaw backlash ax, ay0°
Max. gripper jaw backlash Sz0 mm
Rotational symmetry0.2 mm
Repetition accuracy, gripper0.02 mm
Number of gripper jaws2
Drive systemPneumatic
Mounting positionAny
Mode of operationDouble-acting
Gripper functionParallel
Gripping force retentionNone
DesignLever, Side mounting method for gripper fingers, Positively driven motion sequence
GuideBall guide
Position detectionVia proximity switch
VariantsVariant without copper, zinc or nickel as main constituent (except nickel in steel, chemically nickel-plated surfaces, PCBs, cables, connectors and coils)
Operating pressure2 to 8 bar
Max. operating frequency of gripper3 Hz
Min. opening time at 6 bar15 ms
Min. closing time at 6 bar15 ms
Max. mass per external gripper finger25 g
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating mediumLubricated operation possible, after that always operate lubricated
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient temperature-10 to 60 °C
Total gripping force, opening at 6 bar51.2 N
Total gripping force, closing at 6 bar43 N
Gripping force per gripper jaw, opening at 6 bar25.6 N
Gripping force per gripper jaw, closing at 6 bar21.5 N
Mass moment of inertia0.057 kgcm²
Max. force on gripper jaw Fz static33 N
Max. torque at gripper Mx static0.28 Nm
Max. torque at gripper My static0.18 Nm
Max. torque at gripper Mz static0.28 Nm
Product weight59 g
Type of mountingDirect mounting via through-hole, Direct mounting via thread, Via through-hole and dowel pin, Via female thread and dowel pin
Pneumatic connectionM3
Note on materialsRoHS compliant
Housing materialAnodised aluminium
Gripper jaw materialHigh-alloy stainless steel
ManufacturerFesto
Hersteller-NrDHPC-L-10-A-B-1
EAN4052568554293
Zolltarifnummer84798997
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM3
MediumCompressed air
Functiondouble-acting
Actuation typepneumatic
Betriebsdruck max [bar]8
Temperaturbereich-10-60 °C
Temperature (max.)60
