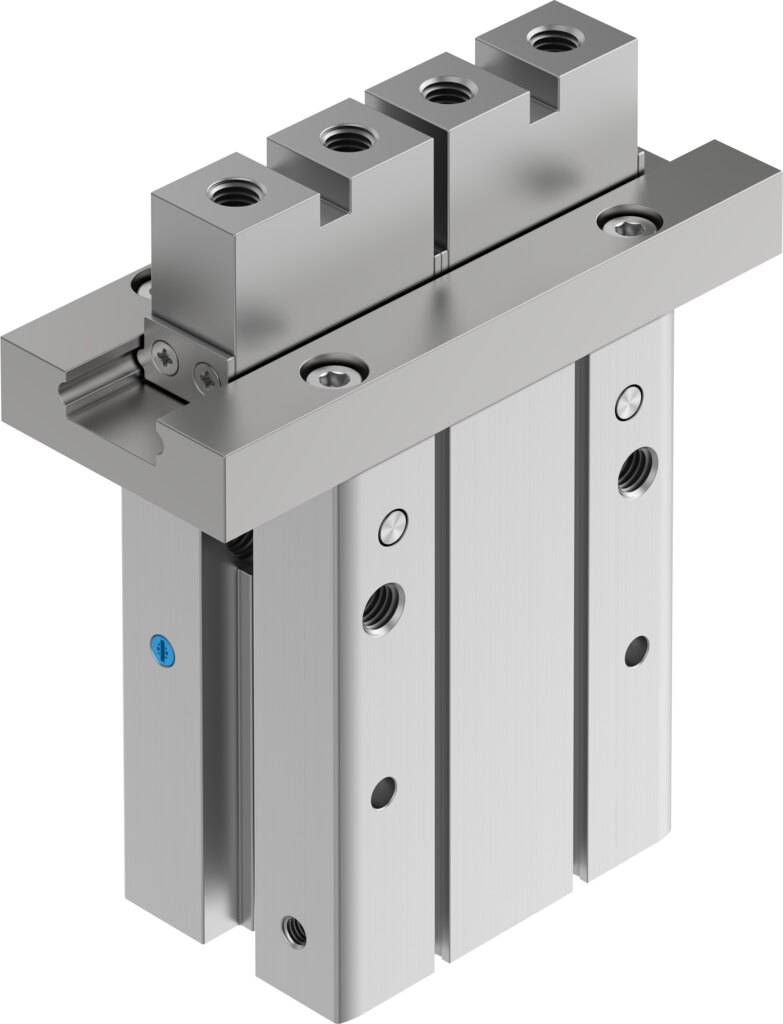

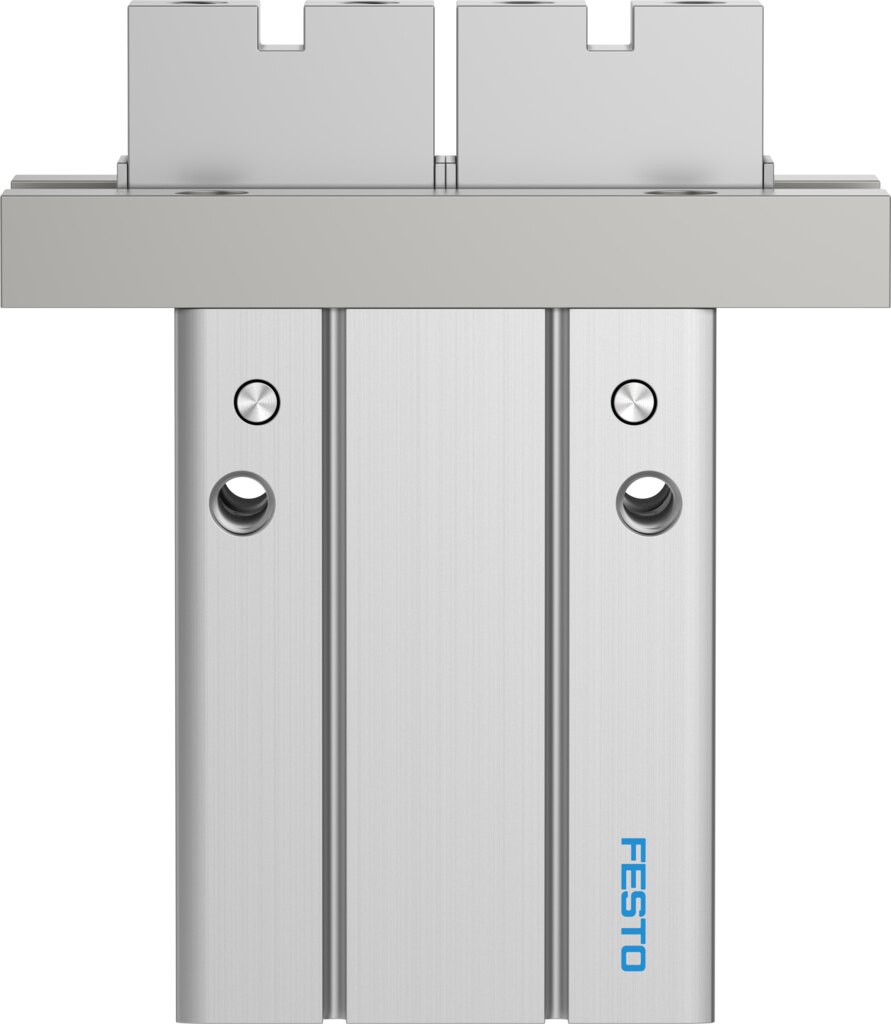

Pneumatic parallel gripper size 40, stroke per jaw 15 mm DHPC-40-A-NC-S-2 - Festo 8116905

Festo ✓ Original product Brand new

With 366.8 N gripping force per jaw when opening at 6 bar, the parallel gripper DHPC-40-A-NC-S-2 holds prismatic and round parts. 15 mm stroke per jaw, repetition accuracy 0.02 mm, single-acting, normally closed, ball guide. Runs on 2.5 to 8 bar via M5 port.

Net
€604.43
excl. VAT
Item FES-8116905
Manufacturer no. DHPC-40-A-NC-S-2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

366.8 N gripping force per jaw when opening at 6 bar: that is what the size 40 parallel gripper DHPC-40-A-NC-S-2 provides. Both jaws move parallel towards each other. Version DHPC-40-A-NC-S-2: single-acting, normally closed, ball guide, flat finger mounting.

Benefits

  • 366.8 N gripping force per jaw when opening at 6 bar
  • Repetition accuracy 0.02 mm, replacement accuracy 0.2 mm
  • 15 mm stroke per jaw, with max. 400 g per external gripper finger
  • Closing time from 78 ms, opening time from 370 ms at 6 bar, operating frequency 1 Hz
  • Gripping force retention when closing
  • Corrosion resistance class CRC 0, ambient temperature -10 to 60 °C

Applications

Typical tasks for the DHPC-40-A-NC-S-2 are assembly, feeding and pick-and-place in automated systems, at -10 to 60 °C ambient temperature. Gripper fingers are mounted on the jaws, each external finger may weigh up to 400 g. Position detection with proximity switches. The DHPC-40-A-NC-S-2 is suitable for battery production with reduced Cu/Zn/Ni values (F1a).

Technical data

Size40
Stroke per gripper jaw15 mm
Max. replacement accuracy0.2 mm
Max. angular gripper jaw backlash ax, ay0°
Max. gripper jaw backlash Sz0 mm
Rotational symmetry0.2 mm
Repetition accuracy, gripper0.02 mm
Number of gripper jaws2
Drive systemPneumatic
Mounting positionAny
Mode of operationSingle-acting, normally closed
Gripper functionParallel
Gripping force retentionDuring closing
DesignFlat mounting method for gripper fingers, Lever, Positively driven motion sequence
GuideBall guide
Position detectionVia proximity switch
Operating pressure2.5 to 8 bar
Max. operating frequency of gripper1 Hz
Min. opening time at 6 bar370 ms
Min. closing time at 6 bar78 ms
Max. mass per external gripper finger400 g
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating mediumLubricated operation possible, after that always operate lubricated
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient temperature-10 to 60 °C
Total gripping force, opening at 6 bar733.5 N
Gripping force per gripper jaw, opening at 6 bar366.8 N
Mass moment of inertia16.27 kgcm²
Max. force on gripper jaw Fz static351.5 N
Max. torque at gripper Mx static9.55 Nm
Max. torque at gripper My static16.15 Nm
Max. torque at gripper Mz static9.55 Nm
Product weight1560 g
Type of mountingDirect mounting via through-hole, Direct mounting via thread, On mounting frame, Via through-hole and dowel pin, Via female thread and dowel pin
Pneumatic connectionM5
Note on materialsRoHS compliant
Housing materialAnodised aluminium
Gripper jaw materialHigh-alloy stainless steel
ManufacturerFesto
Hersteller-NrDHPC-40-A-NC-S-2
EAN4052568564759
Zolltarifnummer84798997
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM5
MediumCompressed air
Functionsingle-acting
Actuation typepneumatic
Betriebsdruck max [bar]8
Temperaturbereich-10-60 °C
Temperature (max.)60
