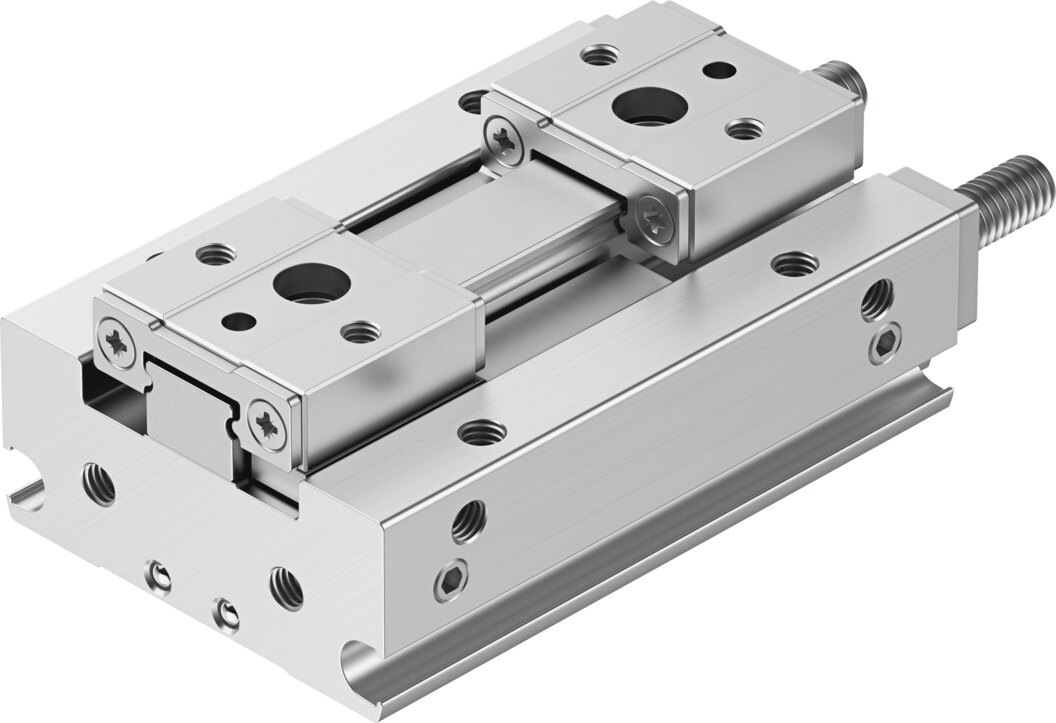

Pneumatic parallel gripper size 20, stroke per jaw 20 mm HPPF-20-40-A-S - Festo 8143426
The parallel gripper HPPF-20-40-A-S holds prismatic and round parts and delivers 173.3 N gripping force per jaw when closing at 6 bar. 20 mm stroke per jaw, repetition accuracy 0.06 mm, double-acting, ball guide. Runs on 1 to 7 bar via M5 port. Position detection with proximity switches.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The size 20 parallel gripper HPPF-20-40-A-S delivers 173.3 N gripping force per jaw when closing at 6 bar. Both jaws move parallel towards each other. Version HPPF-20-40-A-S: double-acting, ball guide, rack and pinion, flat finger mounting.
Benefits
- 173.3 N gripping force per jaw when closing at 6 bar, total gripping force 346.6 N
- Repetition accuracy 0.06 mm
- 20 mm stroke per jaw, with max. 625 g per external gripper finger
- Closing time from 110 ms, opening time from 120 ms at 6 bar, operating frequency 1 Hz
- Corrosion resistance class CRC 0, ambient temperature -10 to 60 °C
Applications
Typical tasks for the HPPF-20-40-A-S are assembly, feeding and pick-and-place in automated systems, at -10 to 60 °C ambient temperature. Gripper fingers are mounted on the jaws, each external finger may weigh up to 625 g. Position detection with proximity switches. The HPPF-20-40-A-S is suitable for battery production with reduced Cu/Zn/Ni values (F1a). Shipping weight 1 kg.
Technical data
| Size | 20 |
|---|---|
| Total stroke | 40 mm |
| Stroke per gripper jaw | 20 mm |
| Max. angular gripper jaw backlash ax, ay | 0° |
| Max. gripper jaw backlash Sz | 0 mm |
| Repetition accuracy, gripper | 0.06 mm |
| Number of gripper jaws | 2 |
| Drive system | Pneumatic |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Gripper function | Parallel |
| Gripping force retention | None |
| Design | Flat mounting method for gripper fingers, Rack and pinion, Positively driven motion sequence |
| Guide | Ball guide |
| Position detection | Via proximity switch |
| Variants | Variant without copper, zinc or nickel as main constituent (except nickel in steel, chemically nickel-plated surfaces, PCBs, cables, connectors and coils) |
| Operating pressure | 1 to 7 bar |
| Max. operating frequency of gripper | 1 Hz |
| Min. opening time at 6 bar | 120 ms |
| Min. closing time at 6 bar | 110 ms |
| Max. mass per external gripper finger | 625 g |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating medium | Lubricated operation possible, after that always operate lubricated |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Ambient temperature | -10 to 60 °C |
| Total gripping force, opening at 6 bar | 346.6 N |
| Total gripping force, closing at 6 bar | 346.6 N |
| Gripping force per gripper jaw, opening at 6 bar | 173.3 N |
| Gripping force per gripper jaw, closing at 6 bar | 173.3 N |
| Max. force on gripper jaw Fz static | 320 N |
| Max. moment Mx | 6 Nm |
| Max. moment My | 3 Nm |
| Max. moment Mz | 3 Nm |
| Product weight | 993 g |
| Type of mounting | Direct mounting via through-hole, Direct mounting via thread |
| Pneumatic connection | M5 |
| Note on materials | RoHS compliant |
| Cover cap material | Wrought aluminium alloy, anodised |
| Cover material | Anodised wrought aluminium alloy |
| End plate material | High-alloy stainless steel |
| Housing material | Anodised wrought aluminium alloy |
| Gripper jaw material | High-alloy steel |
| Piston seal material | TPE-U(PU) |
| O-ring material | NBR |
| Screw material | Coated steel |
| Gear rack material | High-alloy stainless steel |
| Weight | 1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | HPPF-20-40-A-S |
| EAN | 4052568586379 |
| Zolltarifnummer | 84798997 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | M5 |
| Medium | Compressed air |
| Function | double-acting |
| Actuation type | pneumatic |
| Betriebsdruck max [bar] | 7 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
