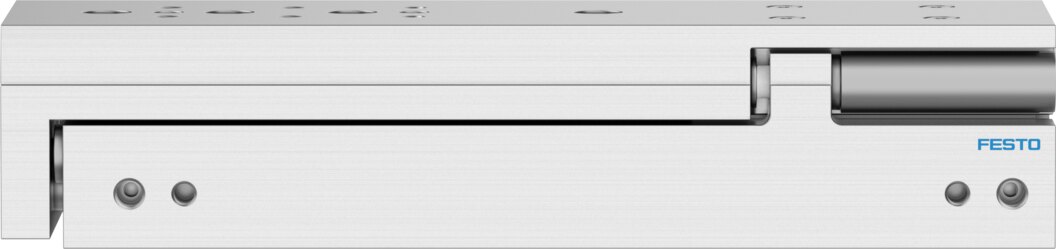

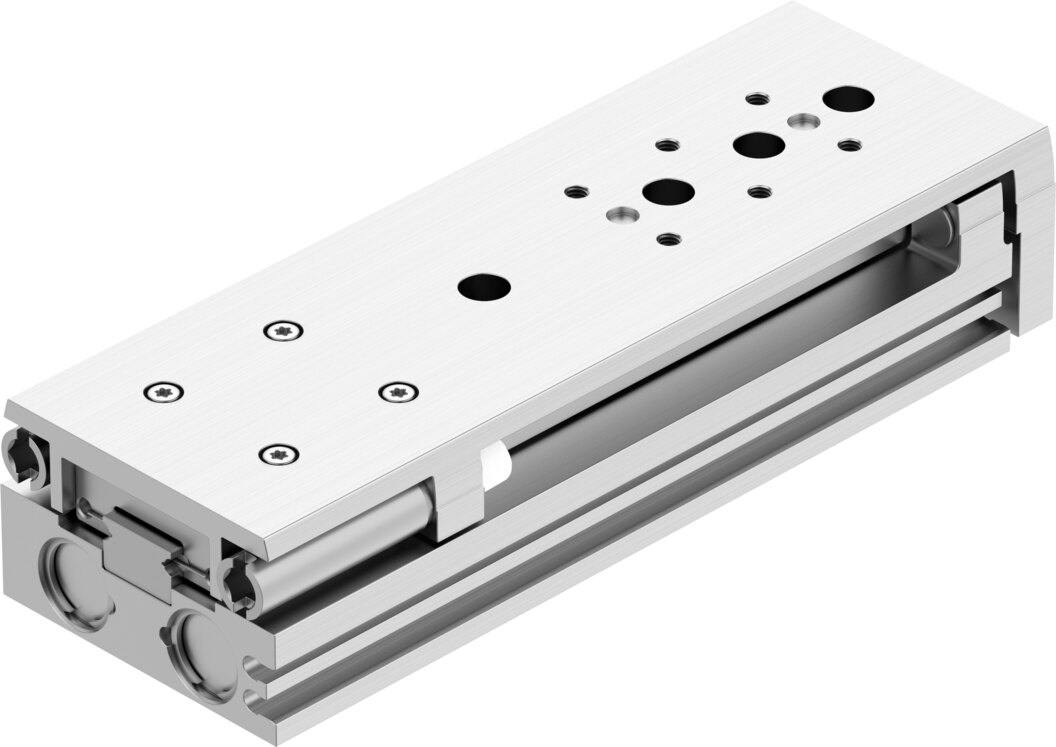

Double-acting mini slide piston Ø 12 mm stroke 100 mm DGST-12-100-Y12A - Festo 8085175
Piston Ø 12 mm, stroke 100 mm: the DGST-12-100-Y12A is a double-acting mini slide with an integrated guide. The recirculating ball bearing guide absorbs transverse forces up to 620 N without loading the piston rod. It meets cleanroom class 6 to ISO 14644-1.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Where small loads have to be moved precisely along a guide, the mini slide DGST-12-100-Y12A is the right unit: 100 mm stroke, piston Ø 12 mm and 136 N advance force at 6 bar, combined with a recirculating ball bearing guide.
Benefits
- Theoretical force at 6 bar: 136 N advance, 102 N return
- Repetition accuracy ≤ 0.02 mm for reproducible end positions
- End position cushioning: external hydraulic cushioning, permissible impact energy 1.4 J
- Cleanroom class 6 to ISO 14644-1, LABS conformity VDMA24364-B1/B2-L
- Travel speed up to 0.8 m/s
- Recirculating ball bearing guide for transverse forces up to 620 N and torques Mx 10 Nm, My 6.8 Nm, Mz 6.8 Nm
Applications
As a compact linear axis, the DGST-12-100-Y12A works in feeding technology and small parts assembly. Compressed air to ISO 8573-1:2010 [7:4:4], 1 to 8 bar, port M5. End positions can be sensed with proximity switches.
Technical data
| Type | DGST-12-100-Y12A |
|---|---|
| Series | Festo DGST |
| Stroke | 100 mm |
| Piston diameter | 12 mm |
| Adjustable end position range, front | 16.7 mm |
| Adjustable end position range, rear | 15.2 mm |
| Mode of operation | Double-acting |
| Operating mode of drive unit | Yoke |
| Design | Yoke, piston rod, slide |
| Guide | Recirculating ball bearing guide |
| Cushioning | External hydraulic cushioning |
| Cushioning length | 5 mm |
| Impact energy in end positions | 1.4 J |
| Maximum speed | 0.8 m/s |
| Repetition accuracy | ≤ 0.02 mm |
| Position detection | Via proximity switch |
| Mounting position | Any |
| Operating pressure | 1 to 8 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (lubrication then always required) |
| Ambient temperature | -10 to 60 °C |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Cleanroom suitability to ISO 14644-14 | Class 6 to ISO 14644-1 |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Maximum force Fy | 620 N |
| Maximum force Fz | 620 N |
| Maximum moment Mx | 10 Nm |
| Maximum moment My | 6.8 Nm |
| Maximum moment Mz | 6.8 Nm |
| Theoretical force at 6 bar, advance stroke | 136 N |
| Theoretical force at 6 bar, return stroke | 102 N |
| Moving mass | 481 g |
| Product weight | 1020 g |
| Pneumatic connection | M5 |
| Type of mounting | With through-hole |
| Material housing | Wrought aluminium alloy |
| Material cover | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Material guide | POM, TPE-E, high-alloy steel |
| Material seals | HNBR |
| Note on materials | RoHS compliant |
| Festo part number | 8085175 |
| HS code | 84123100 |
| Weight | 1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DGST-12-100-Y12A |
| EAN | 4052568450632 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | M5 |
| Piston Ø [mm] | 12 |
| Stroke [mm] | 100 |
| Seal material | HNBR |
| Housing material | Aluminium |
| Medium | Compressed air |
| Function | double-acting |
| Bore (mm) | 12 |
| Betriebsdruck max [bar] | 8 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
