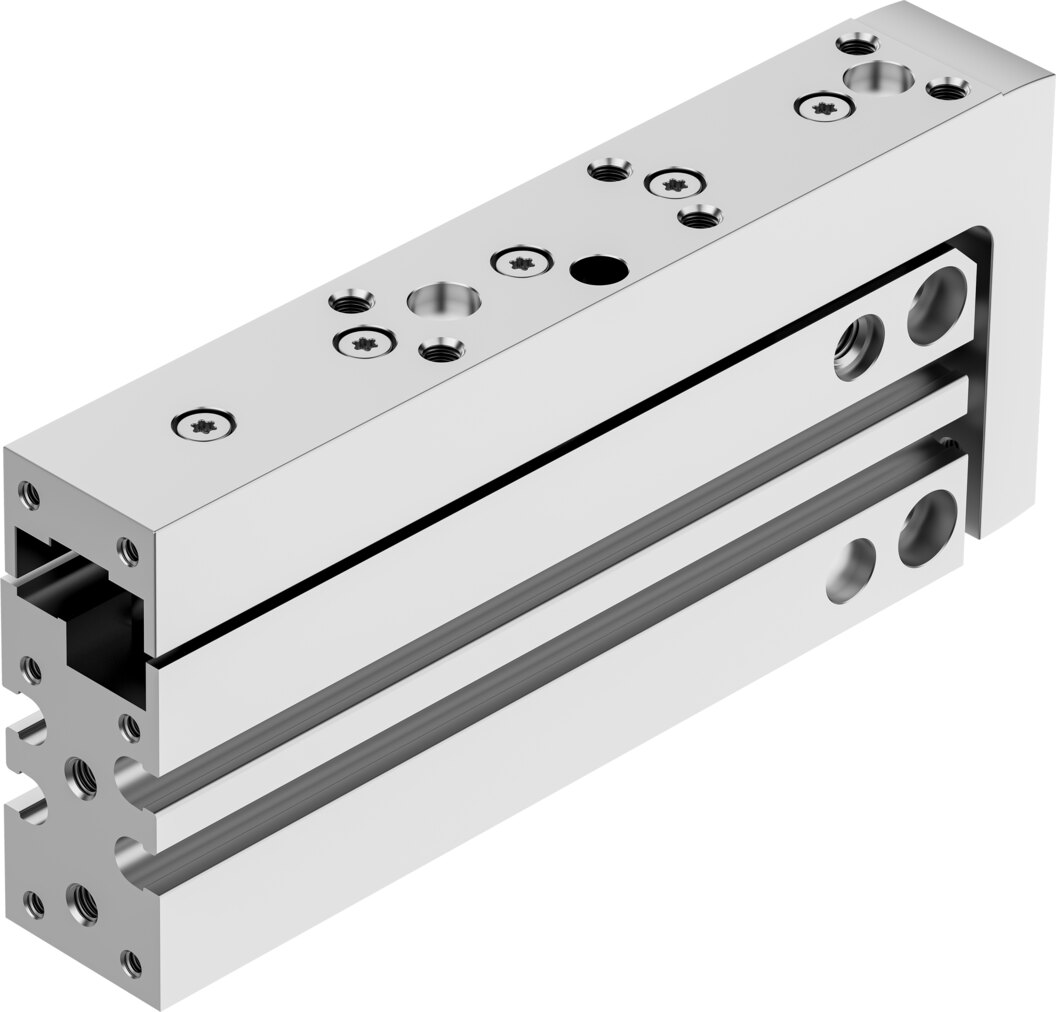

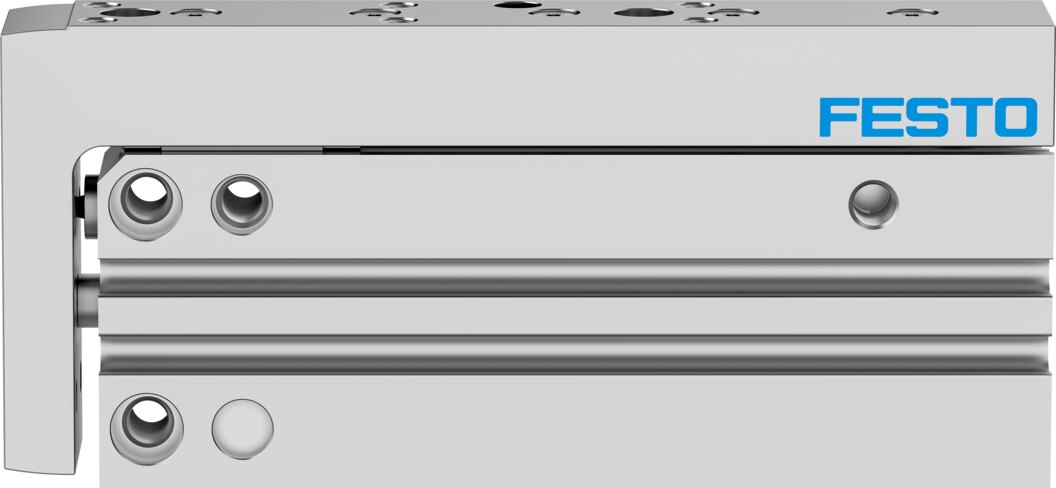

Double-acting mini slide piston Ø 6 mm stroke 50 mm DGSS-6-50-E1A - Festo 8164057

The mini slide DGSS-6-50-E1A makes a separate guide on the cylinder unnecessary. The recirculating ball bearing guide is built in, the stroke is 50 mm with a 6 mm piston.

Benefits

• Travel speed up to 0.5 m/s
• Theoretical force at 6 bar: 17 N advance, 13 N return
• Repetition accuracy ≤ 0.3 mm for reproducible end positions
• Cleanroom class 6 to ISO 14644-1, LABS conformity VDMA24364-C1-L
• Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
• Recirculating ball bearing guide for transverse forces up to 218 N and torques Mx 0.6 Nm, My 0.5 Nm, Mz 0.5 Nm

Applications

As a compact linear axis, the DGSS-6-50-E1A works in feeding technology and small parts assembly. Compressed air to ISO 8573-1:2010 [7:4:4], 1.5 to 8 bar, port M3. End positions can be sensed with proximity switches.
