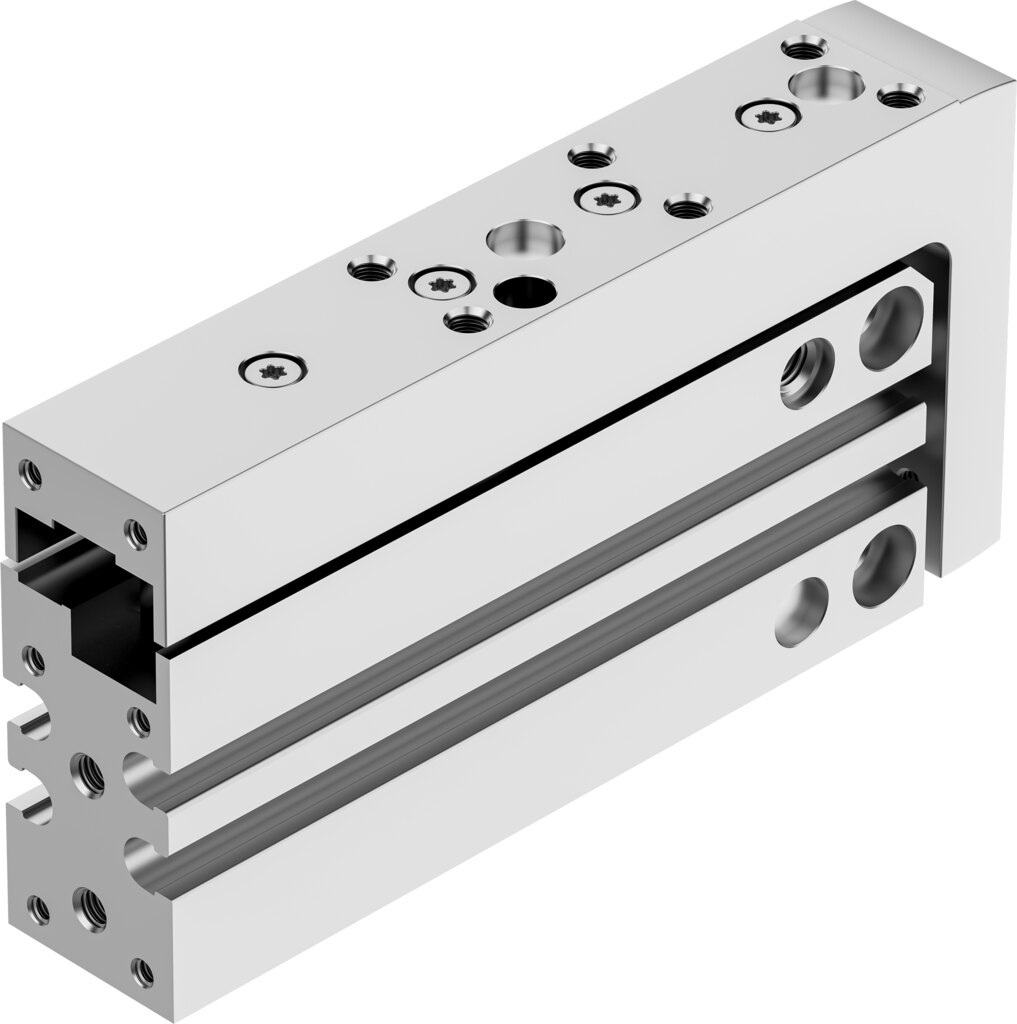

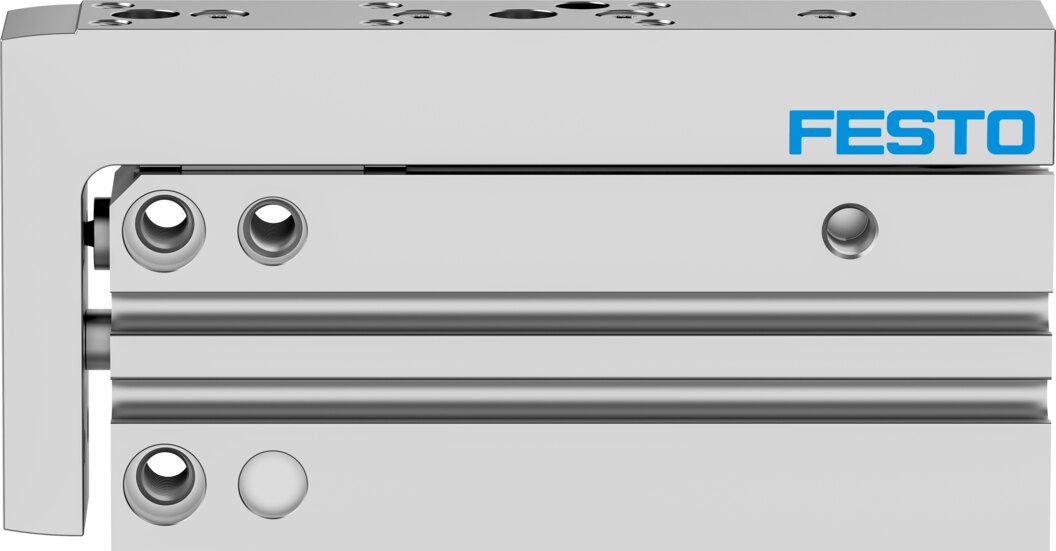

Double-acting mini slide piston Ø 6 mm stroke 40 mm DGSS-6-40-E1A - Festo 8164056

Festo ✓ Original product Brand new

The Festo DGSS-6-40-E1A mini slide moves attached parts over a 40 mm stroke and delivers 17 N on the advance stroke at 6 bar. The recirculating ball bearing guide absorbs transverse forces up to 235 N without loading the piston rod. End position cushioning: elastomer cushioning at both ends.

Net
€187.08
excl. VAT
Item FES-8164056
Manufacturer no. DGSS-6-40-E1A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

17 N on the advance stroke and 13 N on return at 6 bar, plus a 40 mm stroke: the Festo DGSS-6-40-E1A is a mini slide for handling axes in tight spaces.

Benefits

  • Repetition accuracy ≤ 0.3 mm for reproducible end positions
  • Recirculating ball bearing guide for transverse forces up to 235 N and torques Mx 0.6 Nm, My 0.6 Nm, Mz 0.6 Nm
  • End position cushioning: elastomer cushioning at both ends, permissible impact energy 0.01 J
  • Cleanroom class 6 to ISO 14644-1, LABS conformity VDMA24364-C1-L
  • Theoretical force at 6 bar: 17 N advance, 13 N return
  • Suitable for battery production with reduced Cu/Zn/Ni values (F1a)

Applications

Typical tasks are feeding, aligning and pick-and-place in assembly and test systems. Any mounting position is possible, mounting is with through-hole, with female thread, compressed air is supplied via M3. End positions can be sensed with proximity switches.

Technical data

TypeDGSS-6-40-E1A
SeriesFesto DGSS
Size6
Stroke40 mm
Piston diameter6 mm
Mode of operationDouble-acting
DesignYoke, piston rod, slide
GuideRecirculating ball bearing guide
CushioningElastomer cushioning, double-sided, stroke not adjustable
Cushioning length0.9 mm
Impact energy in end positions0.01 J
Maximum speed0.5 m/s
Repetition accuracy≤ 0.3 mm
Position detectionVia proximity switch
Mounting positionAny
Operating pressure1.5 to 8 bar
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (lubrication then always required)
Ambient temperature-10 to 60 °C
Corrosion resistance class CRC1 - Low corrosion stress
Cleanroom suitability to ISO 14644-14Class 6 to ISO 14644-1
LABS (PWIS) conformityVDMA24364-C1-L
Suitability for Li-ion battery productionSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Maximum force Fy235 N
Maximum force Fz235 N
Maximum moment Mx0.6 Nm
Maximum moment My0.6 Nm
Maximum moment Mz0.6 Nm
Theoretical force at 6 bar, advance stroke17 N
Theoretical force at 6 bar, return stroke13 N
Moving mass41 g
Product weight107 g
Pneumatic connectionM3
Type of mountingWith through-hole, with female thread
Material housingWrought aluminium alloy
Material coverWrought aluminium alloy
Material piston rodHigh-alloy stainless steel
Material guideNBR, PA, high-alloy steel
Material sealsNBR, PU
Note on materialsRoHS compliant
Festo part number8164056
HS code84123100
Weight0.11 kg
ManufacturerFesto
Hersteller-NrDGSS-6-40-E1A
EAN4052568632205
Zolltarifnummer84123100
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM3
Piston Ø [mm]6
Stroke [mm]40
Seal materialNBR, PU
Housing materialAluminium
MediumCompressed air
Functiondouble-acting
Bore (mm)6
Betriebsdruck max [bar]8
Temperaturbereich-10-60 °C
Temperature (max.)60
