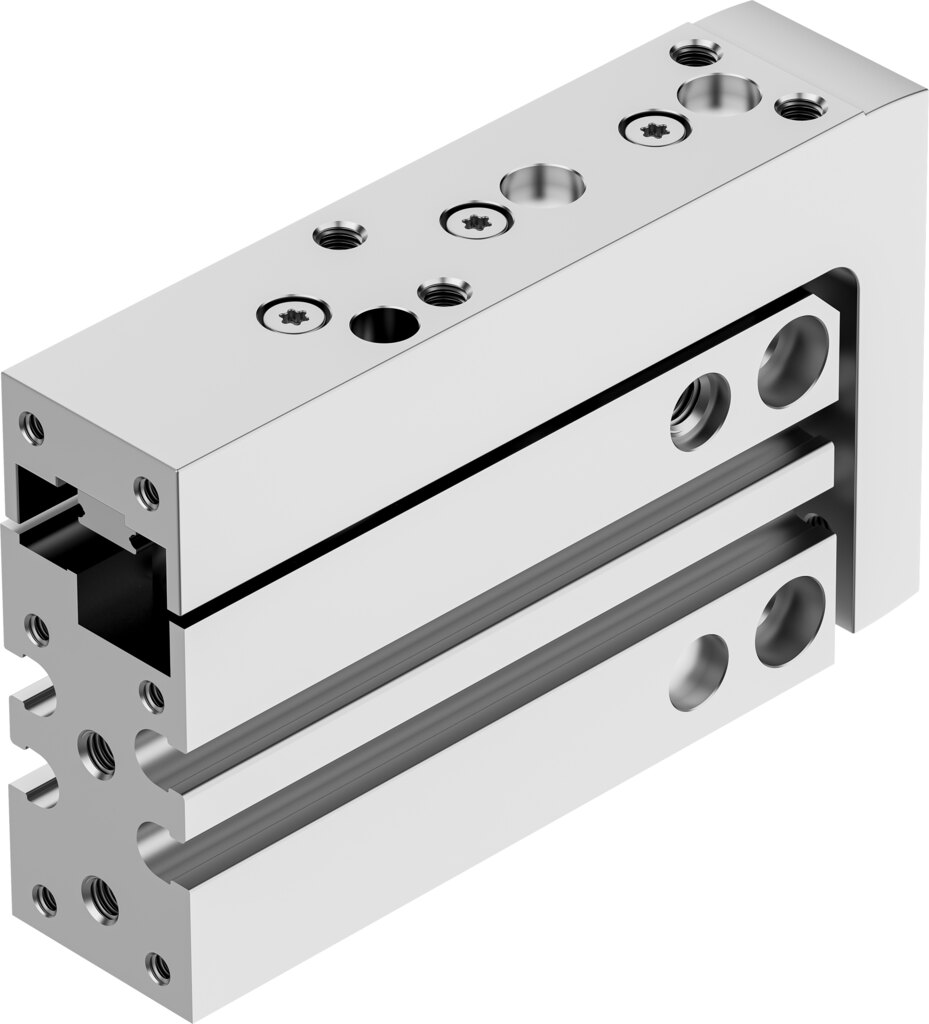

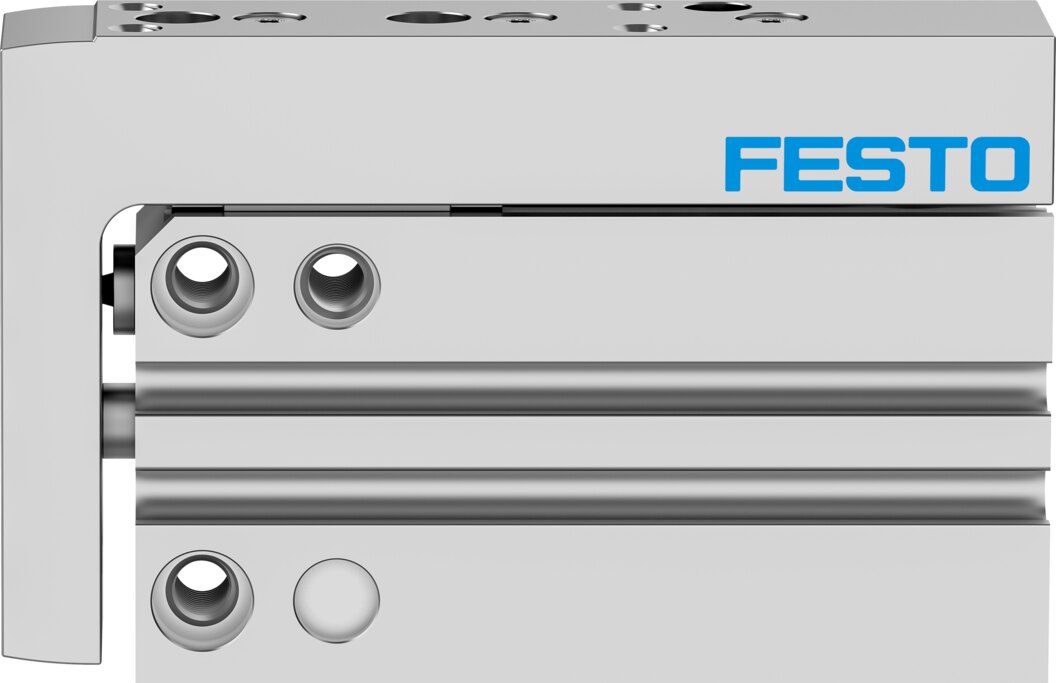

Double-acting mini slide piston Ø 6 mm stroke 25 mm DGSS-6-25-E1A - Festo 8164054

The mini slide DGSS-6-25-E1A makes a separate guide on the cylinder unnecessary. The recirculating ball bearing guide is built in, the stroke is 25 mm with a 6 mm piston.

Benefits

• Theoretical force at 6 bar: 17 N advance, 13 N return
• Travel speed up to 0.5 m/s
• Recirculating ball bearing guide for transverse forces up to 274 N and torques Mx 0.7 Nm, My 0.6 Nm, Mz 0.6 Nm
• Cleanroom class 6 to ISO 14644-1, LABS conformity VDMA24364-C1-L
• End position cushioning: elastomer cushioning at both ends, permissible impact energy 0.01 J
• Suitable for battery production with reduced Cu/Zn/Ni values (F1a)

Applications

The slide is used in placement, assembly and packaging systems where short strokes with high guide accuracy are needed. Mounting with through-hole, with female thread, any mounting position. End positions can be sensed with proximity switches.
