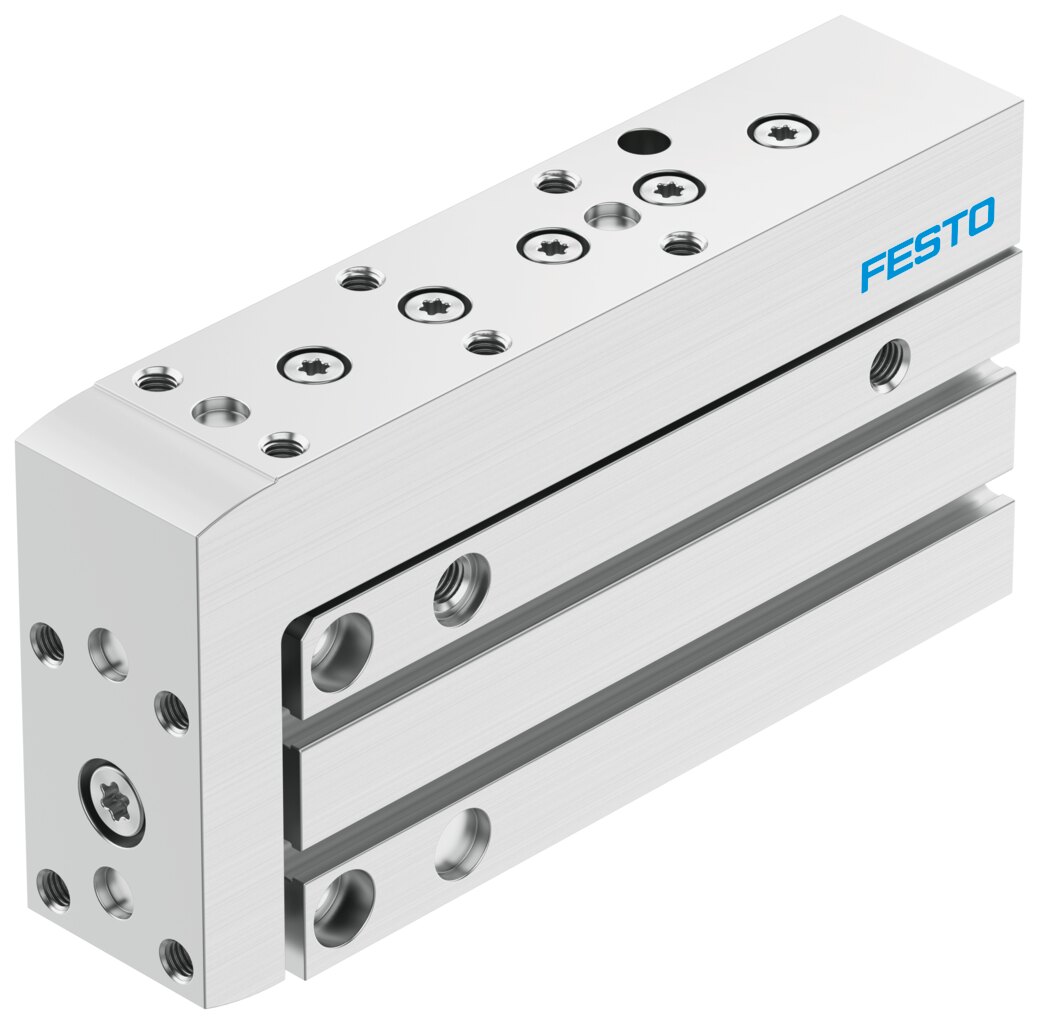

Double-acting mini slide piston Ø 16 mm stroke 25 mm DGSS-16-25-E1A - Festo 8164072

Festo ✓ Original product Brand new

Piston Ø 16 mm, stroke 25 mm: the DGSS-16-25-E1A is a double-acting mini slide with an integrated guide. The recirculating ball bearing guide takes transverse forces up to 859 N and torques up to 4 Nm. It is suitable for cleanroom class 6 to ISO 14644-1 and for battery production (F1a).

Net
€224.00
excl. VAT
Item FES-8164072
Manufacturer no. DGSS-16-25-E1A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Where small loads have to be moved precisely along a guide, the mini slide DGSS-16-25-E1A is the right unit: 25 mm stroke, piston Ø 16 mm and 121 N advance force at 6 bar, combined with a recirculating ball bearing guide.

Benefits

  • End position cushioning: elastomer cushioning at both ends, permissible impact energy 0.03 J
  • Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
  • Theoretical force at 6 bar: 121 N advance, 104 N return
  • Travel speed up to 0.5 m/s
  • Cleanroom class 6 to ISO 14644-1, LABS conformity VDMA24364-C1-L
  • Recirculating ball bearing guide for transverse forces up to 859 N and torques Mx 4 Nm, My 2.4 Nm, Mz 2.4 Nm

Applications

The DGSS-16-25-E1A works as a lifting or transverse axis in handling systems, also in combination with grippers. Port M5, operation at 1 to 8 bar and -10 to 60 °C ambient temperature. End positions can be sensed with proximity switches.

Technical data

TypeDGSS-16-25-E1A
SeriesFesto DGSS
Size16
Stroke25 mm
Piston diameter16 mm
Mode of operationDouble-acting
DesignYoke, piston rod, slide
GuideRecirculating ball bearing guide
CushioningElastomer cushioning, double-sided, stroke not adjustable
Cushioning length0.65 mm
Impact energy in end positions0.03 J
Maximum speed0.5 m/s
Repetition accuracy≤ 0.3 mm
Position detectionVia proximity switch
Mounting positionAny
Operating pressure1 to 8 bar
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (lubrication then always required)
Ambient temperature-10 to 60 °C
Corrosion resistance class CRC1 - Low corrosion stress
Cleanroom suitability to ISO 14644-14Class 6 to ISO 14644-1
LABS (PWIS) conformityVDMA24364-C1-L
Suitability for Li-ion battery productionSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Maximum force Fy859 N
Maximum force Fz859 N
Maximum moment Mx4 Nm
Maximum moment My2.4 Nm
Maximum moment Mz2.4 Nm
Theoretical force at 6 bar, advance stroke121 N
Theoretical force at 6 bar, return stroke104 N
Moving mass109 g
Product weight241 g
Pneumatic connectionM5
Type of mountingWith through-hole, with female thread
Material housingWrought aluminium alloy
Material coverWrought aluminium alloy
Material piston rodHigh-alloy stainless steel
Material guideNBR, PA, high-alloy steel
Material sealsNBR, PU
Note on materialsRoHS compliant
Festo part number8164072
HS code84123100
Weight0.25 kg
ManufacturerFesto
Hersteller-NrDGSS-16-25-E1A
EAN4052568620073
Zolltarifnummer84123100
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM5
Piston Ø [mm]16
Stroke [mm]25
Seal materialNBR, PU
Housing materialAluminium
MediumCompressed air
Functiondouble-acting
Bore (mm)16
Betriebsdruck max [bar]8
Temperaturbereich-10-60 °C
Temperature (max.)60
