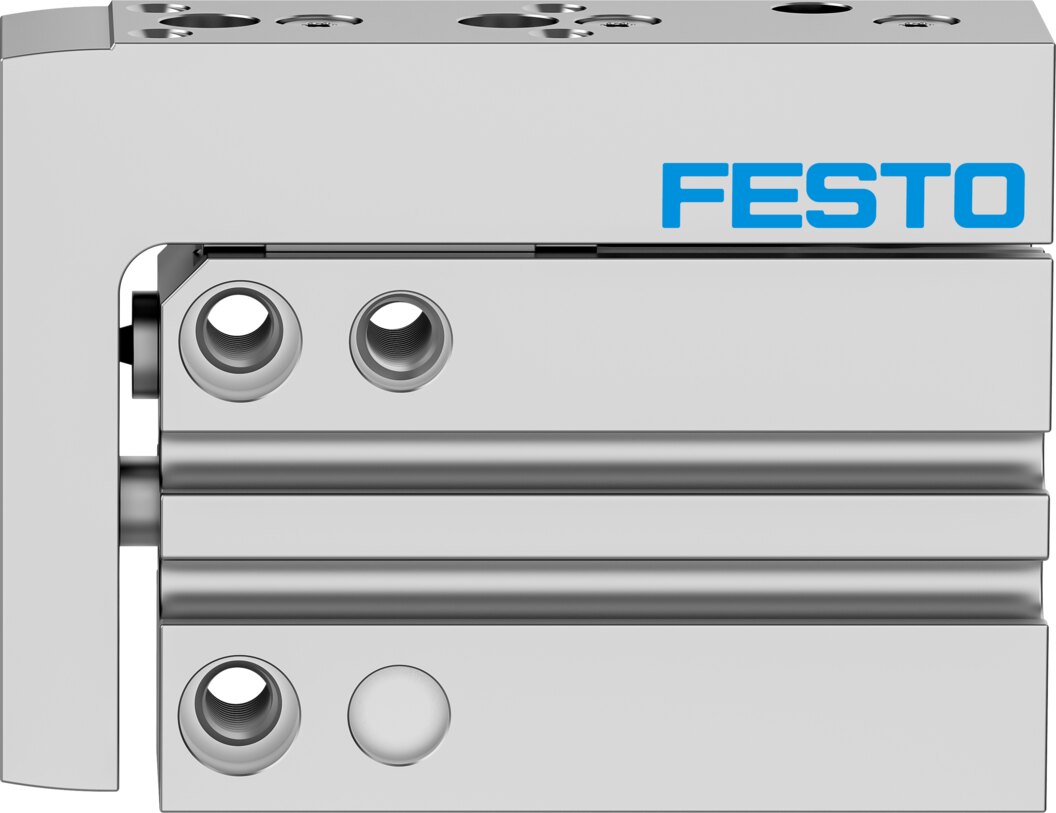

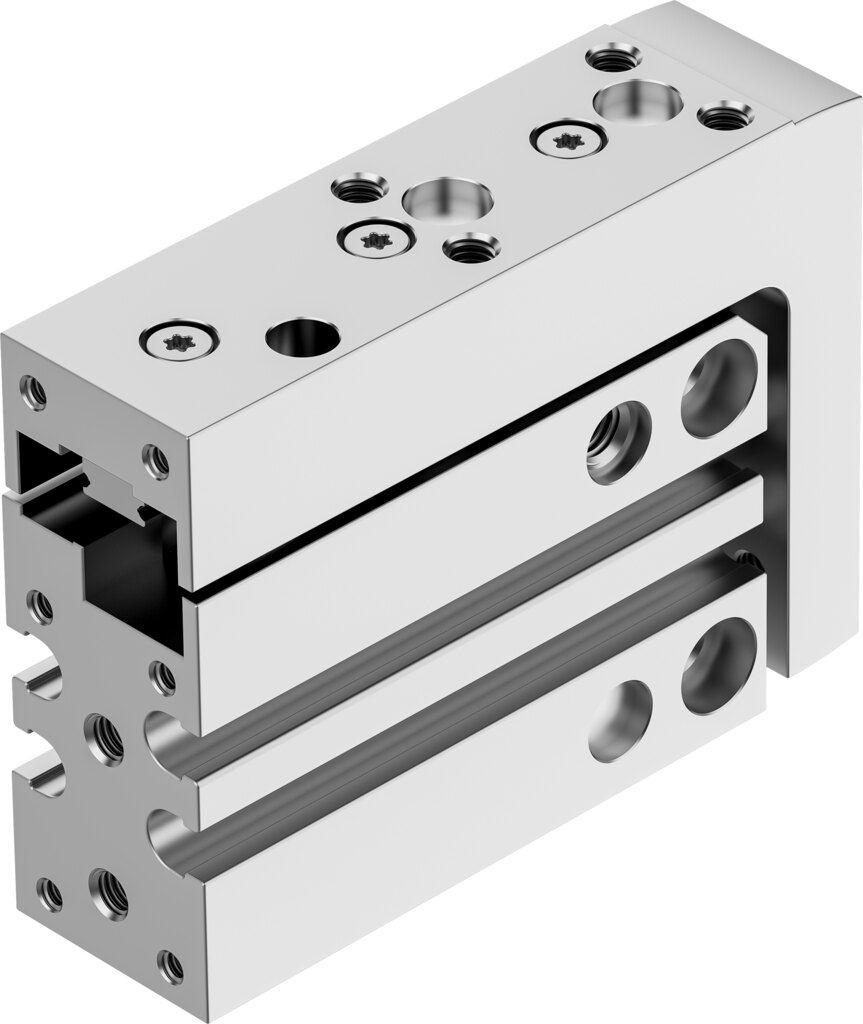

Double-acting mini slide piston Ø 6 mm stroke 15 mm DGSS-6-15-E1A - Festo 8164052

Festo ✓ Original product Brand new

Piston Ø 6 mm, stroke 15 mm: the DGSS-6-15-E1A is a double-acting mini slide with an integrated guide. The recirculating ball bearing guide takes transverse forces up to 296 N and torques up to 0.8 Nm. It is suitable for cleanroom class 6 to ISO 14644-1 and for battery production (F1a).

Net
€165.89
excl. VAT
Item FES-8164052
Manufacturer no. DGSS-6-15-E1A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

17 N on the advance stroke and 13 N on return at 6 bar, plus a 15 mm stroke: the Festo DGSS-6-15-E1A is a mini slide for handling axes in tight spaces.

Benefits

  • Recirculating ball bearing guide for transverse forces up to 296 N and torques Mx 0.8 Nm, My 0.7 Nm, Mz 0.7 Nm
  • Repetition accuracy ≤ 0.3 mm for reproducible end positions
  • End position cushioning: elastomer cushioning at both ends, permissible impact energy 0.01 J
  • Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
  • Theoretical force at 6 bar: 17 N advance, 13 N return
  • Cleanroom class 6 to ISO 14644-1, LABS conformity VDMA24364-C1-L

Applications

Typical tasks are feeding, aligning and pick-and-place in assembly and test systems. Any mounting position is possible, mounting is with through-hole, with female thread, compressed air is supplied via M3. End positions can be sensed with proximity switches.

Technical data

TypeDGSS-6-15-E1A
SeriesFesto DGSS
Size6
Stroke15 mm
Piston diameter6 mm
Mode of operationDouble-acting
DesignYoke, piston rod, slide
GuideRecirculating ball bearing guide
CushioningElastomer cushioning, double-sided, stroke not adjustable
Cushioning length0.9 mm
Impact energy in end positions0.01 J
Maximum speed0.5 m/s
Repetition accuracy≤ 0.3 mm
Position detectionVia proximity switch
Mounting positionAny
Operating pressure1.5 to 8 bar
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (lubrication then always required)
Ambient temperature-10 to 60 °C
Corrosion resistance class CRC1 - Low corrosion stress
Cleanroom suitability to ISO 14644-14Class 6 to ISO 14644-1
LABS (PWIS) conformityVDMA24364-C1-L
Suitability for Li-ion battery productionSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Maximum force Fy296 N
Maximum force Fz296 N
Maximum moment Mx0.8 Nm
Maximum moment My0.7 Nm
Maximum moment Mz0.7 Nm
Theoretical force at 6 bar, advance stroke17 N
Theoretical force at 6 bar, return stroke13 N
Moving mass31 g
Product weight75 g
Pneumatic connectionM3
Type of mountingWith through-hole, with female thread
Material housingWrought aluminium alloy
Material coverWrought aluminium alloy
Material piston rodHigh-alloy stainless steel
Material guideNBR, PA, high-alloy steel
Material sealsNBR, PU
Note on materialsRoHS compliant
Festo part number8164052
HS code84123100
ManufacturerFesto
Hersteller-NrDGSS-6-15-E1A
EAN4052568632069
Zolltarifnummer84123100
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM3
Piston Ø [mm]6
Stroke [mm]15
Seal materialNBR, PU
Housing materialAluminium
MediumCompressed air
Functiondouble-acting
Bore (mm)6
Betriebsdruck max [bar]8
Temperaturbereich-10-60 °C
Temperature (max.)60
