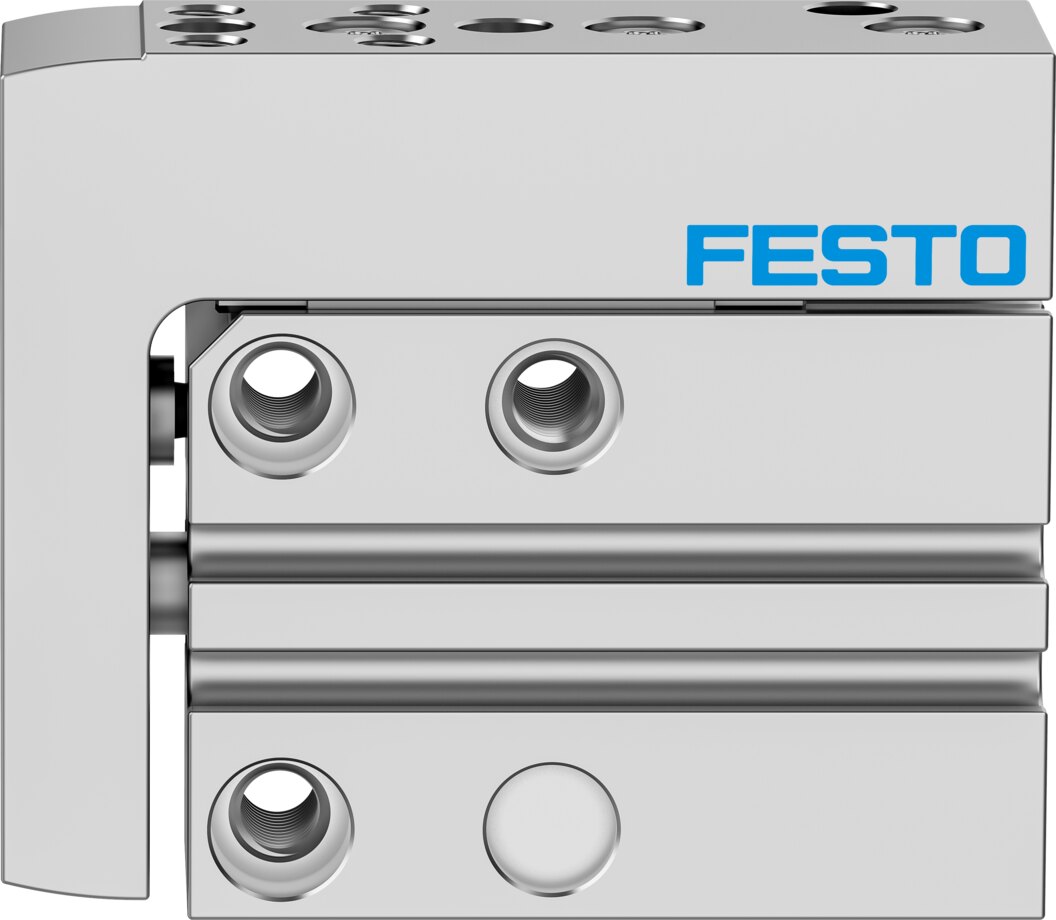

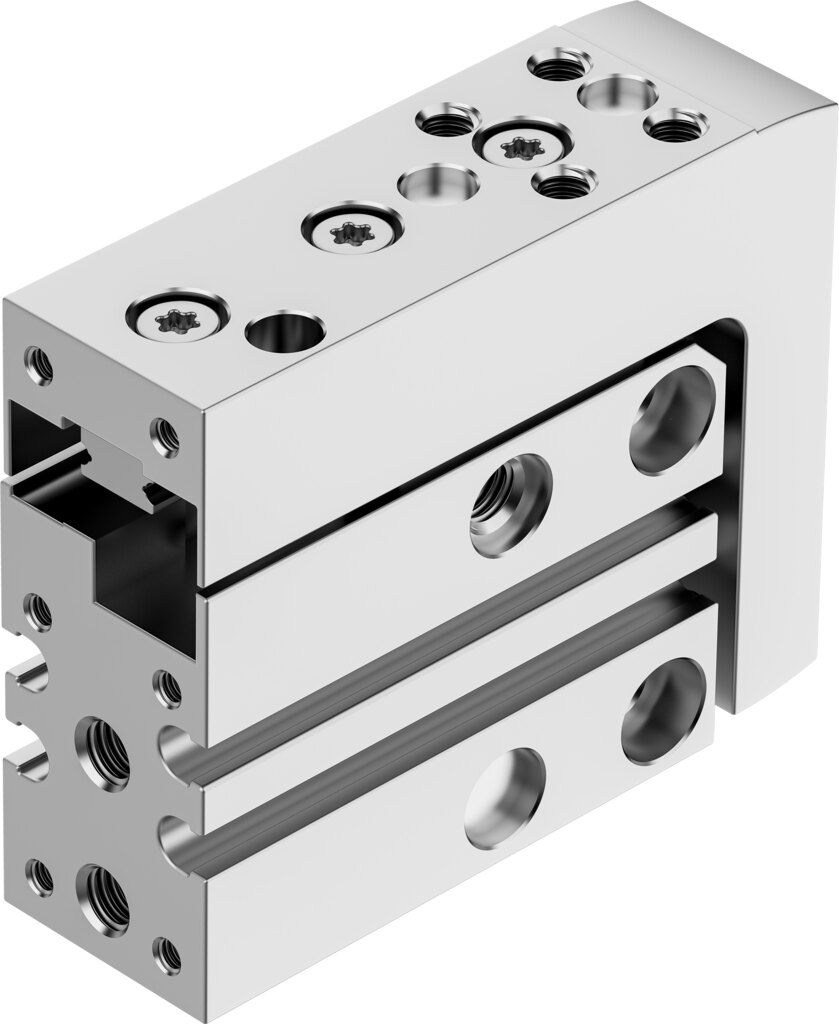

Mini slide DGSS-10-10-E1A - Festo 8164060
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Stroke | 10 mm |
|---|---|
| Size | 10 |
| Piston diameter | 10 mm |
| Cushioning | Elastomer cushioning, double-sided, stroke not adjustable |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | Yoke, Piston rod, Slide |
| Position detection | Via proximity switch |
| Operating pressure | 1 ... 8 bar |
| Max. speed | 0.5 m/s |
| Repetition accuracy | <= 0.3 mm |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-C1-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 6 according to ISO 14644-1 |
| Ambient temperature | -10 ... 60 °C |
| Impact energy in end positions | 0.018 J |
| Cushioning length | 1.5 mm |
| Max. force Fy | 826 N |
| Max. force Fz | 826 N |
| Max. moment Mx | 3 Nm |
| Max. moment My | 2.6 Nm |
| Max. moment Mz | 2.6 Nm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 39 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 47 N |
| Moving mass | 56 g |
| Product weight | 124 g |
| Type of mounting | With through-hole, With female thread |
| Pneumatic connection | M5 |
| Note on materials | RoHS compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR, PU |
| Material guide | NBR, PA, High-alloy steel |
| Material housing | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Weight | 0.135 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DGSS-10-10-E1A |
| EAN | 4052568632243 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
