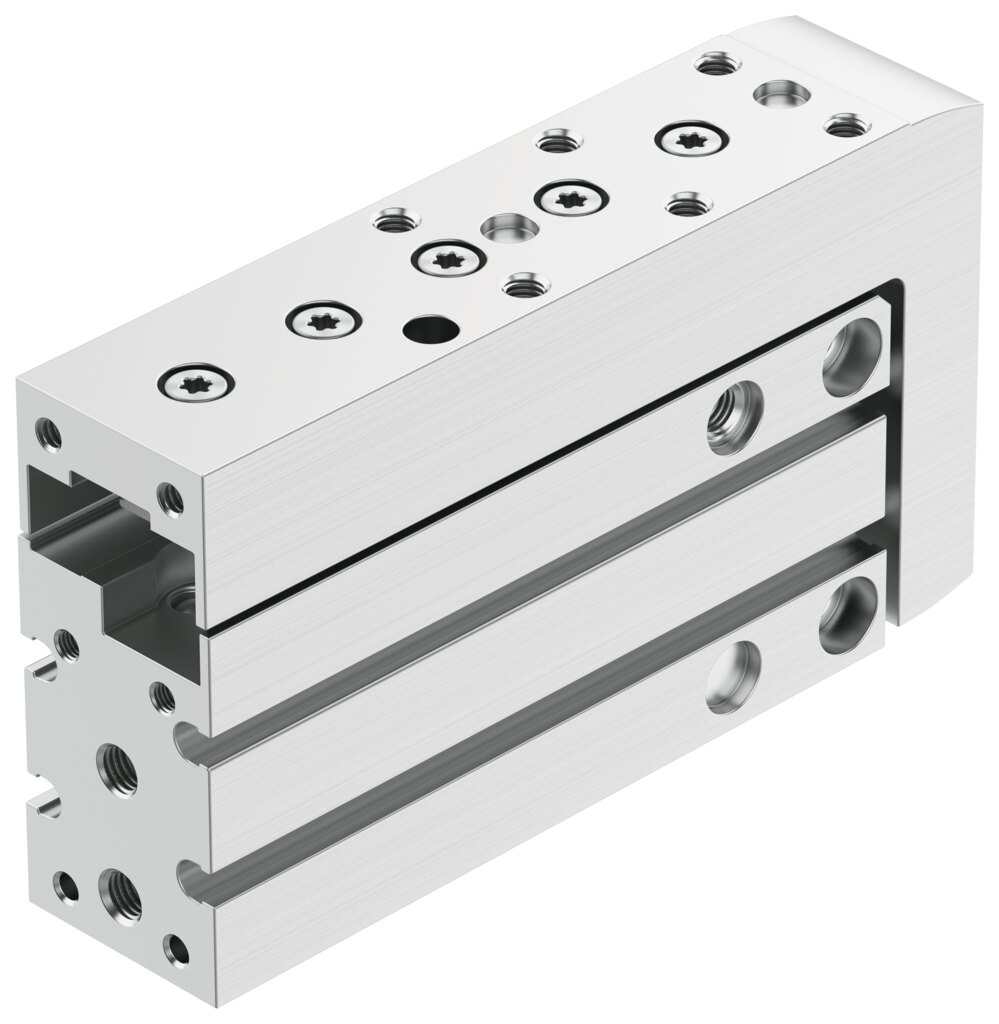

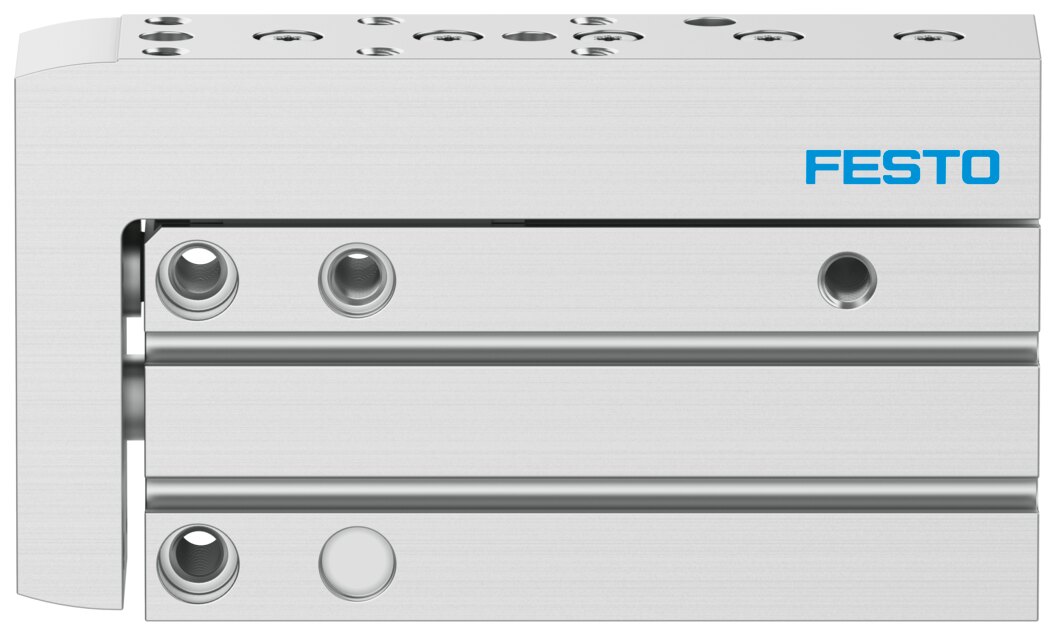

Double-acting mini slide piston Ø 16 mm stroke 40 mm DGSS-16-40-E1A - Festo 8164074

Festo ✓ Original product Brand new

The Festo DGSS-16-40-E1A mini slide moves attached parts over a 40 mm stroke and delivers 121 N on the advance stroke at 6 bar. Its recirculating ball bearing guide carries up to 734 N transverse load. End position cushioning: elastomer cushioning at both ends.

Net
€242.11
excl. VAT
Item FES-8164074
Manufacturer no. DGSS-16-40-E1A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

121 N on the advance stroke and 104 N on return at 6 bar, plus a 40 mm stroke: the Festo DGSS-16-40-E1A is a mini slide for handling axes in tight spaces.

Benefits

  • Cleanroom class 6 to ISO 14644-1, LABS conformity VDMA24364-C1-L
  • Theoretical force at 6 bar: 121 N advance, 104 N return
  • Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
  • Recirculating ball bearing guide for transverse forces up to 734 N and torques Mx 3.5 Nm, My 2.1 Nm, Mz 2.1 Nm
  • End position cushioning: elastomer cushioning at both ends, permissible impact energy 0.03 J
  • Repetition accuracy ≤ 0.3 mm for reproducible end positions

Applications

The DGSS-16-40-E1A works as a lifting or transverse axis in handling systems, also in combination with grippers. Port M5, operation at 1 to 8 bar and -10 to 60 °C ambient temperature. End positions can be sensed with proximity switches.

Technical data

TypeDGSS-16-40-E1A
SeriesFesto DGSS
Size16
Stroke40 mm
Piston diameter16 mm
Mode of operationDouble-acting
DesignYoke, piston rod, slide
GuideRecirculating ball bearing guide
CushioningElastomer cushioning, double-sided, stroke not adjustable
Cushioning length0.65 mm
Impact energy in end positions0.03 J
Maximum speed0.5 m/s
Repetition accuracy≤ 0.3 mm
Position detectionVia proximity switch
Mounting positionAny
Operating pressure1 to 8 bar
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (lubrication then always required)
Ambient temperature-10 to 60 °C
Corrosion resistance class CRC1 - Low corrosion stress
Cleanroom suitability to ISO 14644-14Class 6 to ISO 14644-1
LABS (PWIS) conformityVDMA24364-C1-L
Suitability for Li-ion battery productionSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Maximum force Fy734 N
Maximum force Fz734 N
Maximum moment Mx3.5 Nm
Maximum moment My2.1 Nm
Maximum moment Mz2.1 Nm
Theoretical force at 6 bar, advance stroke121 N
Theoretical force at 6 bar, return stroke104 N
Moving mass125 g
Product weight279 g
Pneumatic connectionM5
Type of mountingWith through-hole, with female thread
Material housingWrought aluminium alloy
Material coverWrought aluminium alloy
Material piston rodHigh-alloy stainless steel
Material guideNBR, PA, high-alloy steel
Material sealsNBR, PU
Note on materialsRoHS compliant
Festo part number8164074
HS code84123100
Weight0.29 kg
ManufacturerFesto
Hersteller-NrDGSS-16-40-E1A
EAN4052568620097
Zolltarifnummer84123100
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM5
Piston Ø [mm]16
Stroke [mm]40
Seal materialNBR, PU
Housing materialAluminium
MediumCompressed air
Functiondouble-acting
Bore (mm)16
Betriebsdruck max [bar]8
Temperaturbereich-10-60 °C
Temperature (max.)60
