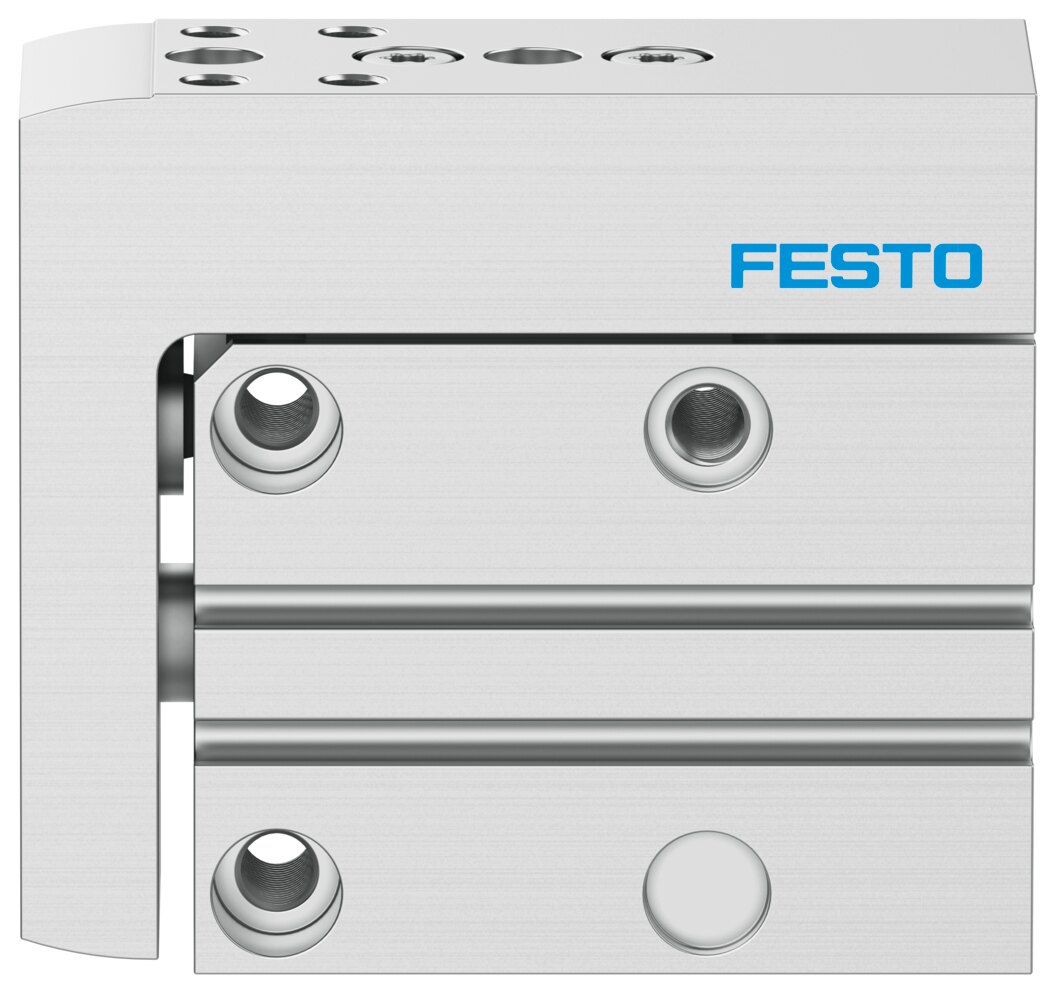

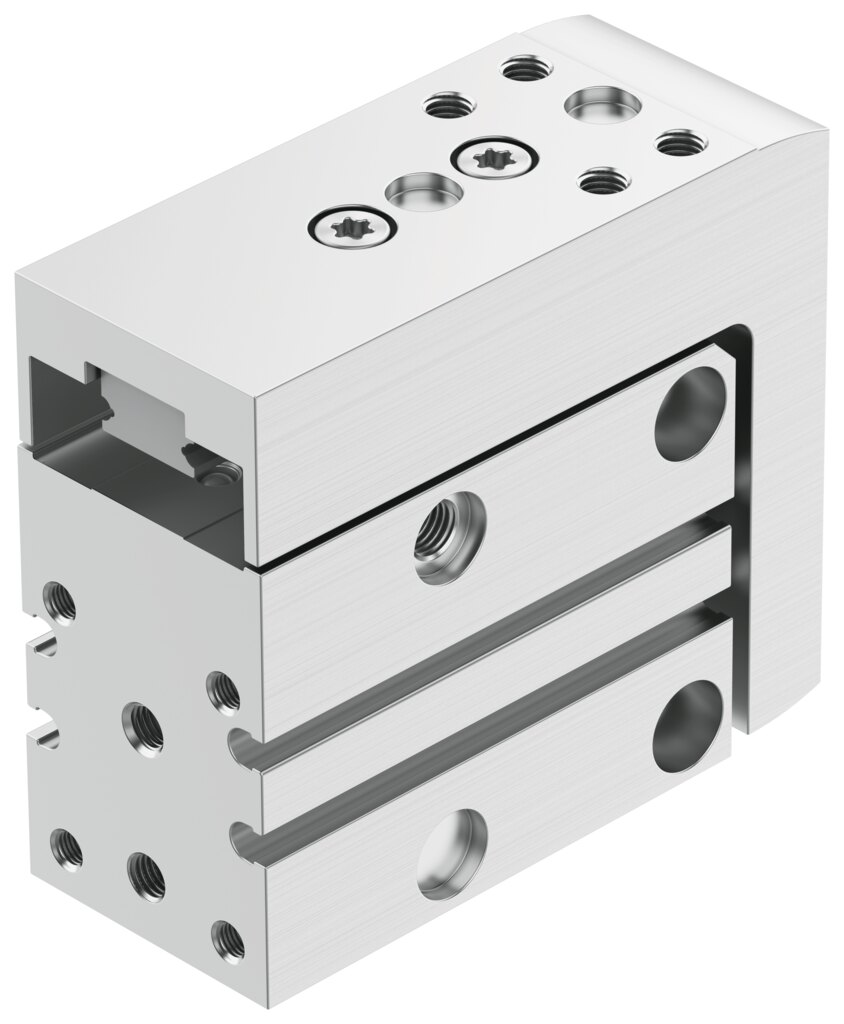

Double-acting mini slide piston Ø 20 mm stroke 5 mm DGSS-20-5-E1A - Festo 8164077

Festo ✓ Original product Brand new

For guided strokes of 5 mm, the Festo DGSS-20-5-E1A produces 188 N forward and 158 N on return at 6 bar. The recirculating ball bearing guide takes transverse forces up to 1560 N and torques up to 10.1 Nm. It is suitable for cleanroom class 6 to ISO 14644-1 and for battery production (F1a).

Net
€224.02
excl. VAT
Item FES-8164077
Manufacturer no. DGSS-20-5-E1A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The double-acting mini slide DGSS-20-5-E1A from the Festo DGSS series combines drive and guide: the slide travels 5 mm and takes transverse forces of up to 1560 N.

Benefits

  • Travel speed up to 0.5 m/s
  • Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
  • End position cushioning: elastomer cushioning at both ends, permissible impact energy 0.05 J
  • Repetition accuracy ≤ 0.3 mm for reproducible end positions
  • Cleanroom class 6 to ISO 14644-1, LABS conformity VDMA24364-C1-L
  • Theoretical force at 6 bar: 188 N advance, 158 N return

Applications

Typical tasks are feeding, aligning and pick-and-place in assembly and test systems. Any mounting position is possible, mounting is with through-hole, with female thread, compressed air is supplied via M5. End positions can be sensed with proximity switches.

Technical data

TypeDGSS-20-5-E1A
SeriesFesto DGSS
Size20
Stroke5 mm
Piston diameter20 mm
Mode of operationDouble-acting
DesignYoke, piston rod, slide
GuideRecirculating ball bearing guide
CushioningElastomer cushioning, double-sided, stroke not adjustable
Cushioning length1 mm
Impact energy in end positions0.05 J
Maximum speed0.5 m/s
Repetition accuracy≤ 0.3 mm
Position detectionVia proximity switch
Mounting positionAny
Operating pressure1 to 8 bar
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (lubrication then always required)
Ambient temperature-10 to 60 °C
Corrosion resistance class CRC1 - Low corrosion stress
Cleanroom suitability to ISO 14644-14Class 6 to ISO 14644-1
LABS (PWIS) conformityVDMA24364-C1-L
Suitability for Li-ion battery productionSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Maximum force Fy1560 N
Maximum force Fz1560 N
Maximum moment Mx10.1 Nm
Maximum moment My5.1 Nm
Maximum moment Mz5.1 Nm
Theoretical force at 6 bar, advance stroke188 N
Theoretical force at 6 bar, return stroke158 N
Moving mass156 g
Product weight379 g
Pneumatic connectionM5
Type of mountingWith through-hole, with female thread
Material housingWrought aluminium alloy
Material coverWrought aluminium alloy
Material piston rodHigh-alloy stainless steel
Material guideNBR, PA, high-alloy steel
Material sealsNBR, PU
Note on materialsRoHS compliant
Festo part number8164077
HS code84123100
Weight0.4 kg
ManufacturerFesto
Hersteller-NrDGSS-20-5-E1A
EAN4052568620325
Zolltarifnummer84123100
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM5
Piston Ø [mm]20
Stroke [mm]5
Seal materialNBR, PU
Housing materialAluminium
MediumCompressed air
Functiondouble-acting
Bore (mm)20
Betriebsdruck max [bar]8
Temperaturbereich-10-60 °C
Temperature (max.)60
