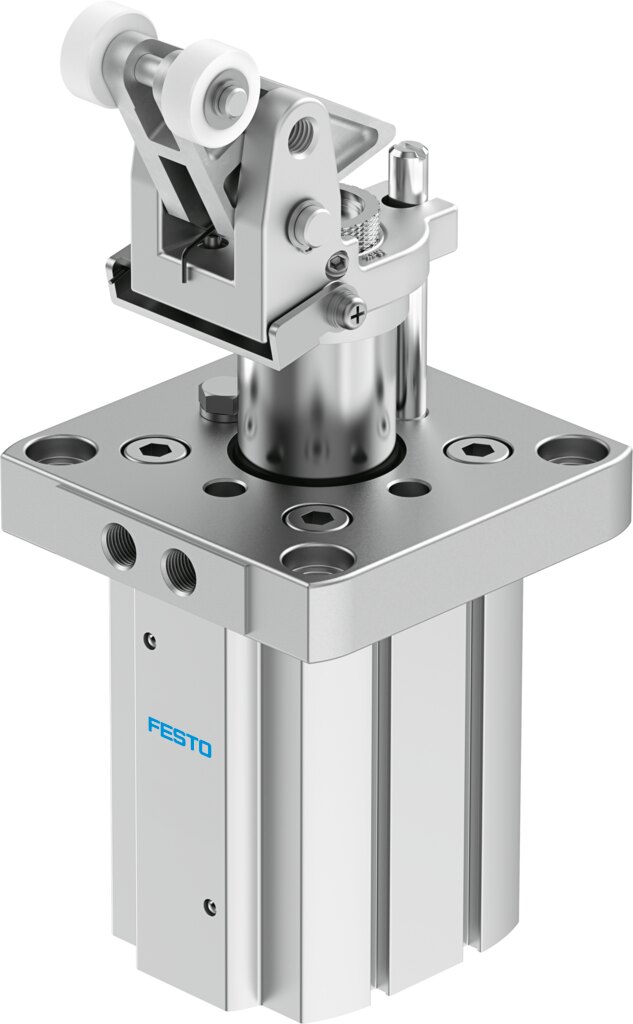

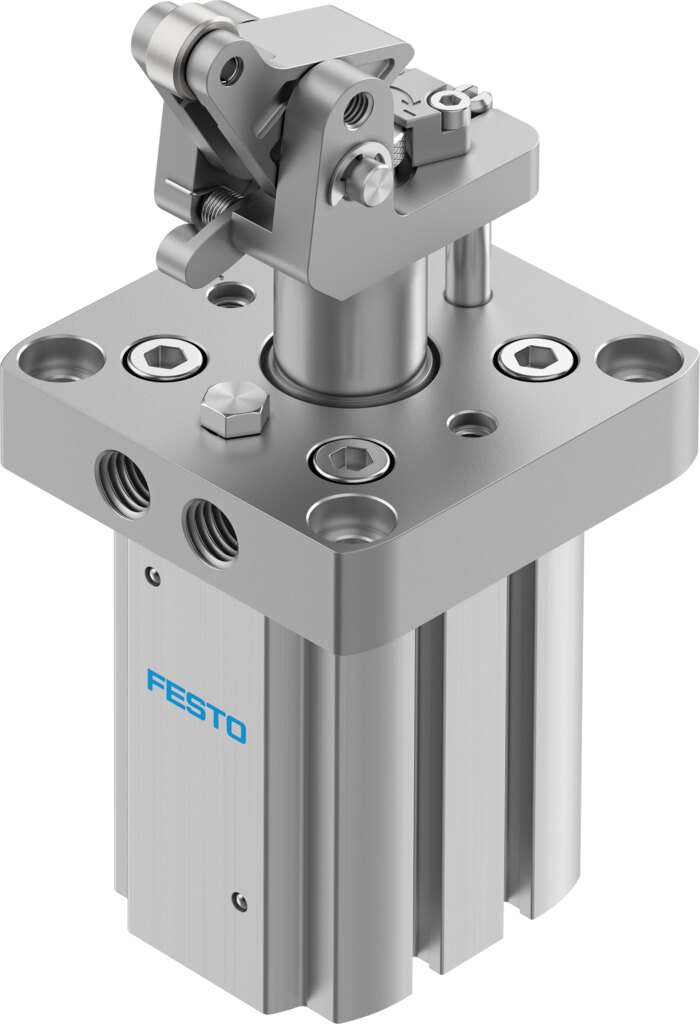

Images are examples, some edited with AI. The technical data are authoritative. AI notice
Stopper cylinder DFST-50-30-Y4-A-S-G2 - Festo 8090409
Net
excl. VAT
€405.09
Item
FES-8090409
Manufacturer no.
DFST-50-30-Y4-A-S-G2
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Stroke | 30 mm |
|---|---|
| Piston diameter | 50 mm |
| Cushioning | Elastic cushioning rings/plates at both ends, Shock absorber, adjustable, at front |
| Mounting position | Vertical |
| Mode of operation | Double-acting, Pulling |
| Design | Piston rod with toggle lever |
| Position detection | Via proximity switch |
| Sensing the toggle lever position | For inductive sensors |
| Protection against torque/guide | Guide rod |
| Operating pressure | 2 ... 10 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Ambient temperature | 5 ... 60 °C |
| Cushioning length | 15 mm |
| Impact force | 3000 N |
| Product weight | 1900 g |
| Type of mounting | With through-hole |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS compliant |
| Material cover | Die-cast aluminium |
| Material seals | NBR |
| Material housing | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Material roll | Steel |
| Weight | 2.1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DFST-50-30-Y4-A-S-G2 |
| EAN | 4052568456528 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
