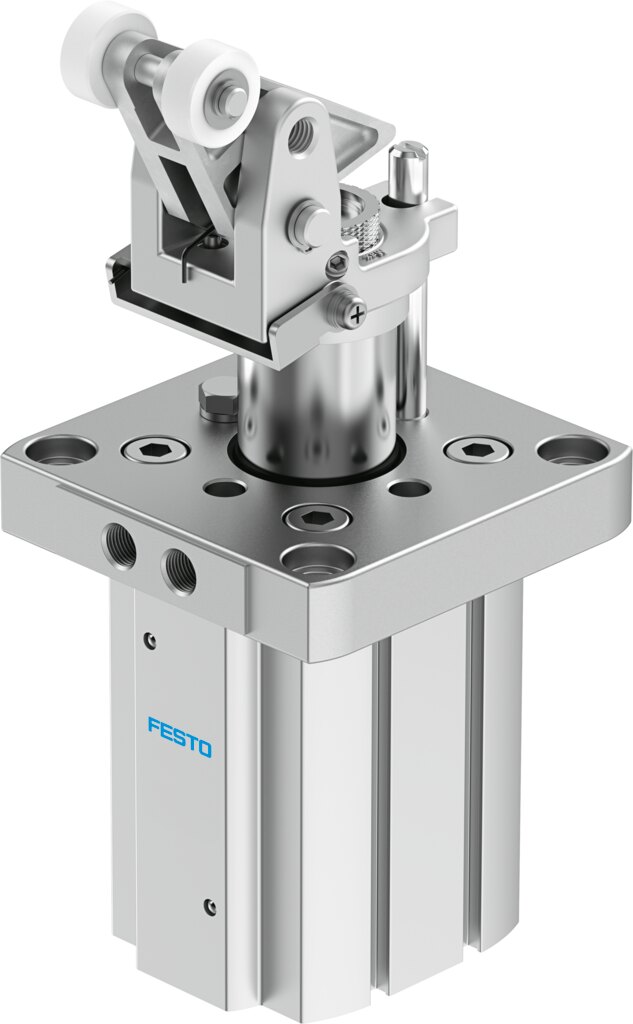

Stopper cylinder with toggle lever, double-acting, Ø 63 mm, stroke 30 mm DFST-63-30-D-Y4-A-G2 - Festo 8085908

The stopper cylinder with toggle lever DFST-63-30-D-Y4-A-G2 blocks conveyor lines at a defined point and separates workpiece carriers, rated for 5000 N impact force. The DFST-63-30-D-Y4-A-G2 operates double-acting, the operating pressure range is 2 to 10 bar.

Benefits

• Impact force on the extended piston rod up to 5000 N
• Toggle lever with shock absorber adjustable at the front, cushioning length 15 mm, toggle lever position can be sensed by inductive sensors
• Operating pressure 2 to 10 bar, mounting position vertical
• Piston rod in high-alloy stainless steel, CRC 1
• Position sensing via proximity switches, air connection G1/8

Applications

Typical locations are assembly lines, transfer systems and test stations where workpiece carriers are stopped reliably with a 63 mm piston. The DFST-63-30-D-Y4-A-G2 is installed in vertical position, ambient temperature 5 to 60 °C. PWIS conformity to VDMA 24364-Zone III.
