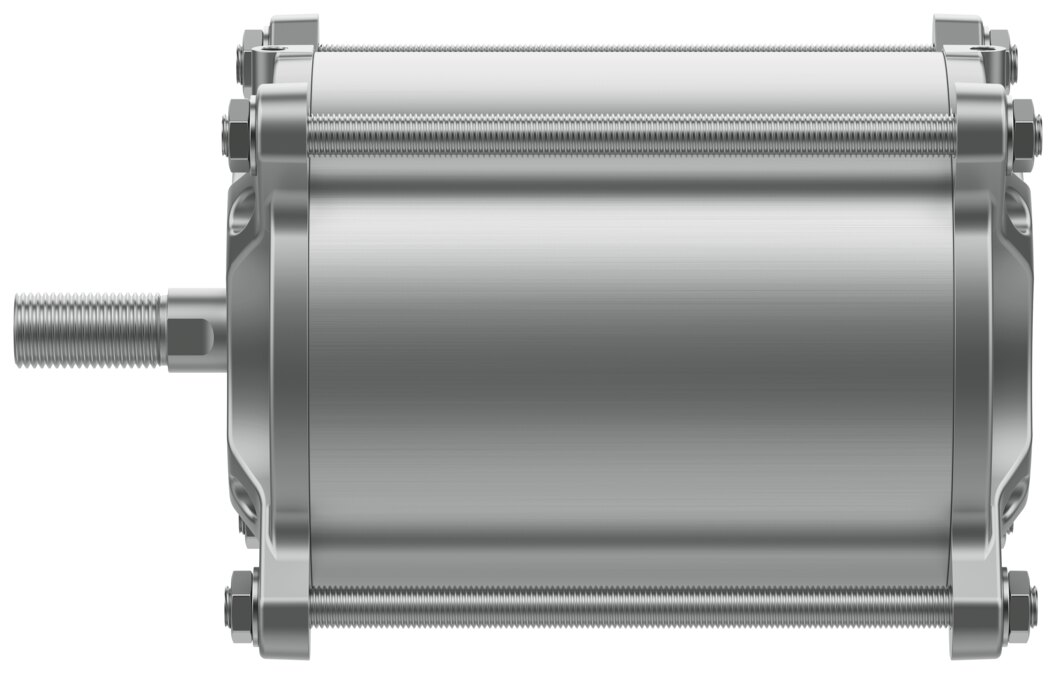

Linear actuator for process valves Ø 250 mm stroke 300 mm ATEX DFPC-250-300-D-V4EX4-45E-45S-M24P-W2 - Festo 8172155

The linear actuator DFPC-250-300-D-V4EX4-45E-45S-M24P-W2 operates linear process valves and pushes with 29452 N at 6 bar. It mounts directly on the valve via a flange to ISO 5210 with hole pattern F10, F14, the stroke is 300 mm.

Benefits

• Theoretical force at 6 bar: 29452 N advance, 28698 N return
• Mounts directly on the valve via flange to ISO 5210, hole pattern F10, F14
• For hazardous areas: ATEX II 2G and II 2D, type of protection Ex h IIC T4 Gb
• Elastic cushioning rings at both ends (P), permissible impact energy 6 J
• Prepared for proximity switches to sense the end positions
• Operating pressure 2.5 to 8 bar

Applications

The DFPC-250-300-D-V4EX4-45E-45S-M24P-W2 is used in process plants where valves with 300 mm of stroke are opened and closed pneumatically. Selection depends on valve stroke, flange pattern F10, F14 and the required force of up to 29452 N at 6 bar. The ATEX marking II 2G permits use in zone 1.
