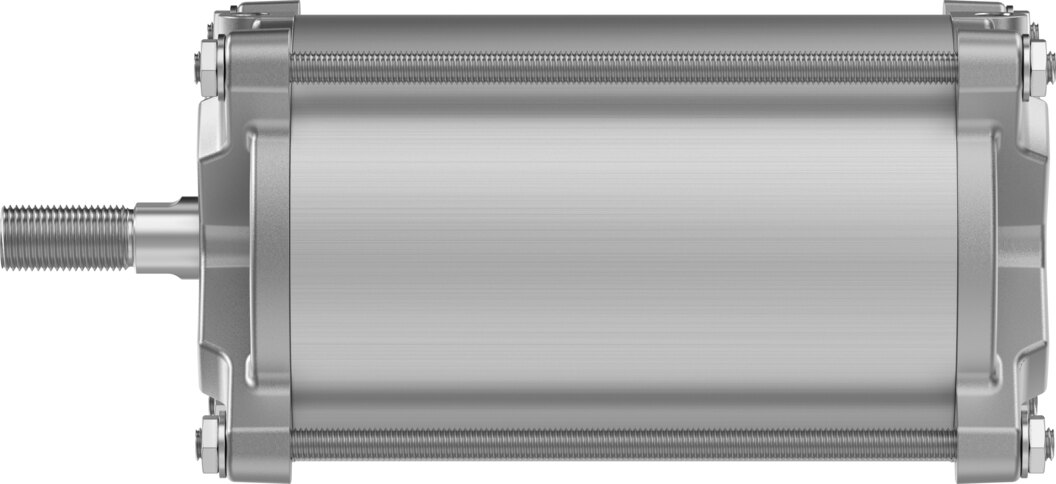

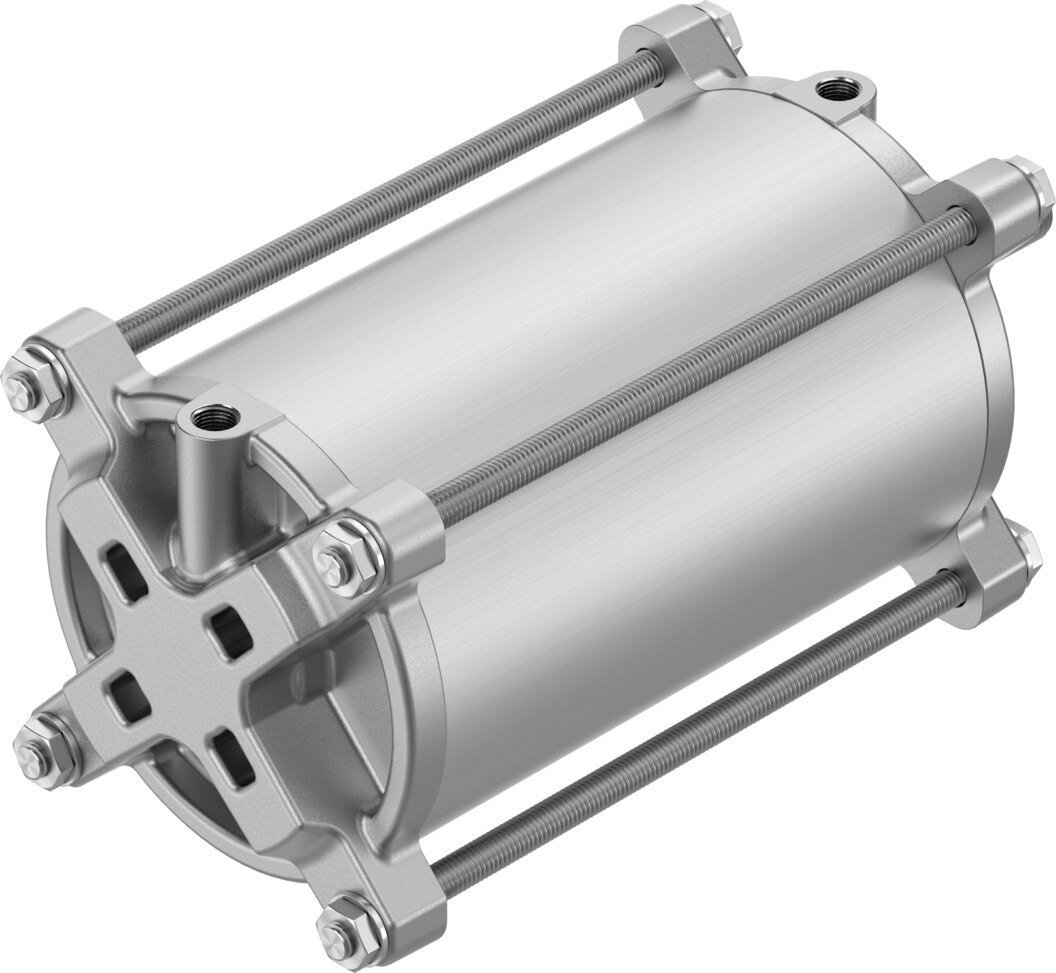

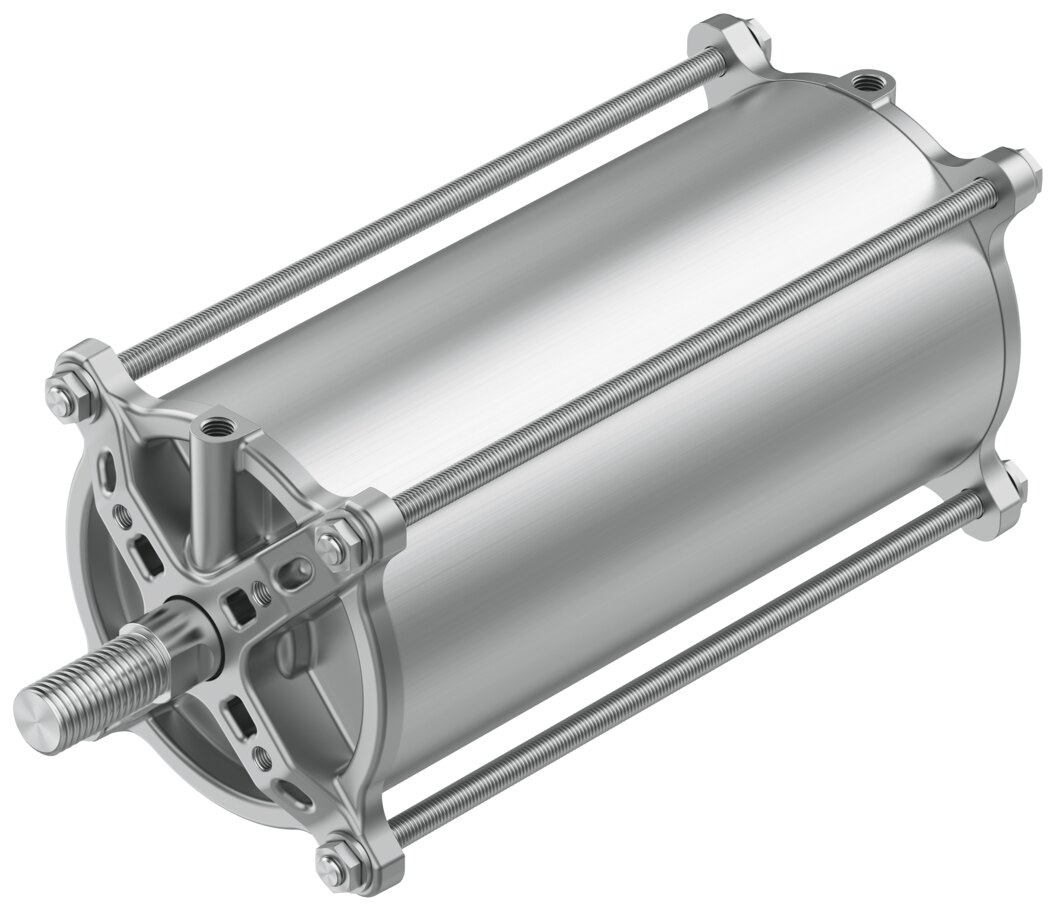

Linear actuator for process valves Ø 100 mm stroke 125 mm DFPC-100-125-D - Festo 8110775

Name: Linear actuator for process valves Ø 100 mm stroke 125 mm DFPC-100-125-D - Festo 8110775
Brand: Festo
SKU: FES-8110775
Price: 241.53 EUR
Availability: InStock

Festo ✓ Original product Brand new

Opens and closes linear valves with 125 mm stroke and up to 4712 N at 6 bar. Piston Ø 100 mm, flange pattern F07 to ISO 5210. Prepared for proximity switches.

Net

€241.53

excl. VAT

Item FES-8110775

Manufacturer no. DFPC-100-125-D

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

The linear actuator DFPC-100-125-D operates linear process valves and pushes with 4712 N at 6 bar. It mounts directly on the valve via a flange to ISO 5210 with hole pattern F07, the stroke is 125 mm.

Benefits

Theoretical force at 6 bar: 4712 N advance, 4524 N return
Mounts directly on the valve via flange to ISO 5210, hole pattern F07
Elastic cushioning rings at both ends (P), permissible impact energy 0.94 J
Prepared for proximity switches to sense the end positions
Operating pressure 2 to 8 bar
Air connection G1/8

Applications

The DFPC-100-125-D is used in process plants where valves with 125 mm of stroke are opened and closed pneumatically. Selection depends on valve stroke, flange pattern F07 and the required force of up to 4712 N at 6 bar.

Technical data

Feature	Value
Type	DFPC-100-125-D
Festo part number	8110775
Actuator size	100
Flange hole pattern	F07
Stroke	125 mm
Piston diameter	100 mm
Valve interface standard	ISO 5210
Cushioning	elastic cushioning rings/pads at both ends
Mounting position	any
Mode of operation	double-acting
Design	piston, piston rod, tie rod, cylinder barrel
Position sensing	for proximity switches
Operating pressure	2 to 8 bar
Nominal operating pressure	6 bar
Operating medium	compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating medium	lubricated operation possible (then required for all further operation)
Vibration resistance	transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistance	shock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC	2 - moderate corrosion stress
PWIS (LABS) conformity	VDMA24364 zone III
Ambient temperature	-20 to 80 °C
Impact energy in end positions	0.94 J
Theoretical force at 6 bar, return stroke	4524 N
Theoretical force at 6 bar, advance stroke	4712 N
Air consumption per 10 mm stroke, return	0.528 l
Air consumption per 10 mm stroke, advance	0.55 l
Moving mass at 0 mm stroke	617.1 g
Additional moving mass per 10 mm stroke	24.8 g
Product weight	2560 g
Basic weight at 0 mm stroke	1666.6 g
Additional weight per 10 mm stroke	71.4 g
Mounting type	on flange to ISO 5210, with stud bolts
Pneumatic connection	G1/8
Note on materials	RoHS compliant
Cover material	gravity die-cast aluminium
Piston rod material	high-alloy stainless steel
Piston rod wiper material	TPE-U(PU)
Nut material	high-alloy stainless steel
Static seal material	NBR
Tie rod material	high-alloy stainless steel
Cylinder barrel material	wrought aluminium alloy, smooth-anodised
Weight	2.7 kg
Manufacturer	Festo
Hersteller-Nr	DFPC-100-125-D
EAN	4052568460549
Zolltarifnummer	84123100
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Material	Aluminium
Thread	G 1/8
Stroke [mm]	125
Medium	Compressed air
Function	double-acting
Bore (mm)	100
Betriebsdruck max [bar]	8
Temperaturbereich	-20-80 °C
Temperature (max.)	80
