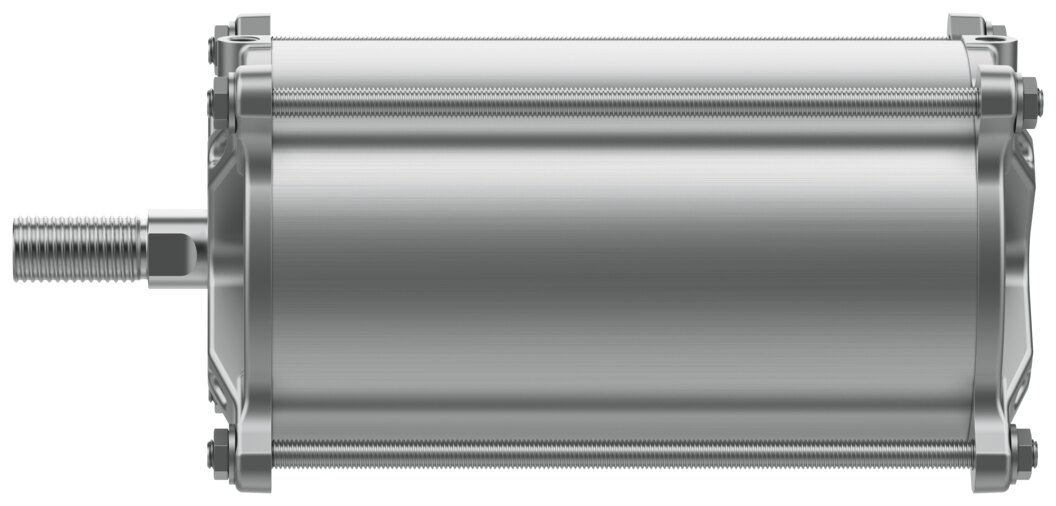

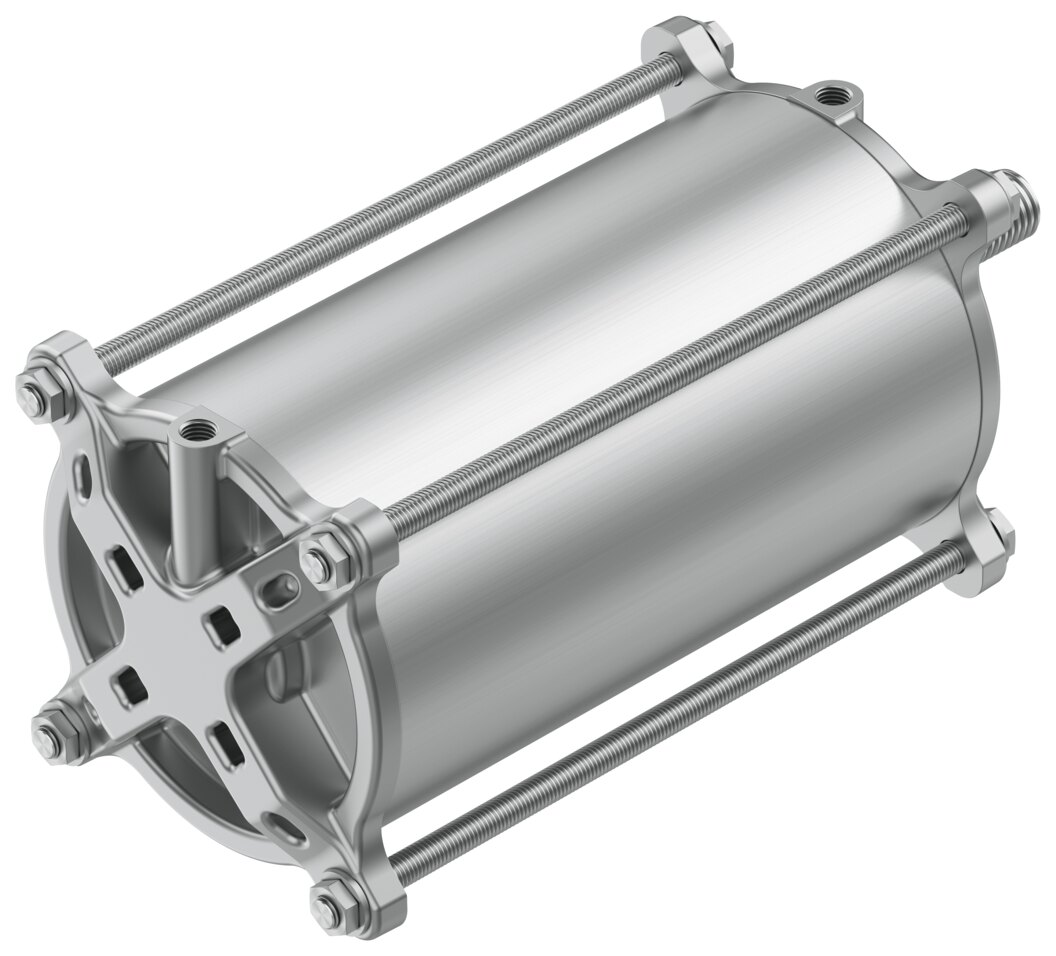

Linear actuator for process valves Ø 160 mm stroke 200 mm DFPC-160-200-D - Festo 8133080

With a 160 mm piston the process valve actuator DFPC-160-200-D reaches 12064 N on advance and 11581 N on return. Flange F10 to ISO 5210 and stud bolts provide direct seating on the valve.

Benefits

• Mounts directly on the valve via flange to ISO 5210, hole pattern F10
• Theoretical force at 6 bar: 12064 N advance, 11581 N return
• Elastic cushioning rings at both ends (P), permissible impact energy 3.3 J
• Operating pressure 2 to 8 bar
• Prepared for proximity switches to sense the end positions
• Air connection G1/4

Applications

The DFPC-160-200-D is used in process plants where valves with 200 mm of stroke are opened and closed pneumatically. Selection depends on valve stroke, flange pattern F10 and the required force of up to 12064 N at 6 bar.
