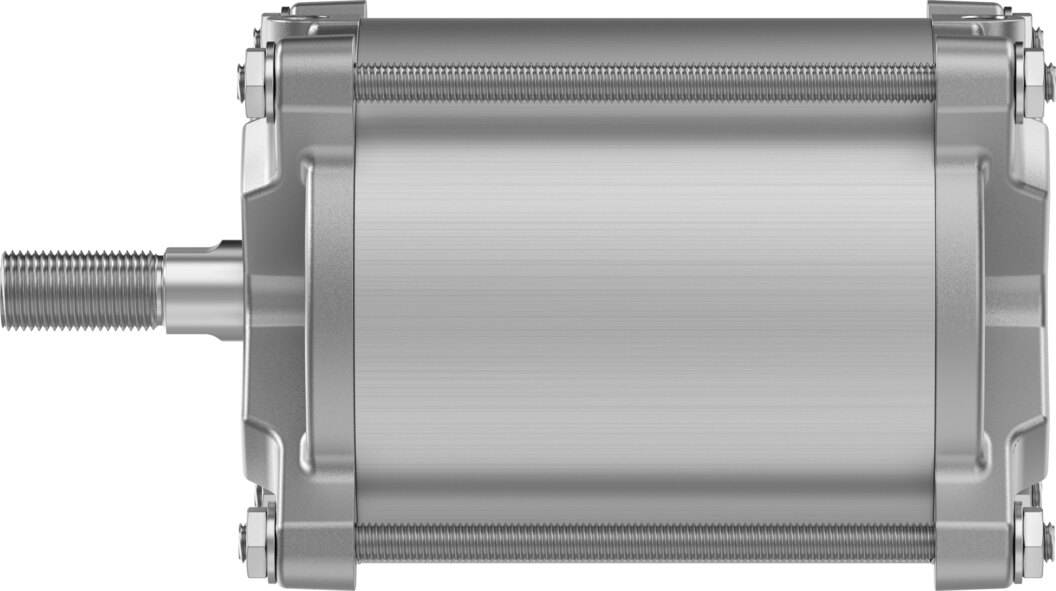

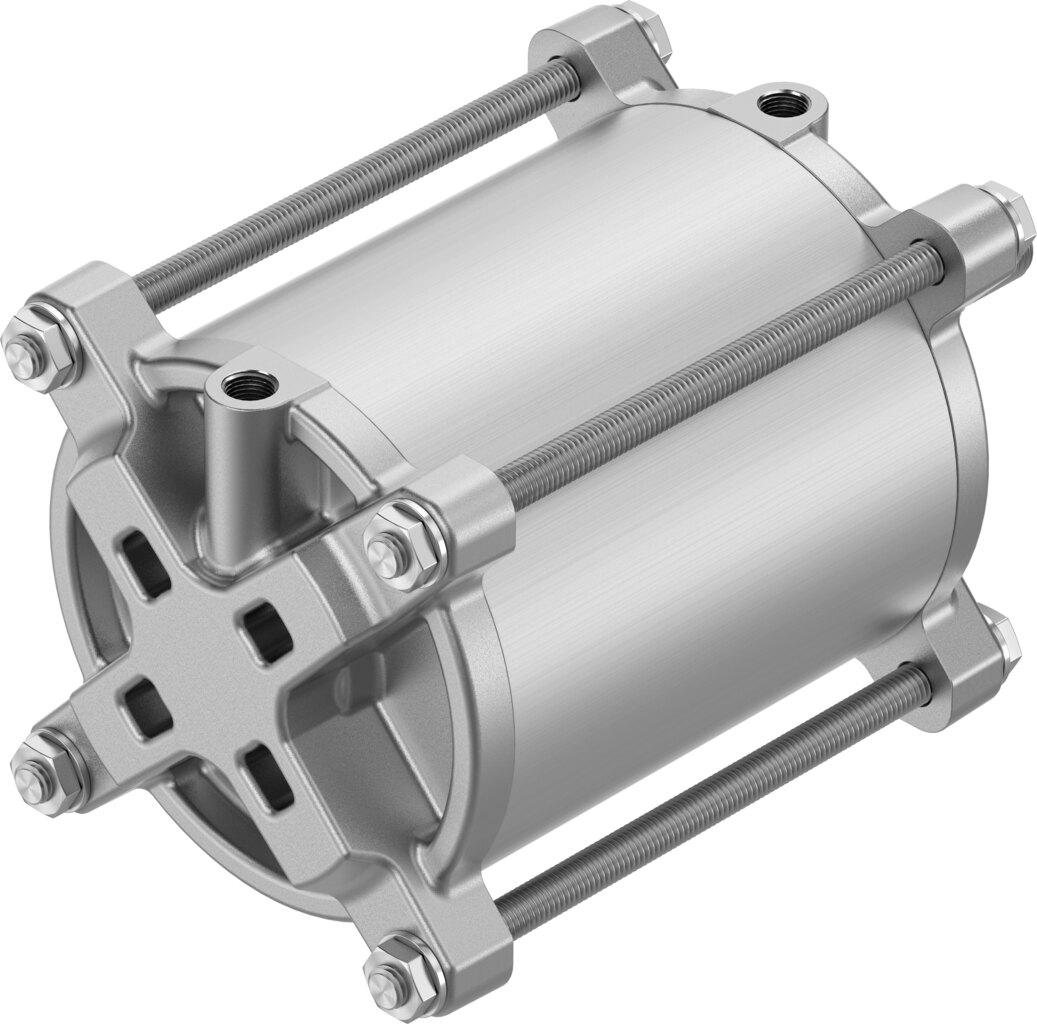

Linear actuator for process valves Ø 100 mm stroke 80 mm DFPC-100-80-D - Festo 8110777

With a 100 mm piston the process valve actuator DFPC-100-80-D reaches 4712 N on advance and 4524 N on return. Flange F07 to ISO 5210 and stud bolts provide direct seating on the valve.

Benefits

• Theoretical force at 6 bar: 4712 N advance, 4524 N return
• Mounts directly on the valve via flange to ISO 5210, hole pattern F07
• Elastic cushioning rings at both ends (P), permissible impact energy 0.94 J
• Air connection G1/8
• Operating pressure 2 to 8 bar
• Prepared for proximity switches to sense the end positions

Applications

The DFPC-100-80-D is used in process plants where valves with 80 mm of stroke are opened and closed pneumatically. Selection depends on valve stroke, flange pattern F07 and the required force of up to 4712 N at 6 bar.
