Linearantrieb DFPC-100-100-D - Festo 8110776

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Linear actuator for process valves Ø 100 mm stroke 100 mm DFPC-100-100-D - Festo 8110776

Name: Linear actuator for process valves Ø 100 mm stroke 100 mm DFPC-100-100-D - Festo 8110776
Brand: Festo
SKU: FES-8110776
Price: 238.18 EUR
Availability: InStock

Festo ✓ Original product Brand new

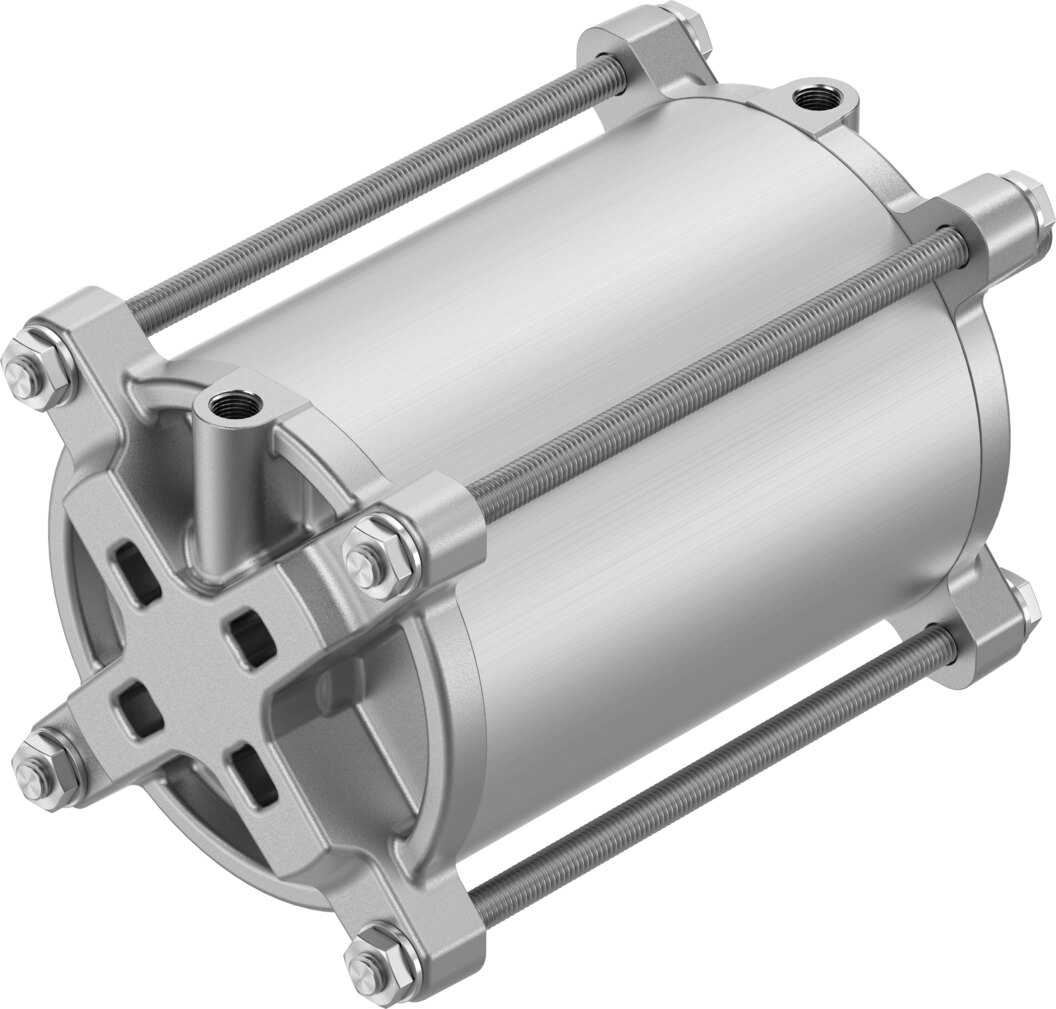

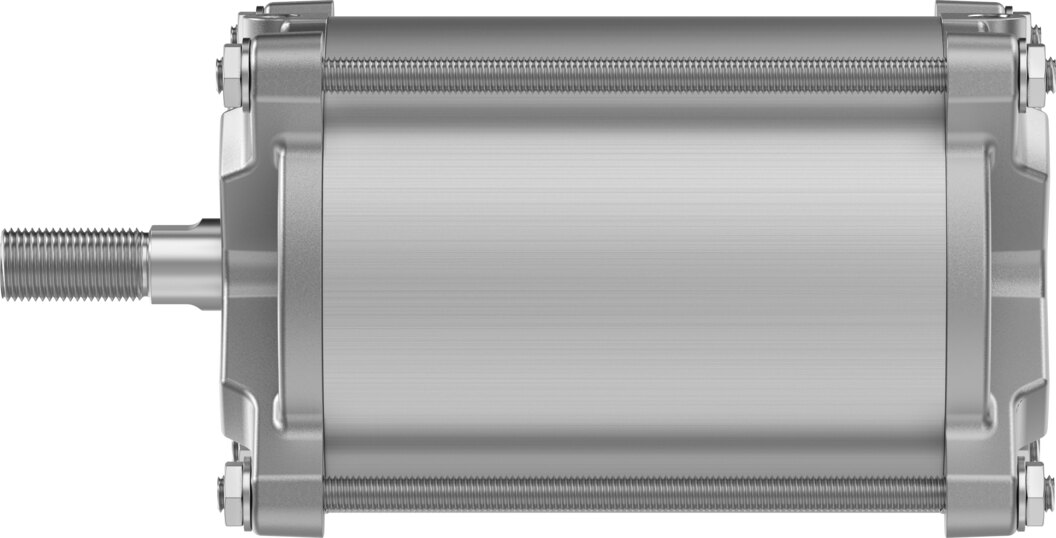

Pneumatic linear actuator for process valves with 4712 N actuating force at 6 bar and 100 mm stroke. Mounts directly on the valve via flange F07 to ISO 5210. Prepared for proximity switches.

Net

€238.18

excl. VAT

Item FES-8110776

Manufacturer no. DFPC-100-100-D

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

4712 N actuating force at 6 bar and 100 mm stroke: the double-acting DFPC-100-100-D is built to open and close linear valves. It is attached via flange F07 to ISO 5210.

Benefits

Theoretical force at 6 bar: 4712 N advance, 4524 N return
Mounts directly on the valve via flange to ISO 5210, hole pattern F07
Elastic cushioning rings at both ends (P), permissible impact energy 0.94 J
Air connection G1/8
Operating pressure 2 to 8 bar
Prepared for proximity switches to sense the end positions

Applications

The DFPC-100-100-D operates gate valves and other linear valves in process plants, for example in water and wastewater treatment or chemicals. With 100 mm stroke and 4712 N actuating force it is selected by valve stroke and required closing force.

Technical data

Feature	Value
Type	DFPC-100-100-D
Festo part number	8110776
Actuator size	100
Flange hole pattern	F07
Stroke	100 mm
Piston diameter	100 mm
Valve interface standard	ISO 5210
Cushioning	elastic cushioning rings/pads at both ends
Mounting position	any
Mode of operation	double-acting
Design	piston, piston rod, tie rod, cylinder barrel
Position sensing	for proximity switches
Operating pressure	2 to 8 bar
Nominal operating pressure	6 bar
Operating medium	compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating medium	lubricated operation possible (then required for all further operation)
Vibration resistance	transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistance	shock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC	2 - moderate corrosion stress
PWIS (LABS) conformity	VDMA24364 zone III
Ambient temperature	-20 to 80 °C
Impact energy in end positions	0.94 J
Theoretical force at 6 bar, return stroke	4524 N
Theoretical force at 6 bar, advance stroke	4712 N
Air consumption per 10 mm stroke, return	0.528 l
Air consumption per 10 mm stroke, advance	0.55 l
Moving mass at 0 mm stroke	617.1 g
Additional moving mass per 10 mm stroke	24.8 g
Product weight	2380 g
Basic weight at 0 mm stroke	1666.6 g
Additional weight per 10 mm stroke	71.4 g
Mounting type	on flange to ISO 5210, with stud bolts
Pneumatic connection	G1/8
Note on materials	RoHS compliant
Cover material	gravity die-cast aluminium
Piston rod material	high-alloy stainless steel
Piston rod wiper material	TPE-U(PU)
Nut material	high-alloy stainless steel
Static seal material	NBR
Tie rod material	high-alloy stainless steel
Cylinder barrel material	wrought aluminium alloy, smooth-anodised
Weight	2.4 kg
Manufacturer	Festo
Hersteller-Nr	DFPC-100-100-D
EAN	4052568460556
Zolltarifnummer	84123100
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Material	Aluminium
Thread	G 1/8
Stroke [mm]	100
Medium	Compressed air
Function	double-acting
Bore (mm)	100
Betriebsdruck max [bar]	8
Temperaturbereich	-20-80 °C
Temperature (max.)	80
