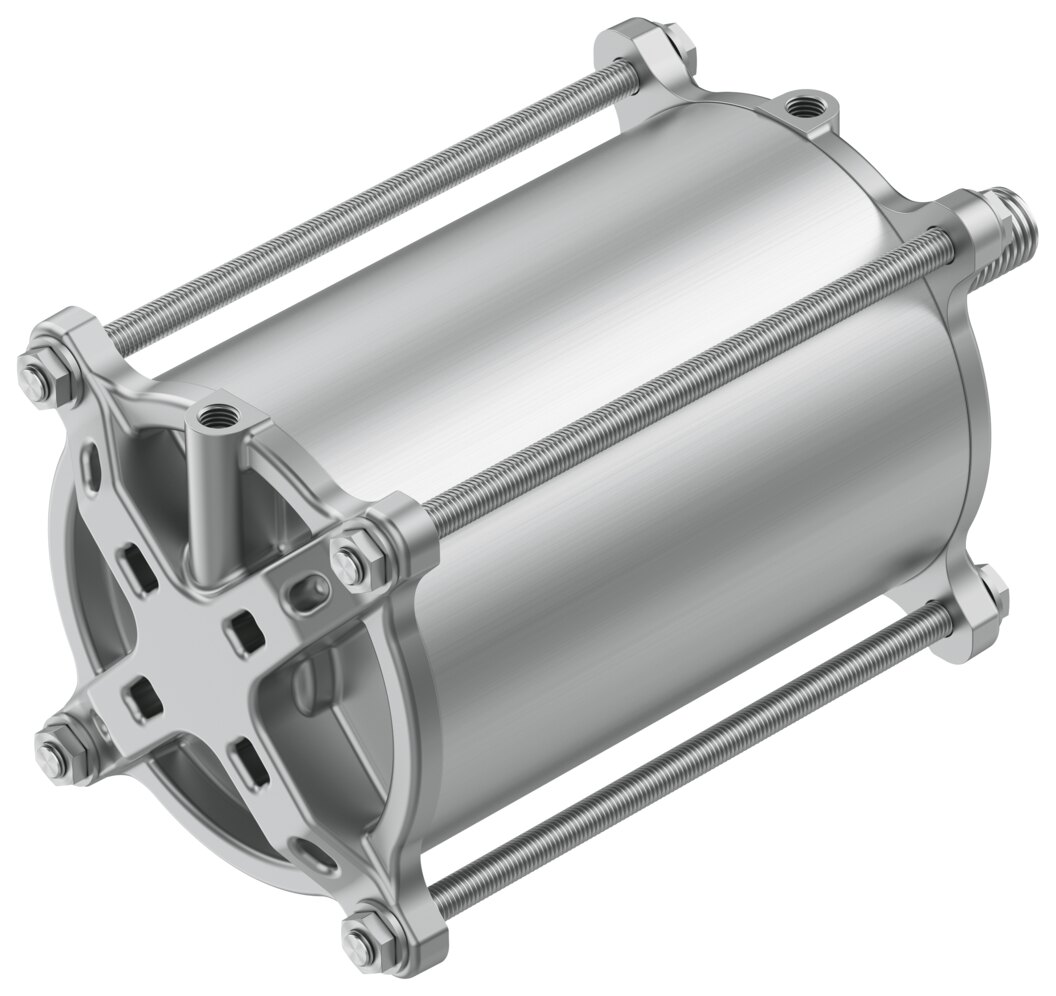

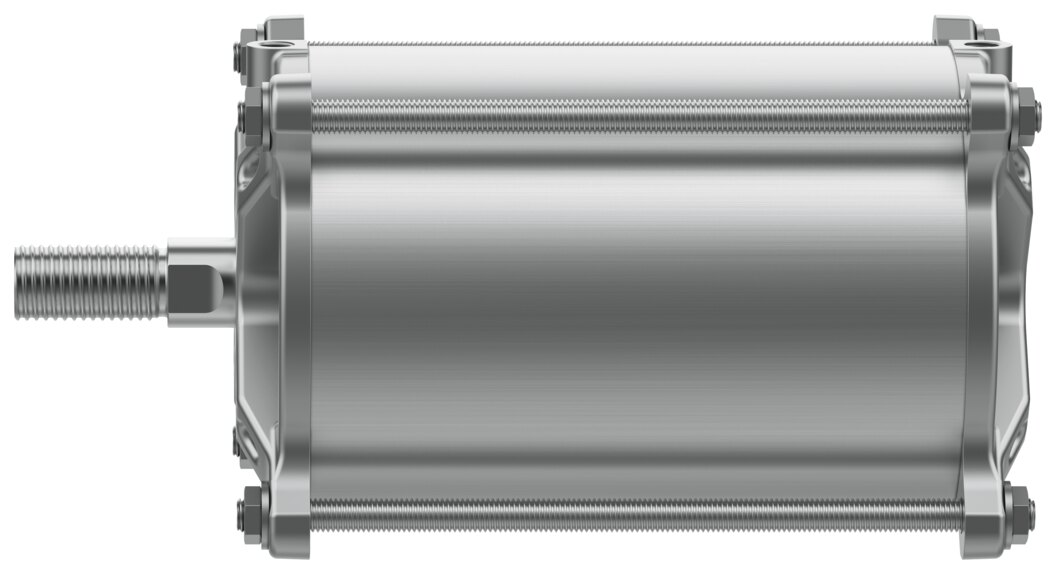

Linear actuator for process valves Ø 160 mm stroke 150 mm DFPC-160-150-D - Festo 8133079

With a 160 mm piston the process valve actuator DFPC-160-150-D reaches 12064 N on advance and 11581 N on return. Flange F10 to ISO 5210 and stud bolts provide direct seating on the valve.

Benefits

• Mounts directly on the valve via flange to ISO 5210, hole pattern F10
• Theoretical force at 6 bar: 12064 N advance, 11581 N return
• Elastic cushioning rings at both ends (P), permissible impact energy 3.3 J
• Air connection G1/4
• Operating pressure 2 to 8 bar
• Prepared for proximity switches to sense the end positions

Applications

The DFPC-160-150-D operates gate valves and other linear valves in process plants, for example in water and wastewater treatment or chemicals. With 150 mm stroke and 12064 N actuating force it is selected by valve stroke and required closing force.
