Führungszylinder DFM-50-50-B-PPV-A-KF - Festo 609361
Führungszylinder DFM-50-50-B-PPV-A-KF - Festo 609361 Führungszylinder DFM-50-50-B-PPV-A-KF - Festo 609361 Führungszylinder DFM-50-50-B-PPV-A-KF - Festo 609361

Images are examples, some edited with AI. The technical data are authoritative. AI notice

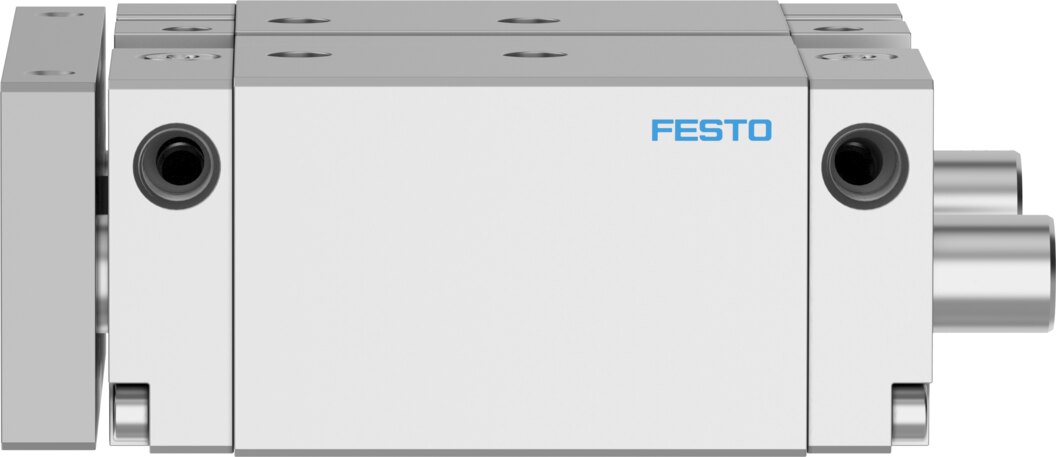

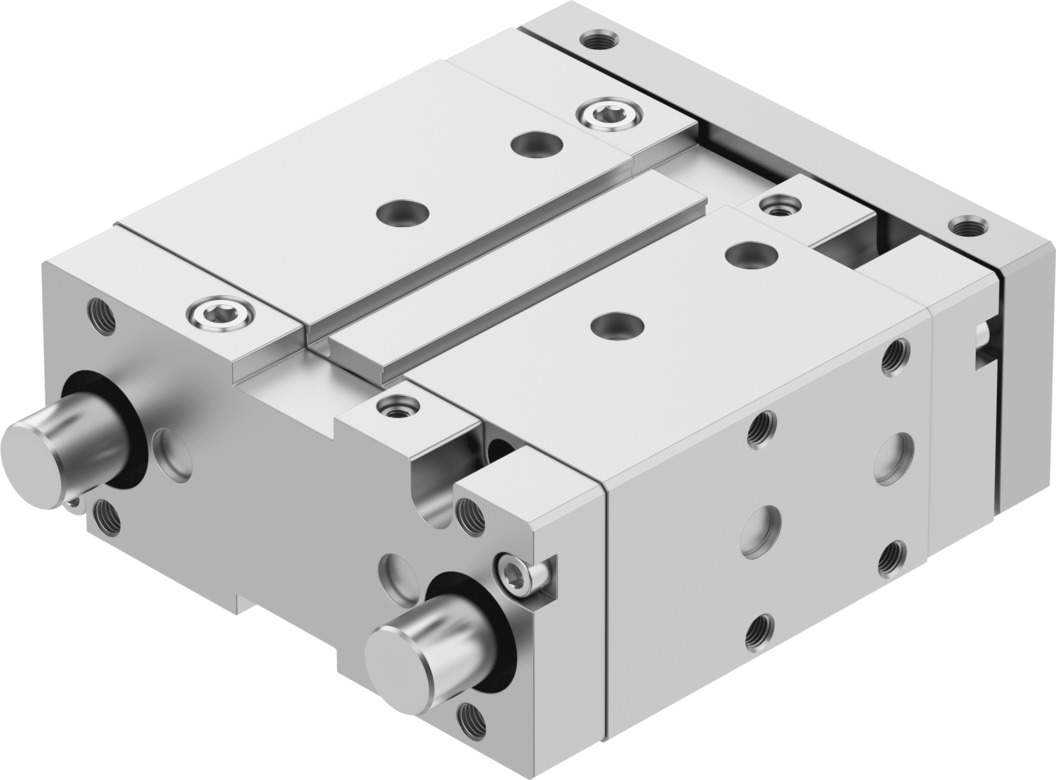

Guided drive with ball bearing guide Ø 50 mm 50 mm stroke DFM-50-50-B-PPV-A-KF - Festo 609361

Festo ✓ Original product Brand new

The Festo DFM-50-50-B-PPV-A-KF carries the load on guide rods with recirculating ball bearing guide and a yoke plate, with a 50 mm piston and 50 mm stroke. At 6 bar it delivers a theoretical 1178 N advancing and 1057 N retracting. Pneumatic end-position cushioning is adjustable at both ends.

Net
€635.13
excl. VAT
Item FES-609361
Manufacturer no. DFM-50-50-B-PPV-A-KF
Save Compare
Question about this item
Datasheet (PDF)
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

50 mm piston, 50 mm stroke and 1178 N advancing force at 6 bar: the DFM-50-50-B-PPV-A-KF guided drive combines drive and guide in one ready-to-fit unit.

Benefits

  • Recirculating ball bearing guide: guide rods in recirculating ball bushings
  • Force: 1178 N advance and 1057 N return at 6 bar (theoretical)
  • Cushioning: pneumatic end-position cushioning, adjustable at both ends
  • Cleanroom and PWIS: class 6 to ISO 14644-1, PWIS-free to VDMA24364-B1/B2-L
  • Piston rod: high-alloy stainless steel

Applications

Typical jobs for the DFM-50-50-B-PPV-A-KF are precise lifting, pushing and positioning in assembly and handling systems. Operating medium for the DFM-50-50-B-PPV-A-KF is compressed air to ISO 8573-1:2010 [7:4:4], permitted ambient temperature -5 to 60 °C, any mounting position. For electronics, precision or battery production, this 50 mm version offers cleanroom class 6 to ISO 14644-1.

Technical data

TypeDFM-50-50-B-PPV-A-KF
Festo part number609361
Stroke50 mm
Piston diameter50 mm
Operating mode, drive unitYoke
CushioningPneumatic cushioning, adjustable at both ends
Mounting positionAny
GuideRecirculating ball bearing guide
DesignGuidance
Position detectionVia proximity switch
Mode of operationDouble-acting
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability (ISO 14644-14)Class 6 according to ISO 14644-1
Ambient temperature-5 to 60 °C
Impact energy in end positions1 J
Theoretical force at 6 bar, return stroke1057 N
Theoretical force at 6 bar, advance stroke1178 N
Alternative connectionsSee product drawing
Pneumatic connectionG1/4
Material coverWrought aluminium alloy
Material sealsNBR
Material housingWrought aluminium alloy
Material piston rodHigh-alloy stainless steel
Weight4.6 kg
ManufacturerFesto
Hersteller-NrDFM-50-50-B-PPV-A-KF
EAN4052568411794
Zolltarifnummer84123100
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
AusführungKugelumlaufführung
MaterialAluminium
ThreadG 1/4
Piston Ø [mm]50
Stroke [mm]50
Seal materialNBR
MediumCompressed air
Functiondouble-acting
SeriesDFM
Bore (mm)50
Temperaturbereich-5-60 °C
Temperature (max.)60
