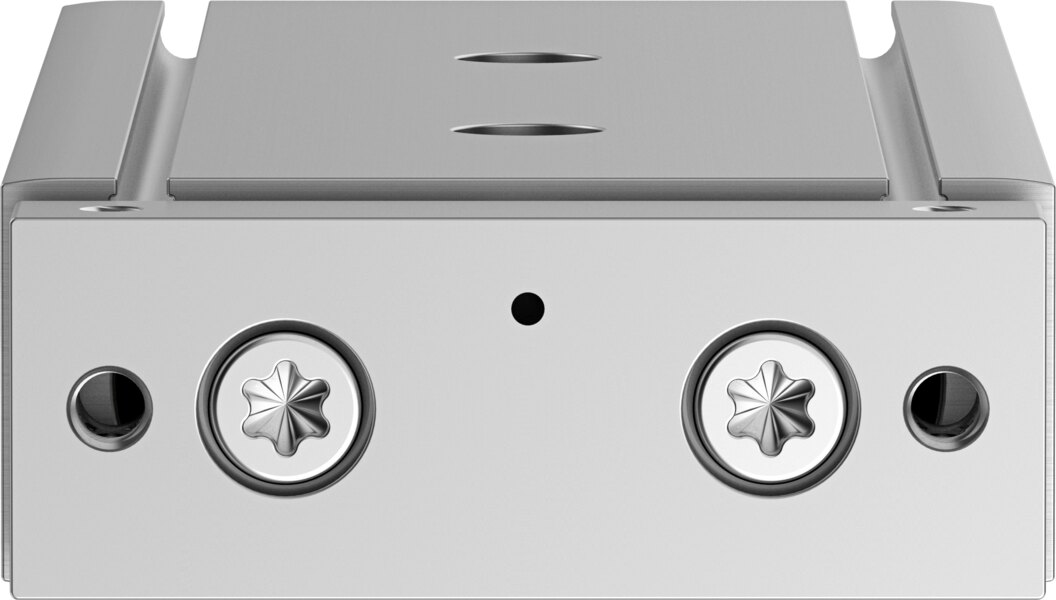

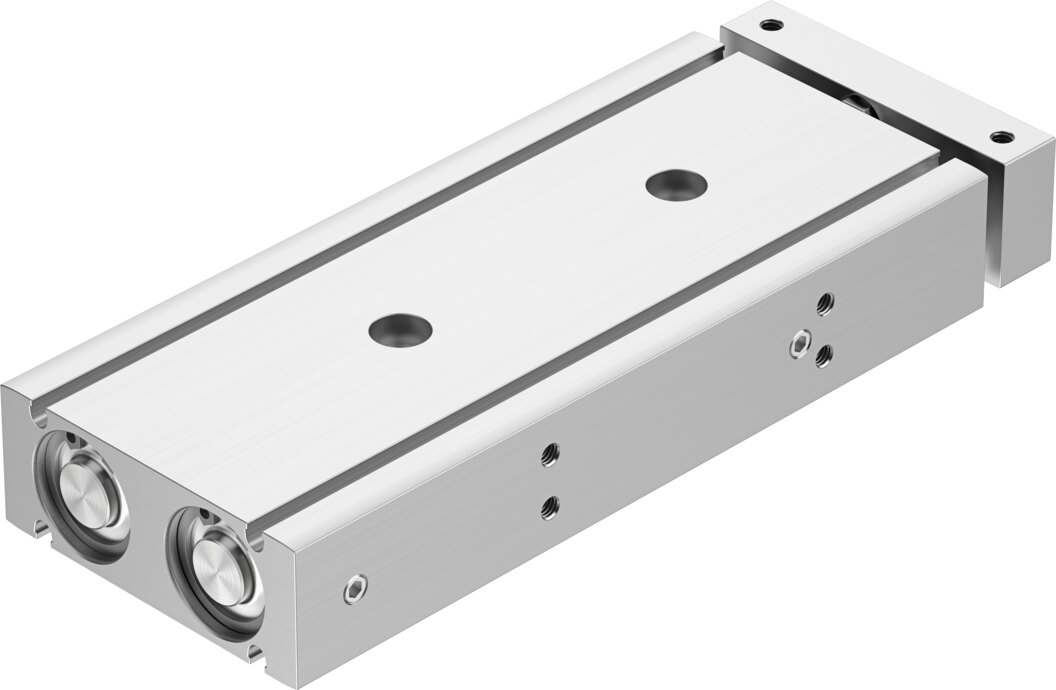

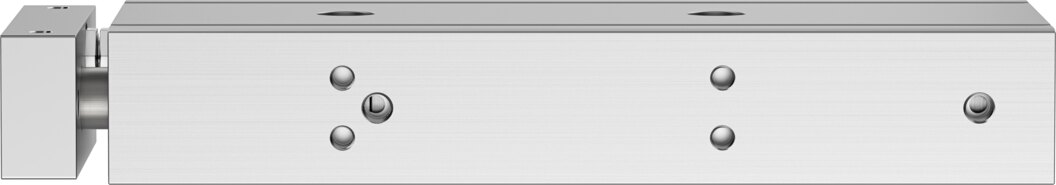

Twin cylinder with plain-bearing guide Ø 20 mm 80 mm stroke DGTZ-GF-20-80-P-A - Festo 8100614

Where a bare piston rod cannot take side loads, the DGTZ-GF-20-80-P-A twin cylinder steps in with 80 mm stroke and 376 N advancing force at 6 bar.

Benefits

• Plain-bearing guide: guide rods in plain bearings
• Force: 376 N advance and 283 N return at 6 bar (theoretical)
• Cleanroom and PWIS: class 5 to ISO 14644-1, PWIS-free to VDMA24364-Zone III
• Cushioning: elastic cushioning rings at both ends, impact energy up to 0.2 J
• Piston rod: high-alloy stainless steel

Applications

The DGTZ-GF-20-80-P-A suits lifting, stopping and pushing tasks in conveyor systems and fixture building. The DGTZ-GF-20-80-P-A runs on compressed air to ISO 8573-1:2010 [7:4:4] at -10 to 80 °C ambient temperature and can be mounted in any position. Documented for this 80 mm stroke version: cleanroom class 5 to ISO 14644-1.
