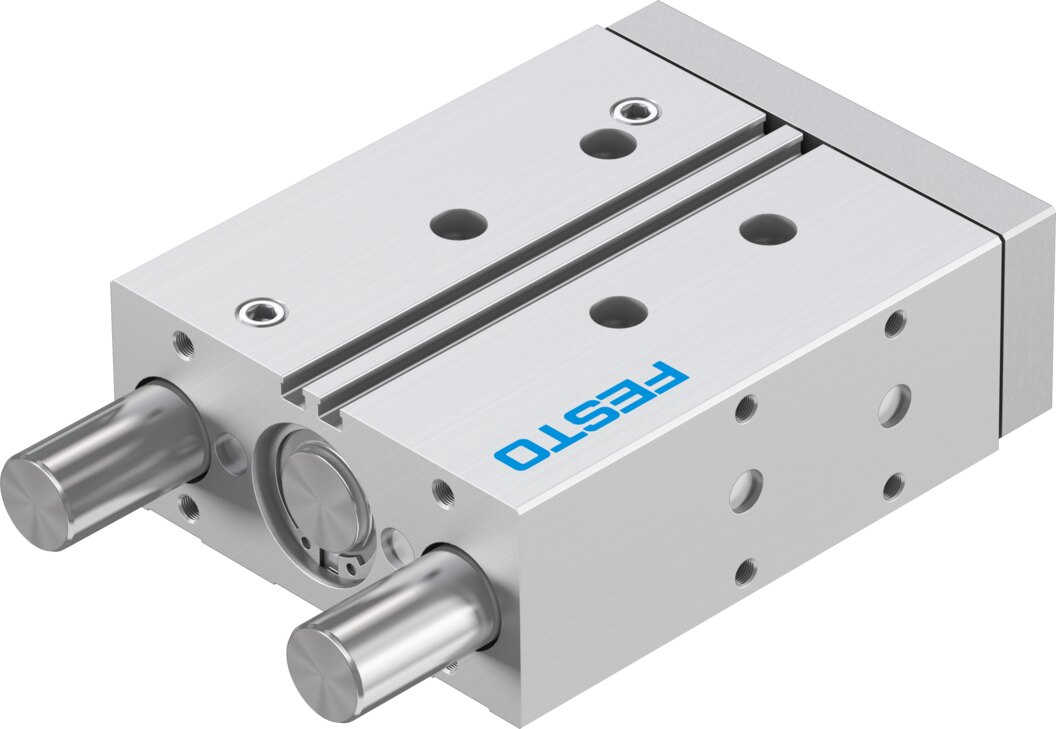

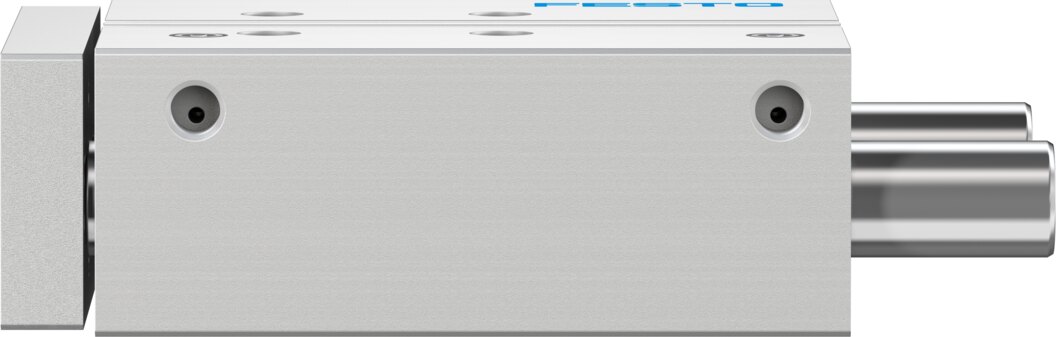

Guided drive with plain-bearing guide Ø 32 mm 80 mm stroke DFM-32-80-P-A-GF-F1A - Festo 8118886

At 6 bar the DFM-32-80-P-A-GF-F1A turns a theoretical 482 N into a guided linear motion over 80 mm, with a 32 mm piston.

Benefits

• Plain-bearing guide: guide rods in plain bearings, transverse force Fy up to 1227 N
• Force: 482 N advance and 415 N return at 6 bar (theoretical)
• Piston rod: high-alloy stainless steel
• Speed: up to 0.8 m/s
• Moments: Mx up to 47.84 Nm, My/Mz up to 35.57 Nm
• Cushioning: elastic cushioning rings at both ends, impact energy up to 0.4 J

Applications

Typical uses of the DFM-32-80-P-A-GF-F1A are ejecting, separating and lifting on conveyor lines and in fixtures. The DFM-32-80-P-A-GF-F1A runs on compressed air to ISO 8573-1:2010 [7:4:4] at -20 to 80 °C ambient temperature and can be mounted in any position. Documented for this 80 mm stroke version: cleanroom class 6 to ISO 14644-1 and reduced Cu/Zn/Ni content for lithium-ion battery production (F1a).
