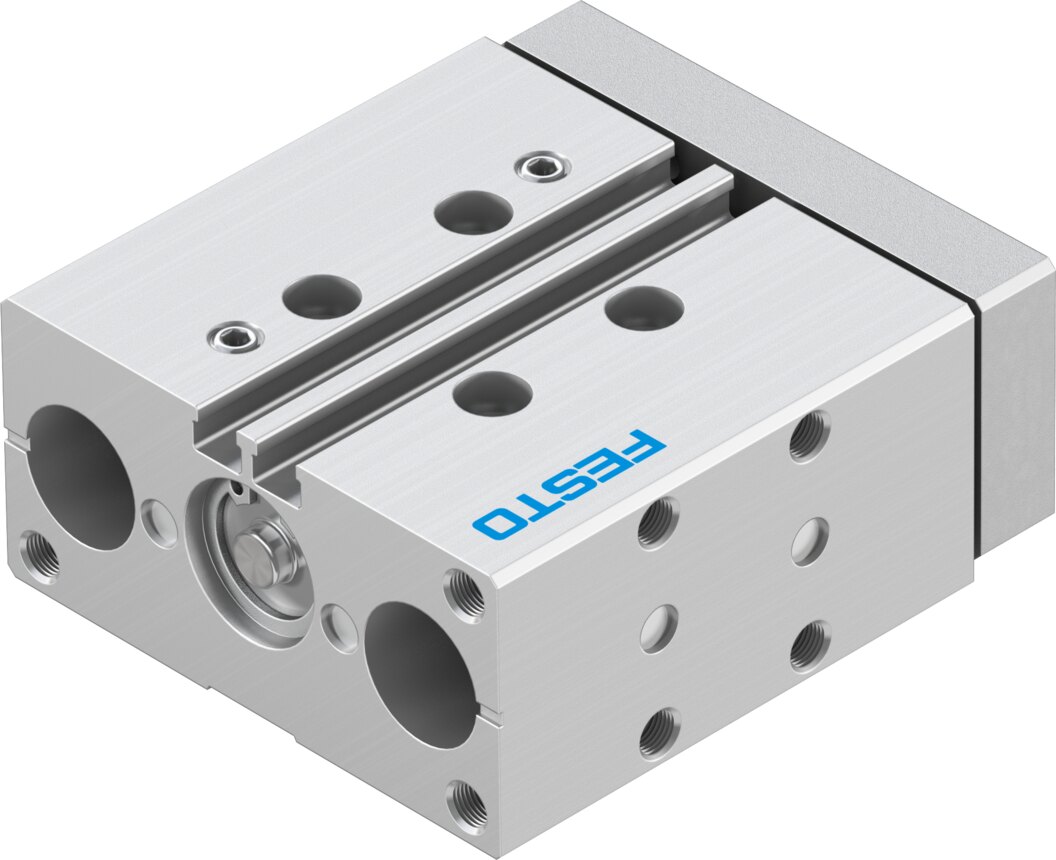

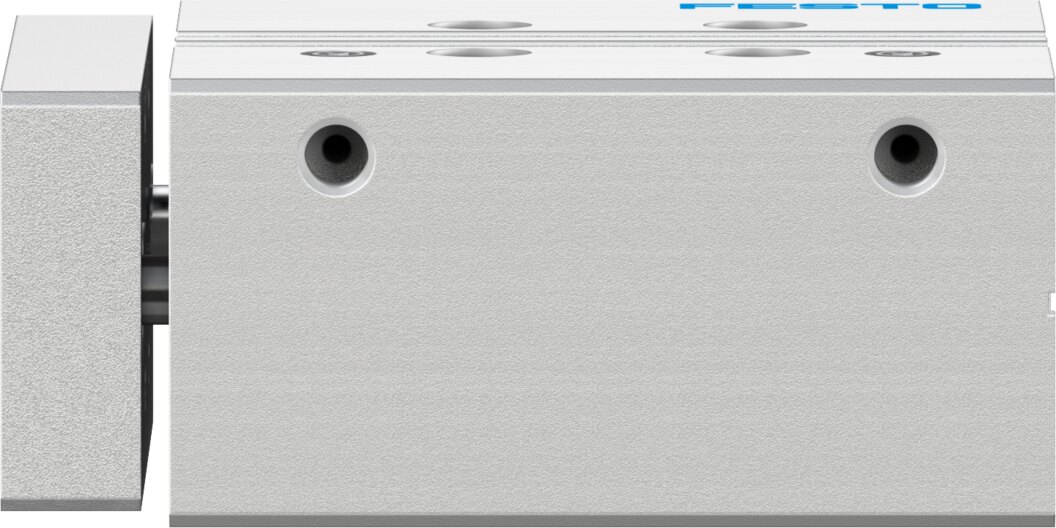

Guided drive with plain-bearing guide Ø 16 mm 25 mm stroke DFM-16-25-P-A-GF-F1A - Festo 8118824

16 mm piston, 25 mm stroke and 121 N advancing force at 6 bar: the DFM-16-25-P-A-GF-F1A guided drive combines drive and guide in one ready-to-fit unit.

Benefits

• Plain-bearing guide: guide rods in plain bearings, transverse force Fy up to 304 N
• Force: 121 N advance and 90 N return at 6 bar (theoretical)
• Moments: Mx up to 6.99 Nm, My/Mz up to 2.89 Nm
• Speed: up to 0.8 m/s
• Battery production: reduced Cu/Zn/Ni content (F1a)
• Cushioning: elastic cushioning rings at both ends, impact energy up to 0.15 J

Applications

The DFM-16-25-P-A-GF-F1A suits lifting, stopping and pushing tasks in conveyor systems and fixture building. The DFM-16-25-P-A-GF-F1A runs on compressed air to ISO 8573-1:2010 [7:4:4] at -20 to 80 °C ambient temperature and can be mounted in any position. Documented for this 25 mm stroke version: cleanroom class 6 to ISO 14644-1 and reduced Cu/Zn/Ni content for lithium-ion battery production (F1a).
