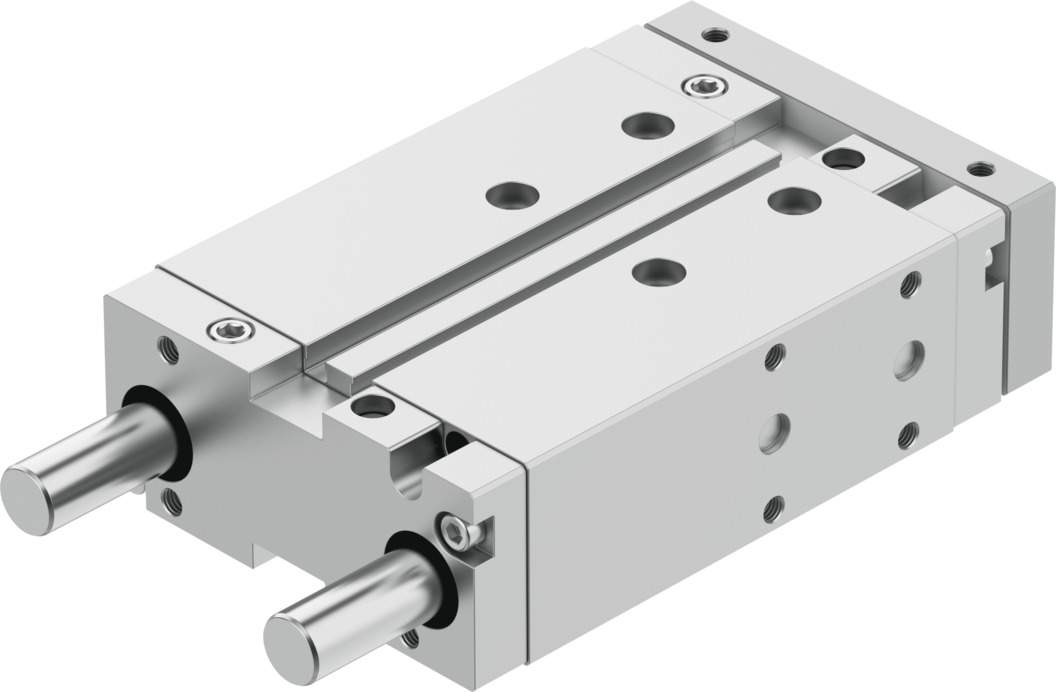

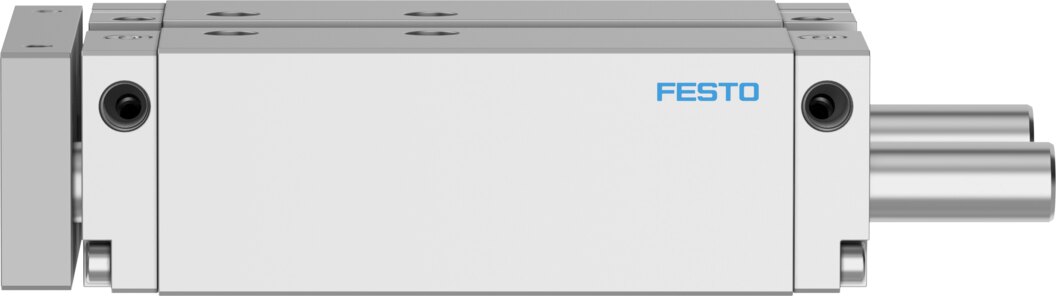

Guided drive with plain-bearing guide Ø 32 mm 80 mm stroke DFM-32-80-B-PPV-A-GF - Festo 578877

At 6 bar the DFM-32-80-B-PPV-A-GF turns a theoretical 482 N into a guided linear motion over 80 mm, with a 32 mm piston.

Benefits

• Plain-bearing guide: guide rods in plain bearings
• Force: 482 N advance and 415 N return at 6 bar (theoretical)
• Cleanroom and PWIS: class 6 to ISO 14644-1, PWIS-free to VDMA24364-B1/B2-L
• Cushioning: pneumatic end-position cushioning, adjustable at both ends
• Piston rod: high-alloy stainless steel

Applications

Typical uses of the DFM-32-80-B-PPV-A-GF are ejecting, separating and lifting on conveyor lines and in fixtures. Operating medium for the DFM-32-80-B-PPV-A-GF is compressed air to ISO 8573-1:2010 [7:4:4], permitted ambient temperature -20 to 80 °C, any mounting position. Documented for this 80 mm stroke version: cleanroom class 6 to ISO 14644-1 and corrosion resistance class 2 for moderate corrosion stress.
