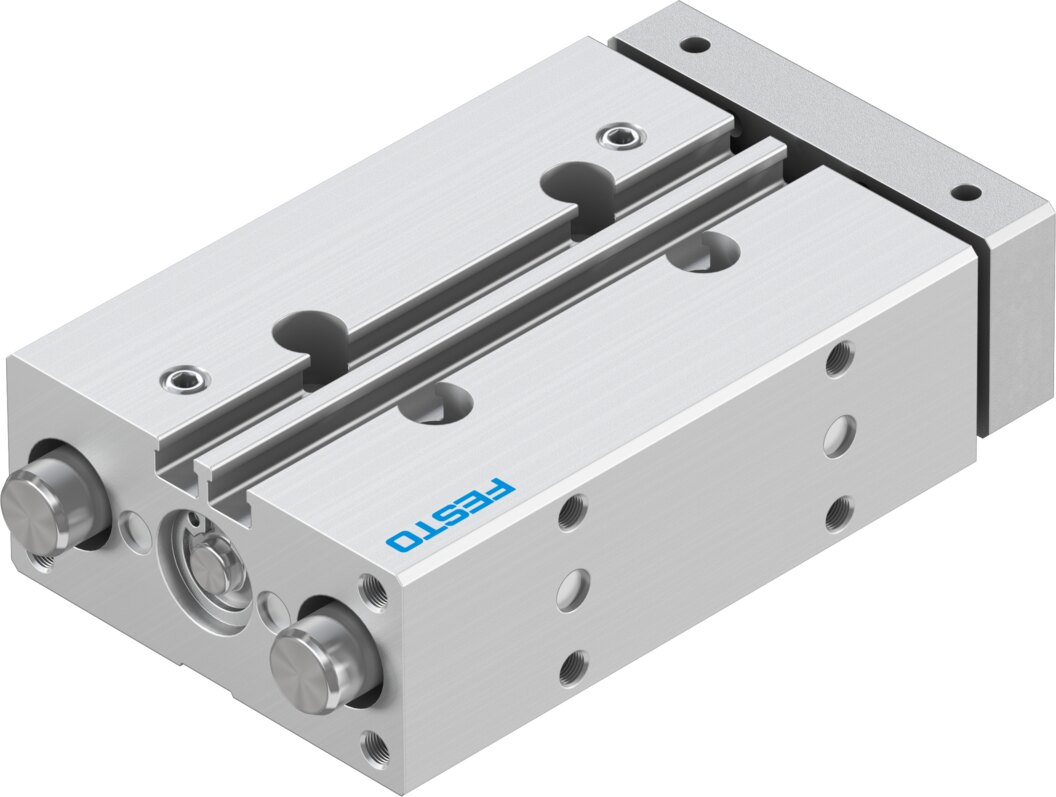

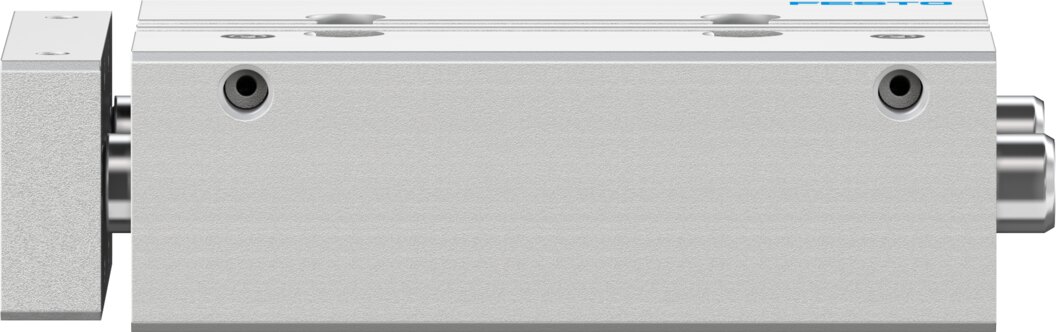

Guided drive with plain-bearing guide Ø 12 mm 50 mm stroke DFM-12-50-P-A-GF-F1A - Festo 8118628

12 mm piston, 50 mm stroke and 68 N advancing force at 6 bar: the DFM-12-50-P-A-GF-F1A guided drive combines drive and guide in one ready-to-fit unit.

Benefits

• Plain-bearing guide: guide rods in plain bearings, transverse force Fy up to 240 N
• Force: 68 N advance and 51 N return at 6 bar (theoretical)
• Moments: Mx up to 4.92 Nm, My/Mz up to 3.74 Nm
• Cushioning: elastic cushioning rings at both ends, impact energy up to 0.07 J
• Speed: up to 0.8 m/s
• Cleanroom and PWIS: class 6 to ISO 14644-1, PWIS-free to VDMA24364-B1/B2-L

Applications

The DFM-12-50-P-A-GF-F1A suits lifting, stopping and pushing tasks in conveyor systems and fixture building. The DFM-12-50-P-A-GF-F1A runs on compressed air to ISO 8573-1:2010 [7:4:4] at -20 to 80 °C ambient temperature and can be mounted in any position. For electronics, precision or battery production, this 12 mm version offers cleanroom class 6 to ISO 14644-1 and reduced Cu/Zn/Ni content for lithium-ion battery production (F1a).
