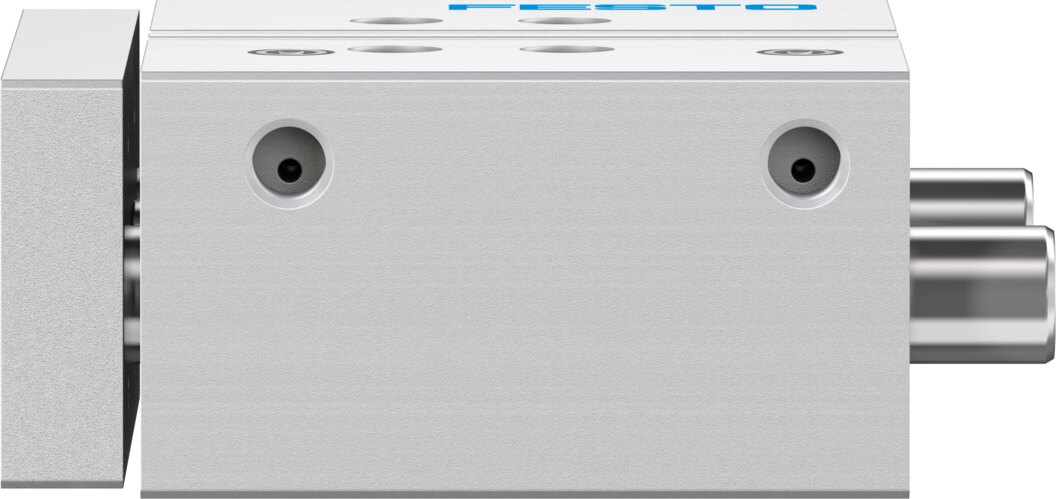

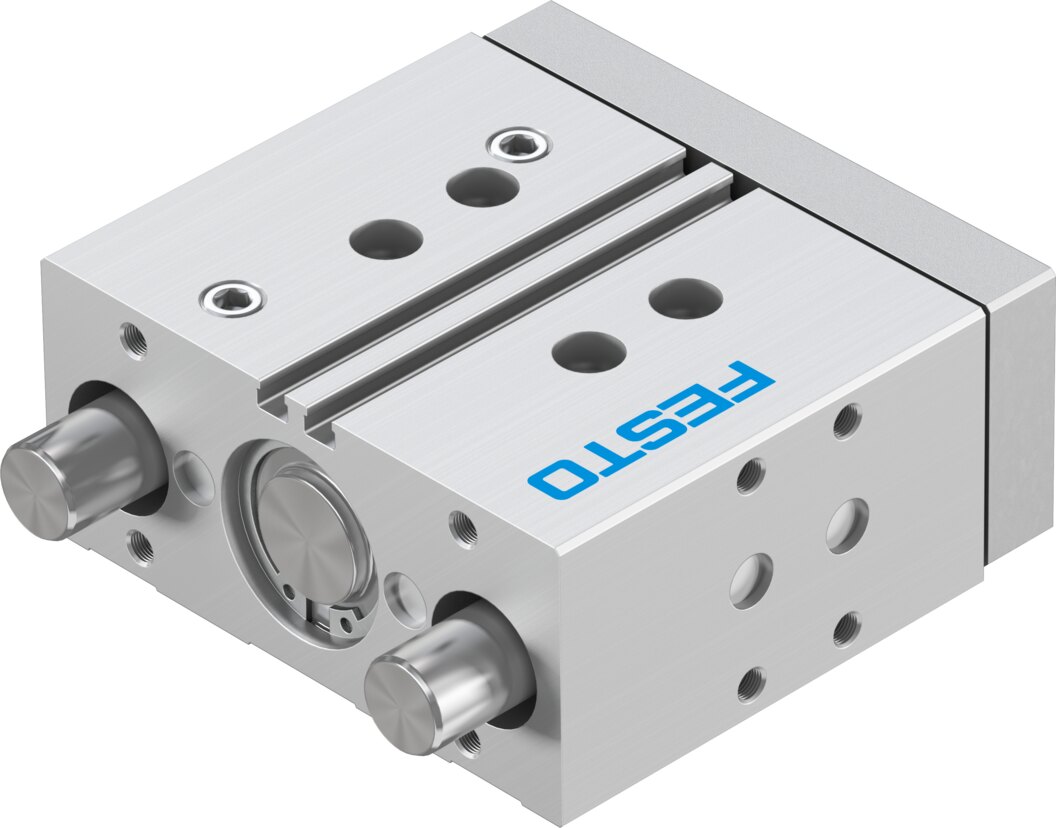

Guided drive with ball bearing guide Ø 32 mm 40 mm stroke DFM-32-40-P-A-KF-F1A - Festo 8118894

At 6 bar the DFM-32-40-P-A-KF-F1A turns a theoretical 482 N into a guided linear motion over 40 mm, with a 32 mm piston.

Benefits

• Recirculating ball bearing guide: guide rods in recirculating ball bushings, transverse force Fy up to 1130 N
• Force: 482 N advance and 415 N return at 6 bar (theoretical)
• Moments: Mx up to 44.09 Nm, My/Mz up to 18.66 Nm
• Speed: up to 0.8 m/s
• Cushioning: elastic cushioning rings at both ends, impact energy up to 0.4 J
• Piston rod: high-alloy stainless steel

Applications

Use the DFM-32-40-P-A-KF-F1A where smooth travel and accurate guidance matter for lifting, joining or ejecting parts. Operating medium for the DFM-32-40-P-A-KF-F1A is compressed air to ISO 8573-1:2010 [7:4:4], permitted ambient temperature -5 to 60 °C, any mounting position. Documented for this 40 mm stroke version: cleanroom class 6 to ISO 14644-1 and reduced Cu/Zn/Ni content for lithium-ion battery production (F1a).
