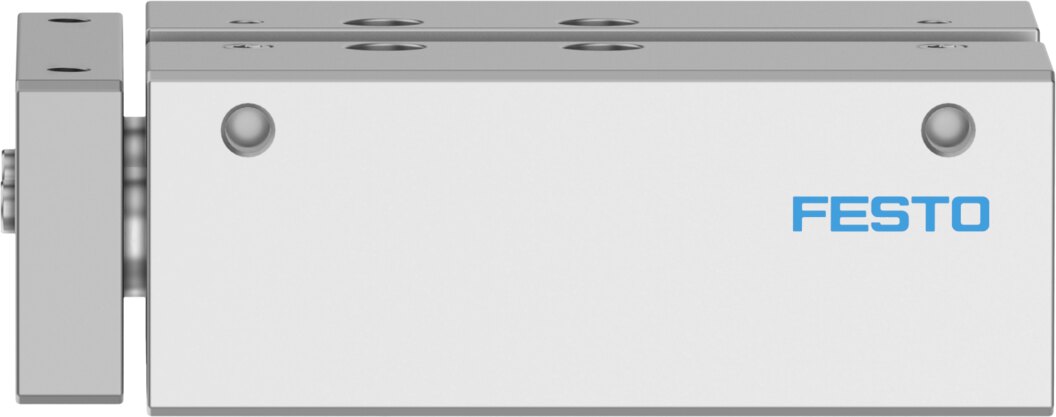

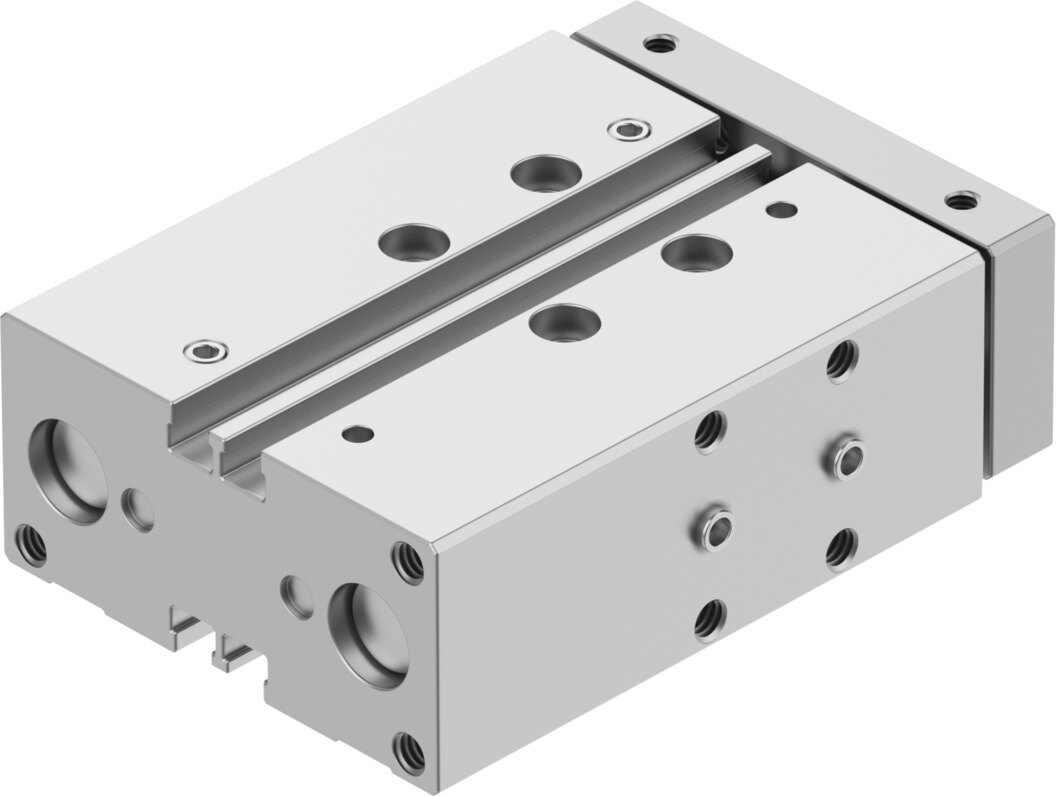

Guided drive with plain-bearing guide Ø 16 mm 25 mm stroke DFM-16-25-B-PPV-A-GF - Festo 8162430

Festo ✓ Original product Brand new

With 25 mm stroke and a 16 mm piston, the DFM-16-25-B-PPV-A-GF guided drive handles lifting and pushing tasks on a plain-bearing guide. Theoretical force at 6 bar: 121 N advance, 104 N return. Pneumatic end-position cushioning is adjustable at both ends.

Net
€282.30
excl. VAT
Item FES-8162430
Manufacturer no. DFM-16-25-B-PPV-A-GF
Save Compare
Question about this item
Datasheet (PDF)
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

At 6 bar the DFM-16-25-B-PPV-A-GF turns a theoretical 121 N into a guided linear motion over 25 mm, with a 16 mm piston.

Benefits

  • Plain-bearing guide: guide rods in plain bearings
  • Force: 121 N advance and 104 N return at 6 bar (theoretical)
  • Cleanroom and PWIS: class 6 to ISO 14644-1, PWIS-free to VDMA24364-B1/B2-L
  • Piston rod: high-alloy stainless steel
  • Cushioning: pneumatic end-position cushioning, adjustable at both ends

Applications

The DFM-16-25-B-PPV-A-GF suits lifting, stopping and pushing tasks in conveyor systems and fixture building. Operating medium for the DFM-16-25-B-PPV-A-GF is compressed air to ISO 8573-1:2010 [7:4:4], permitted ambient temperature -20 to 80 °C, any mounting position. Documented for this 25 mm stroke version: cleanroom class 6 to ISO 14644-1 and corrosion resistance class 2 for moderate corrosion stress.

Technical data

TypeDFM-16-25-B-PPV-A-GF
Festo part number8162430
Stroke25 mm
Piston diameter16 mm
Operating mode, drive unitYoke
CushioningPneumatic cushioning, adjustable at both ends
Mounting positionAny
GuidePlain-bearing guide
DesignGuidance
Position detectionVia proximity switch
Operating pressure2 to 10 bar
Mode of operationDouble-acting
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability (ISO 14644-14)Class 6 according to ISO 14644-1
Ambient temperature-20 to 80 °C
Impact energy in end positions0.15 J
Theoretical force at 6 bar, return stroke104 N
Theoretical force at 6 bar, advance stroke121 N
Alternative connectionsSee product drawing
Pneumatic connectionM5
Note on materialsRoHS compliant
Material coverWrought aluminium alloy
Material sealsNBR
Material housingWrought aluminium alloy
Material piston rodHigh-alloy stainless steel
Weight0.7 kg
ManufacturerFesto
Hersteller-NrDFM-16-25-B-PPV-A-GF
EAN4052568596033
Zolltarifnummer84123100
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
AusführungGleitführung
MaterialAluminium
ThreadM5
Piston Ø [mm]16
Stroke [mm]25
Seal materialNBR
MediumCompressed air
Functiondouble-acting
SeriesDFM
Bore (mm)16
Betriebsdruck max [bar]10
Temperaturbereich-20-80 °C
Temperature (max.)80
