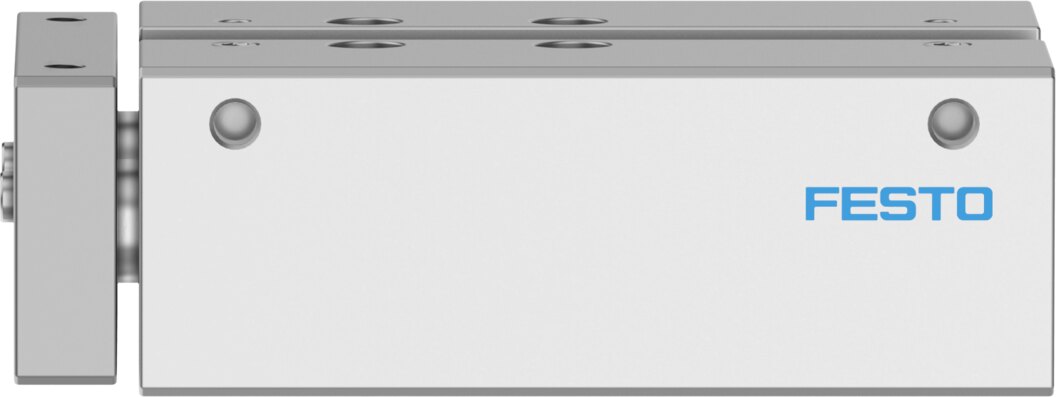

Guided drive with plain-bearing guide Ø 16 mm 30 mm stroke DFM-16-30-B-PPV-A-GF - Festo 8162431

At 6 bar the DFM-16-30-B-PPV-A-GF turns a theoretical 121 N into a guided linear motion over 30 mm, with a 16 mm piston.

Benefits

• Plain-bearing guide: guide rods in plain bearings
• Force: 121 N advance and 104 N return at 6 bar (theoretical)
• Cleanroom and PWIS: class 6 to ISO 14644-1, PWIS-free to VDMA24364-B1/B2-L
• Cushioning: pneumatic end-position cushioning, adjustable at both ends
• Piston rod: high-alloy stainless steel

Applications

Typical uses of the DFM-16-30-B-PPV-A-GF are ejecting, separating and lifting on conveyor lines and in fixtures. The DFM-16-30-B-PPV-A-GF runs on compressed air to ISO 8573-1:2010 [7:4:4] at -20 to 80 °C ambient temperature and can be mounted in any position. Documented for this 30 mm stroke version: cleanroom class 6 to ISO 14644-1 and corrosion resistance class 2 for moderate corrosion stress.
