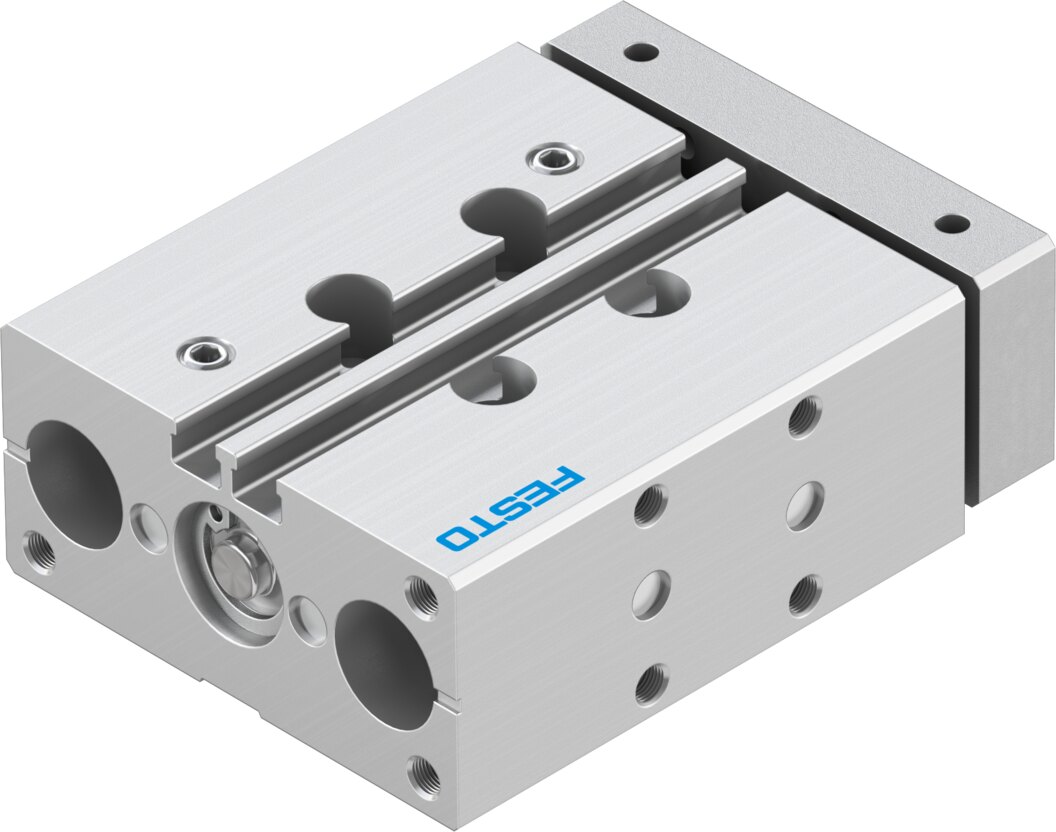

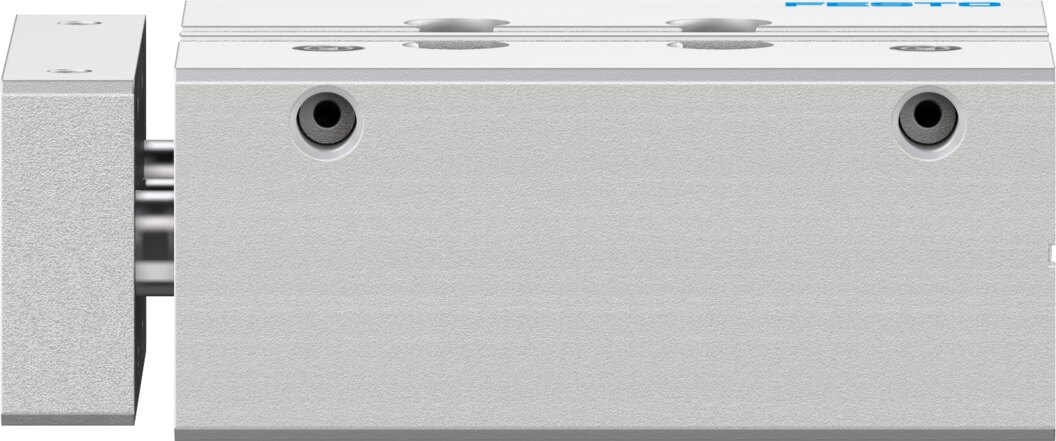

Guided drive with ball bearing guide Ø 12 mm 30 mm stroke DFM-12-30-P-A-KF-F1A - Festo 8118634

At 6 bar the DFM-12-30-P-A-KF-F1A turns a theoretical 68 N into a guided linear motion over 30 mm, with a 12 mm piston.

Benefits

• Recirculating ball bearing guide: guide rods in recirculating ball bushings, transverse force Fy up to 270 N
• Force: 68 N advance and 51 N return at 6 bar (theoretical)
• Cleanroom and PWIS: class 6 to ISO 14644-1, PWIS-free to VDMA24364-B1/B2-L
• Battery production: reduced Cu/Zn/Ni content (F1a)
• Moments: Mx up to 5.53 Nm, My/Mz up to 2.43 Nm
• Speed: up to 0.8 m/s

Applications

Typical jobs for the DFM-12-30-P-A-KF-F1A are precise lifting, pushing and positioning in assembly and handling systems. The DFM-12-30-P-A-KF-F1A runs on compressed air to ISO 8573-1:2010 [7:4:4] at -5 to 60 °C ambient temperature and can be mounted in any position. For electronics, precision or battery production, this 12 mm version offers cleanroom class 6 to ISO 14644-1 and reduced Cu/Zn/Ni content for lithium-ion battery production (F1a).
