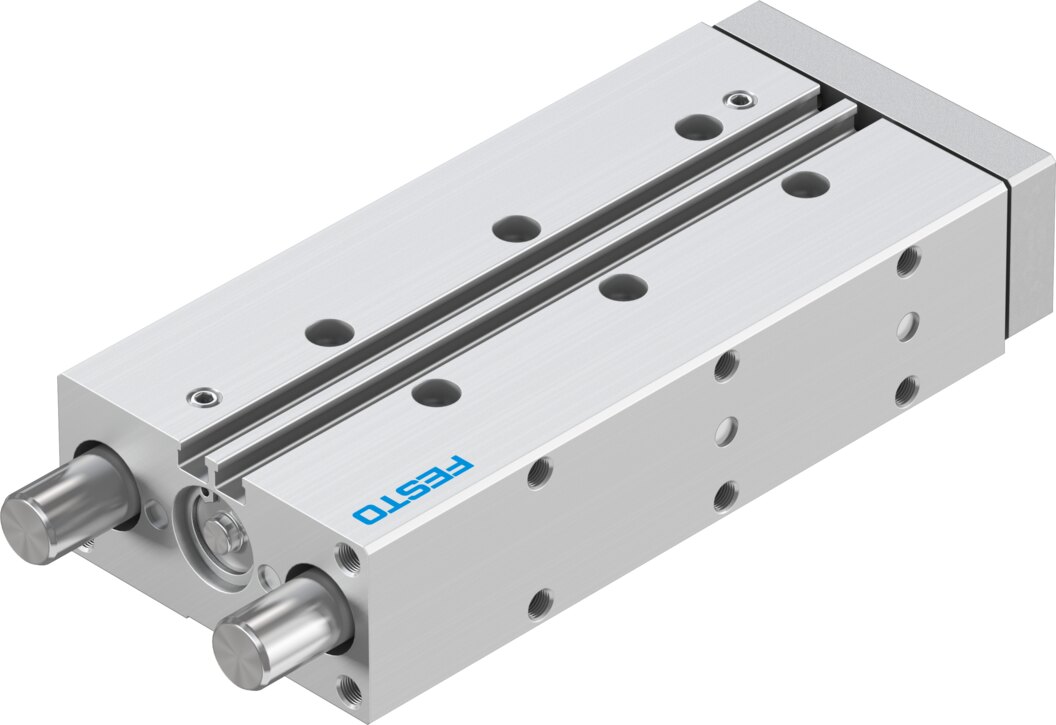

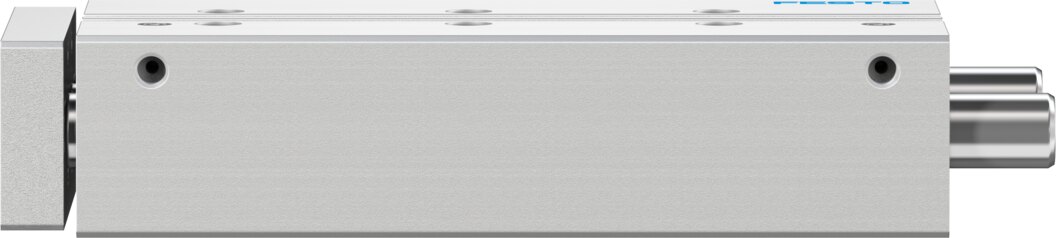

Guided drive with plain-bearing guide Ø 16 mm 100 mm stroke DFM-16-100-P-A-GF-F1A - Festo 8118829

At 6 bar the DFM-16-100-P-A-GF-F1A turns a theoretical 121 N into a guided linear motion over 100 mm, with a 16 mm piston.

Benefits

• Plain-bearing guide: guide rods in plain bearings, transverse force Fy up to 608 N
• Force: 121 N advance and 90 N return at 6 bar (theoretical)
• Piston rod: high-alloy stainless steel
• Cushioning: elastic cushioning rings at both ends, impact energy up to 0.15 J
• Speed: up to 0.8 m/s
• Moments: Mx up to 13.98 Nm, My/Mz up to 10.34 Nm

Applications

Typical uses of the DFM-16-100-P-A-GF-F1A are ejecting, separating and lifting on conveyor lines and in fixtures. Operating medium for the DFM-16-100-P-A-GF-F1A is compressed air to ISO 8573-1:2010 [7:4:4], permitted ambient temperature -20 to 80 °C, any mounting position. For electronics, precision or battery production, this 16 mm version offers cleanroom class 6 to ISO 14644-1 and reduced Cu/Zn/Ni content for lithium-ion battery production (F1a).
