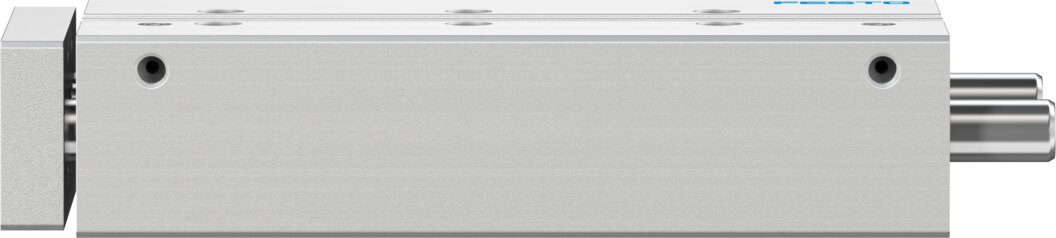

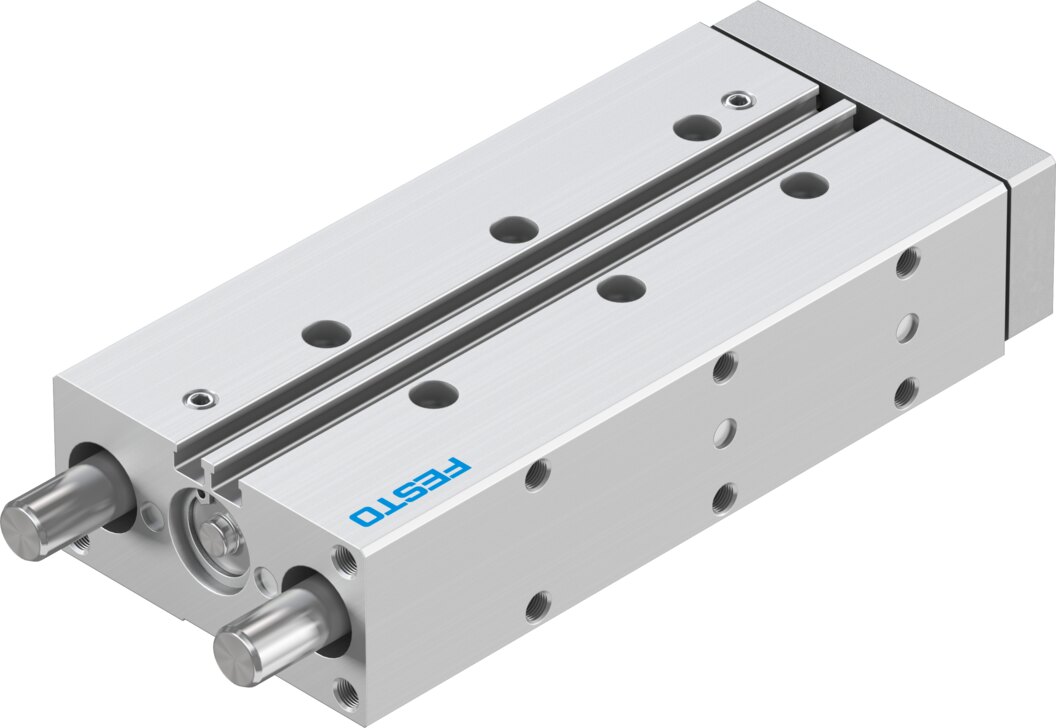

Guided drive with ball bearing guide Ø 16 mm 100 mm stroke DFM-16-100-P-A-KF-F1A - Festo 8118837

16 mm piston, 100 mm stroke and 121 N advancing force at 6 bar: the DFM-16-100-P-A-KF-F1A guided drive combines drive and guide in one ready-to-fit unit.

Benefits

• Recirculating ball bearing guide: guide rods in recirculating ball bushings, transverse force Fy up to 778 N
• Force: 121 N advance and 90 N return at 6 bar (theoretical)
• Cushioning: elastic cushioning rings at both ends, impact energy up to 0.15 J
• Piston rod: high-alloy stainless steel
• Cleanroom and PWIS: class 6 to ISO 14644-1, PWIS-free to VDMA24364-B1/B2-L
• Moments: Mx up to 17.9 Nm, My/Mz up to 10.5 Nm

Applications

Use the DFM-16-100-P-A-KF-F1A where smooth travel and accurate guidance matter for lifting, joining or ejecting parts. The DFM-16-100-P-A-KF-F1A runs on compressed air to ISO 8573-1:2010 [7:4:4] at -5 to 60 °C ambient temperature and can be mounted in any position. For electronics, precision or battery production, this 16 mm version offers cleanroom class 6 to ISO 14644-1 and reduced Cu/Zn/Ni content for lithium-ion battery production (F1a).
