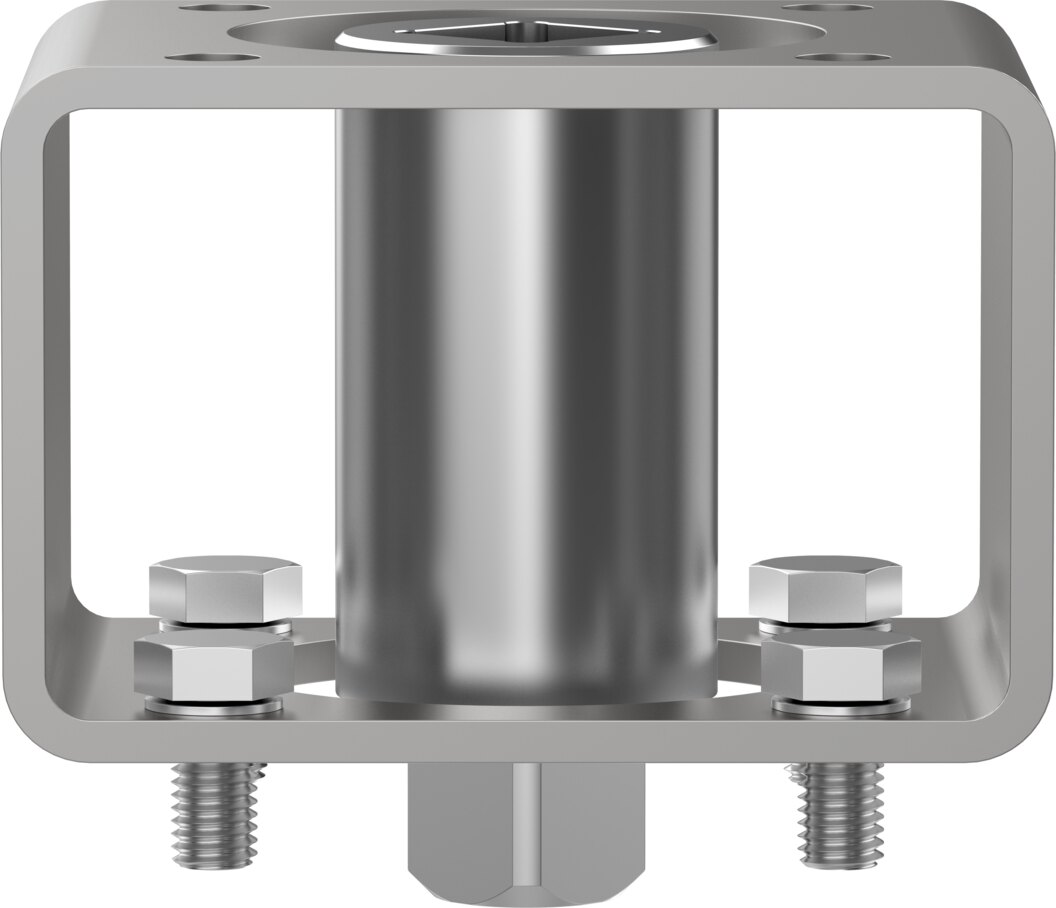

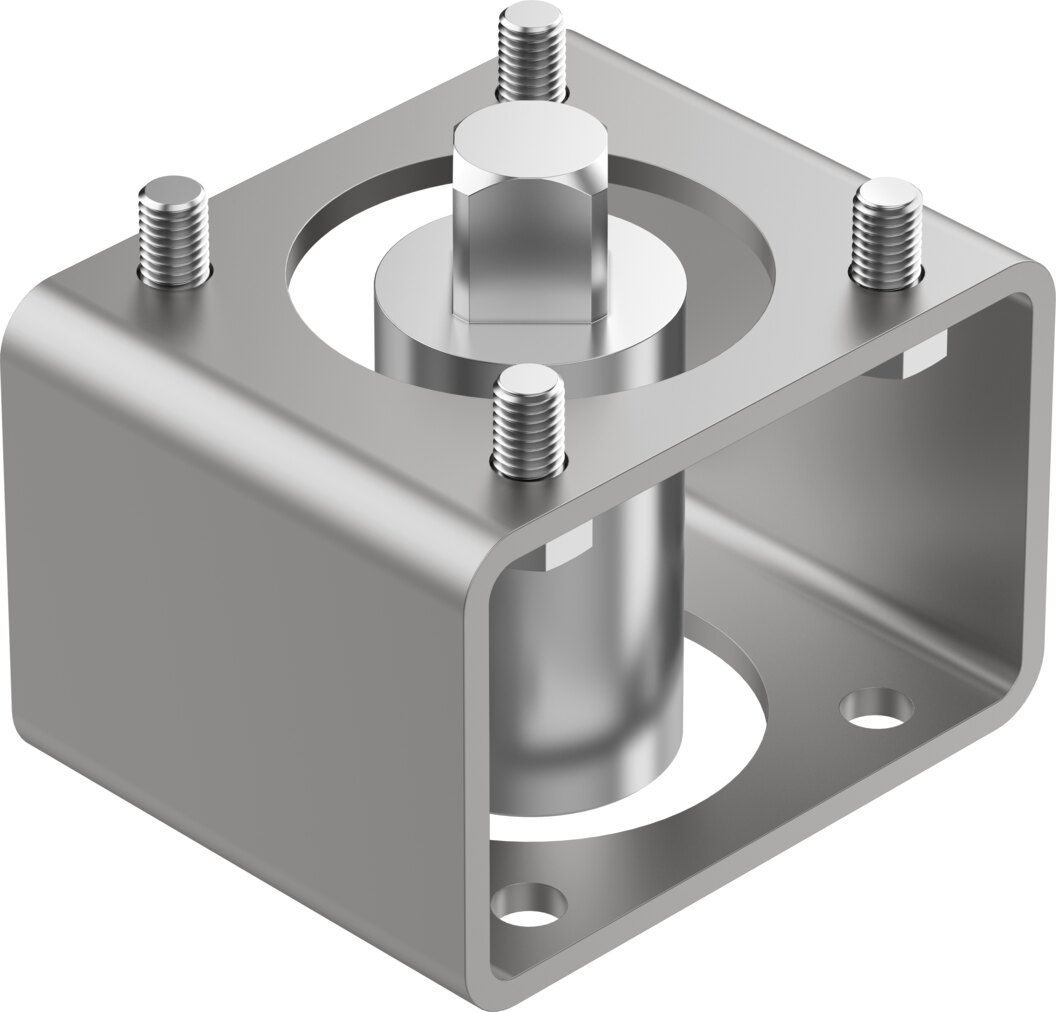

Actuator mounting kit hole pattern 10 to 10, SW22 to SW22 DARQ-K-V-F10S22-F10S22-R13 - Festo 8084198

The actuator mounting kit DARQ-K-V-F10S22-F10S22-R13 belongs to the Festo DARQ range for mounting quarter-turn actuators on valves. SW22 on the drive side meets SW22 on the reducing side. Hole patterns 10 and 10. Material mounting bridge according to Festo: steel.

At a glance

• Drive outlet SW22 with hole pattern 10, reducing outlet SW22 with hole pattern 10
• Based on ISO 5211
• Material mounting bridge: steel
• Corrosion resistance class CRC 2 - moderate corrosion stress
• LABS (PWIS) conformity VDMA24364 zone III

Typical applications

The DARQ-K-V-F10S22-F10S22-R13 is used when mounting quarter-turn actuators on process valves such as ball valves and butterfly valves.
