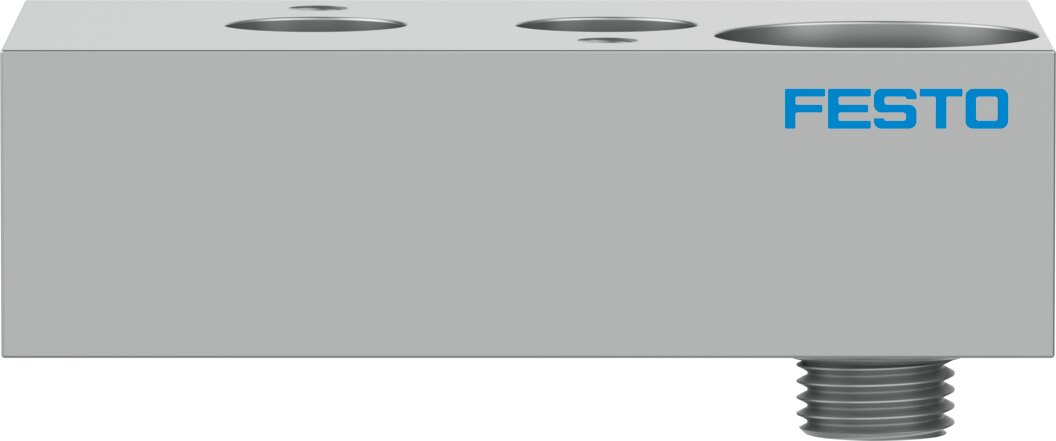

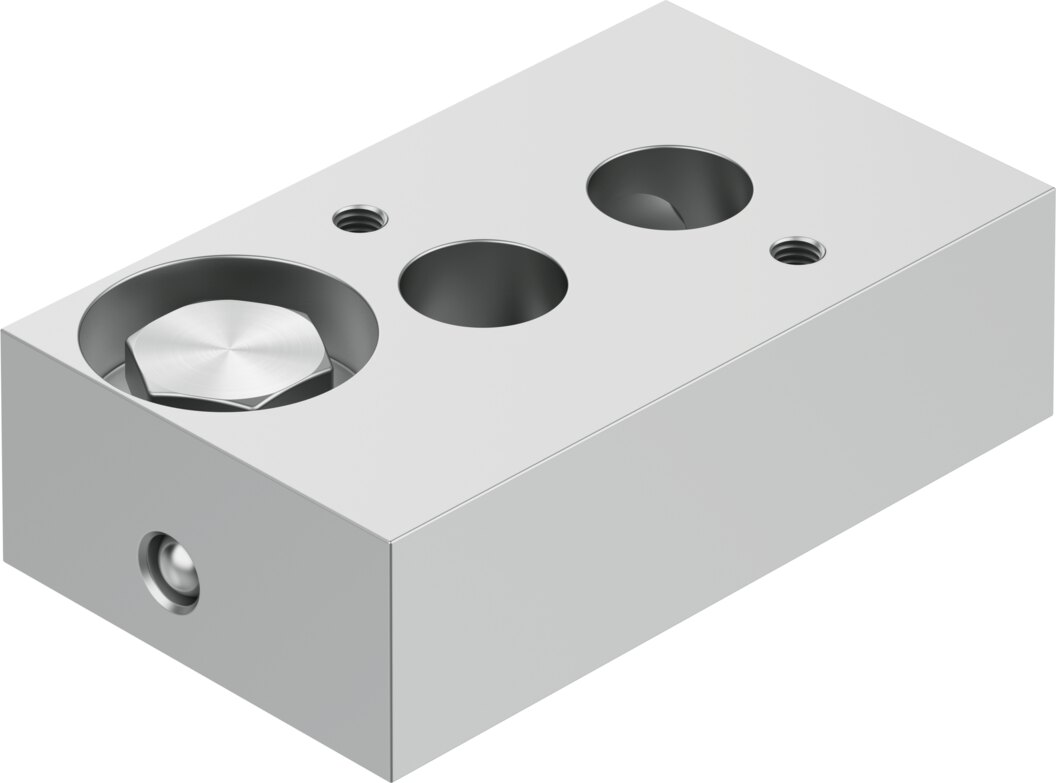

Control plate to VDI/VDE 3845 (NAMUR), port G1/4 DADG-FM-VDE1G14 - Festo 8131548

Name: Control plate to VDI/VDE 3845 (NAMUR), port G1/4 DADG-FM-VDE1G14 - Festo 8131548
Brand: Festo
SKU: FES-8131548
Price: 47.42 EUR
Availability: InStock

Festo ✓ Original product Brand new

Control plate DADG-FM-VDE1G14 connects solenoid valve and quarter-turn actuator via the VDI/VDE 3845 (NAMUR) interface. Operating pressure 2 to 8 bar, port G1/4. Housing made of anodised aluminium, screws made of nickel-plated brass.

Net

€47.42

excl. VAT

Item FES-8131548

Manufacturer no. DADG-FM-VDE1G14

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

Control plate DADG-FM-VDE1G14 connects solenoid valve and quarter-turn actuator via the VDI/VDE 3845 (NAMUR) interface. Mounting position any, ambient temperature -20 to 80 °C, weight 274.5 g.

Why this part

Interface to VDI/VDE 3845 (NAMUR)
Operating pressure 2 to 8 bar
Pneumatic connection G1/4
Mounting: direct mounting via thread on the end cap
Housing made of anodised aluminium, seals made of NBR
Ambient temperature -20 to 80 °C

Typical use

In process automation on butterfly valves and ball valves with quarter-turn actuators when the valve is to be mounted directly via the NAMUR interface.

Technical data

Order code	DADG-FM-VDE1G14
Festo part number	8131548
Based on standard	VDI/VDE 3845 (NAMUR)
Mounting position	any
Operating pressure	2 to 8 bar
Operating medium	compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	lubricated operation possible (then required for further operation)
LABS (PWIS) conformity	VDMA24364 zone III
Ambient temperature	-20 to 80 °C
Max. tightening torque	23 Nm
Product weight	274.5 g
Type of mounting	direct mounting via thread on the end cap
Pneumatic connection	G1/4
Note on materials	RoHS compliant
Material seals	NBR, high-alloy stainless steel
Material housing	anodised aluminium
Material screws	brass, nickel-plated
Customs tariff number	84819000
Weight	0.28 kg
Manufacturer	Festo
Hersteller-Nr	DADG-FM-VDE1G14
EAN	4052568563172
Zolltarifnummer	84819000
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Thread	G 1/4
Medium	Compressed air
Series	DADG
Betriebsdruck max [bar]	8
Temperaturbereich	-20-80 °C
Temperature (max.)	80
