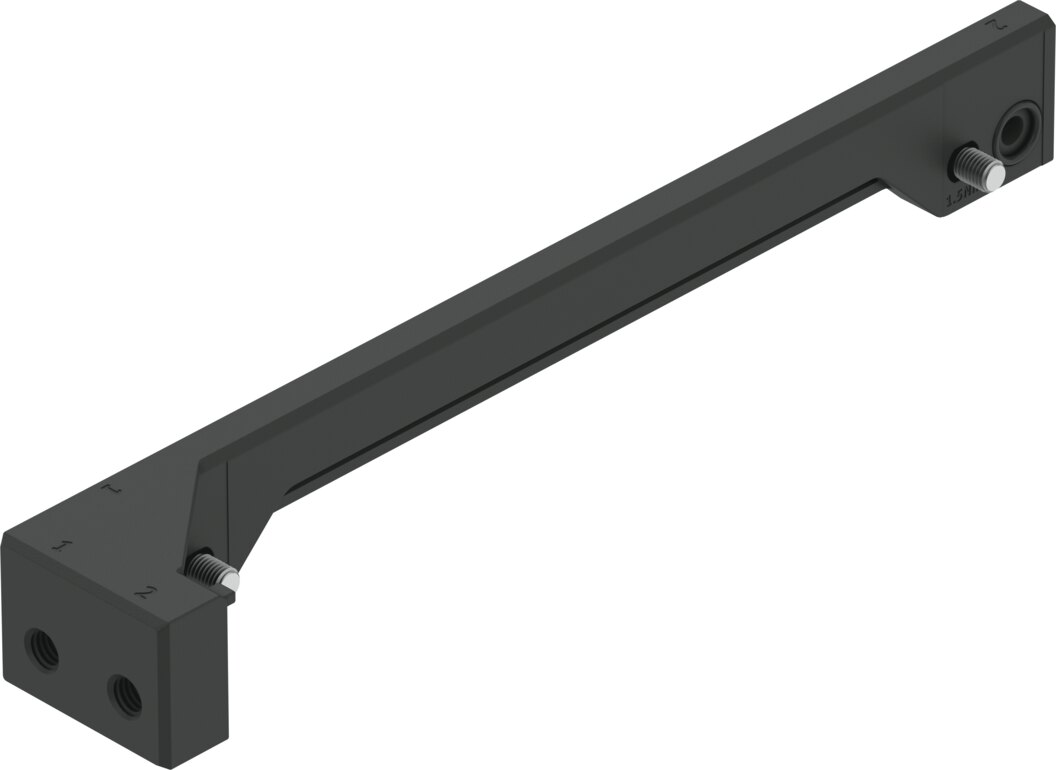

Connection kit size 25, stroke 100 mm, port G1/8 DADG-AK-G8-25-100 - Festo 8159816
Connection kit DADG-AK-G8-25-100 supplies compressed air for size 25 and stroke 100 mm via a G1/8 port. Operating pressure 1 to 8 bar, max. tightening torque 5 Nm, adapter made of epoxy resin. PWIS-compliant to VDMA24364-B1/B2-L, weight 59 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Size 25 and stroke 100 mm determine the choice: DADG-AK-G8-25-100 is designed for exactly that. The epoxy resin adapter is tightened to max. 5 Nm, weight 59 g.
Key benefits
- Port G1/8, max. tightening torque 3 Nm
- Mounting with max. 5 Nm tightening torque, tolerance ± 10 %
- Operating pressure 1 to 8 bar
- Adapter made of epoxy resin, seals made of FPM
- Corrosion resistance class CRC 1, rated for low corrosion stress
- Ambient temperature -10 to 60 °C
Applications
In new builds and maintenance of pneumatic axes, including automotive paint shops thanks to PWIS conformity.
Technical data
| Order code | DADG-AK-G8-25-100 |
|---|---|
| Festo part number | 8159816 |
| Size | 25 |
| Stroke | 100 mm |
| Operating pressure | 1 to 8 bar |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10 to 60 °C |
| Max. tightening torque | 5 Nm |
| Tightening torque tolerance | ± 10 % |
| Max. tightening torque, pneumatic port 1 | 3 Nm |
| Product weight | 59 g |
| Pneumatic connection | G1/8 |
| Material adapter | epoxy resin |
| Material seals | FPM |
| Material screws | steel, coated |
| Customs tariff number | 84129070 |
| Weight | 0.055 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DADG-AK-G8-25-100 |
| EAN | 4052568585945 |
| Zolltarifnummer | 84129070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/8 |
| Seal material | FPM |
| Medium | Compressed air |
| Series | DADG |
| Betriebsdruck max [bar] | 8 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
