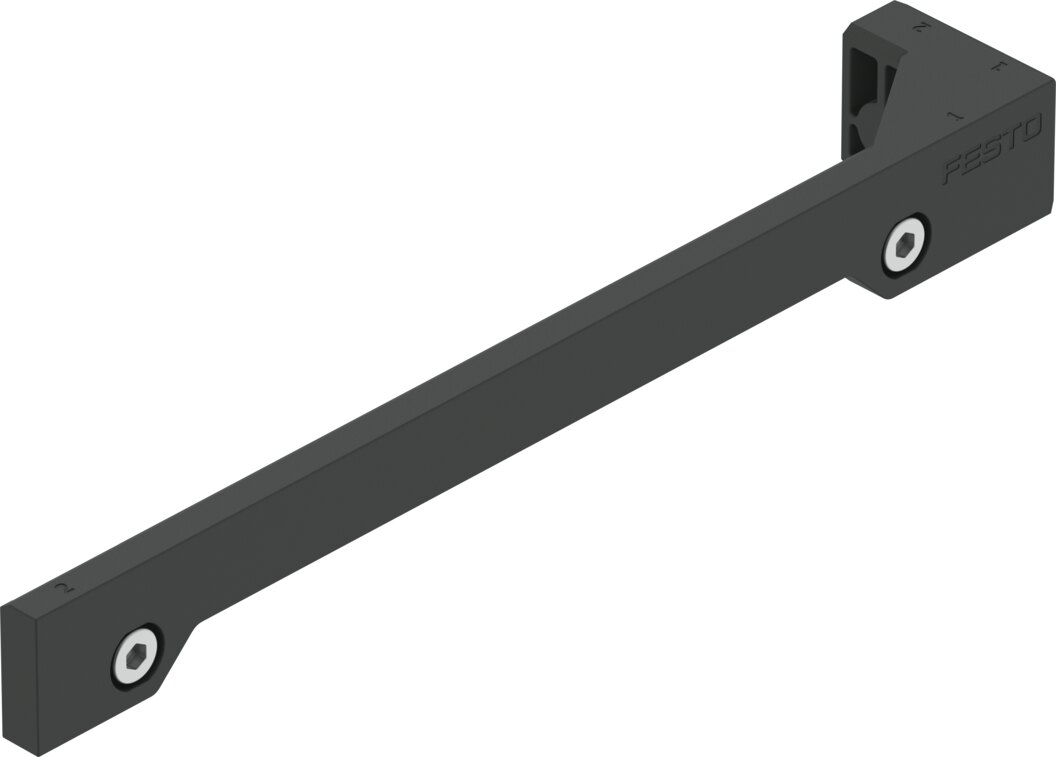

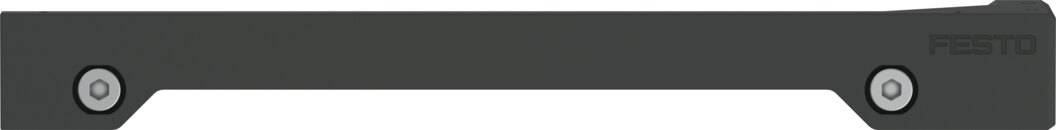

Connection kit DADG-AK-G8-12-100 - Festo 8152379
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | 12 |
|---|---|
| Stroke | 100 mm |
| Operating pressure | 1 ... 8 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10 ... 60 °C |
| Max. tightening torque | 1.5 Nm |
| Tolerance for tightening torque | ±10% |
| Max. tightening torque pneumatic connection 1 | 0.7 Nm |
| Product weight | 19.2 g |
| Pneumatic connection | M5 |
| Material adapter | Epoxy resin |
| Material seals | NBR |
| Material screws | Coated steel |
| Weight | 0.038 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DADG-AK-G8-12-100 |
| EAN | 4052568585723 |
| Zolltarifnummer | 84129070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
