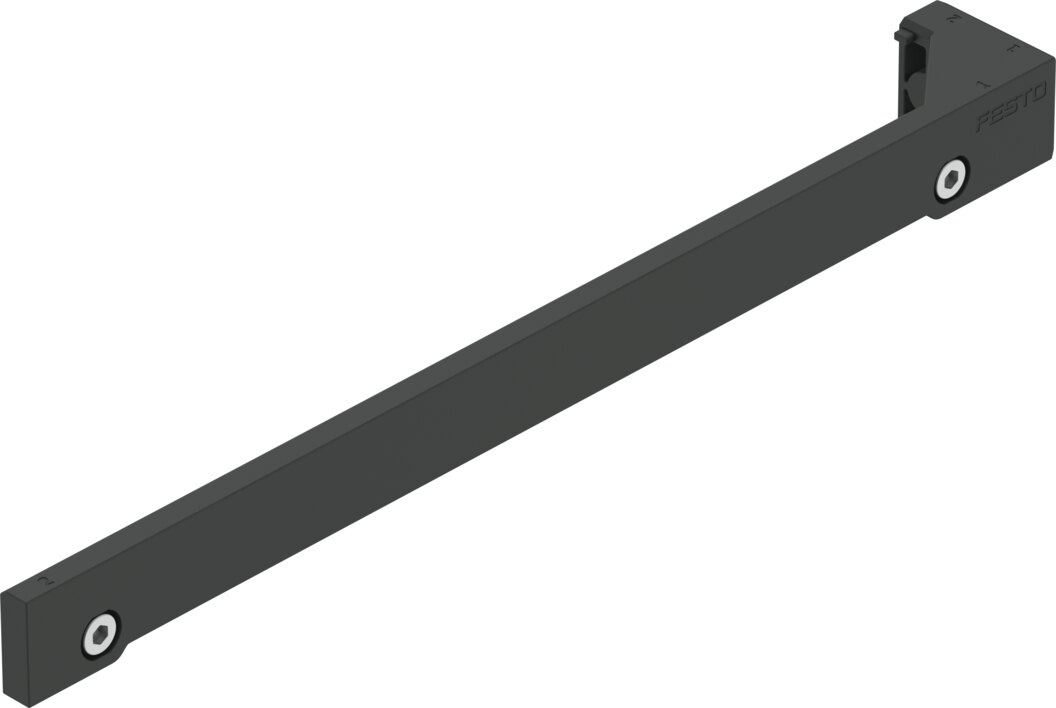

Connection kit size 16, stroke 150 mm, port M5 DADG-AK-G8-16-150 - Festo 8159794

DADG-AK-G8-16-150 provides the M5 pneumatic connection for size 16 with a stroke of 150 mm. The kit weighs 31 g and is designed for compressed air to ISO 8573-1:2010 [7:4:4].

Why this part

• Port M5, max. tightening torque 0.7 Nm
• Mounting with max. 1.5 Nm tightening torque, tolerance ± 10 %
• Operating pressure 1 to 8 bar
• Adapter made of epoxy resin, seals made of NBR
• Corrosion resistance class CRC 1, rated for low corrosion stress
• Ambient temperature -10 to 60 °C

Typical use

In new builds and maintenance of pneumatic axes, including automotive paint shops thanks to PWIS conformity.
