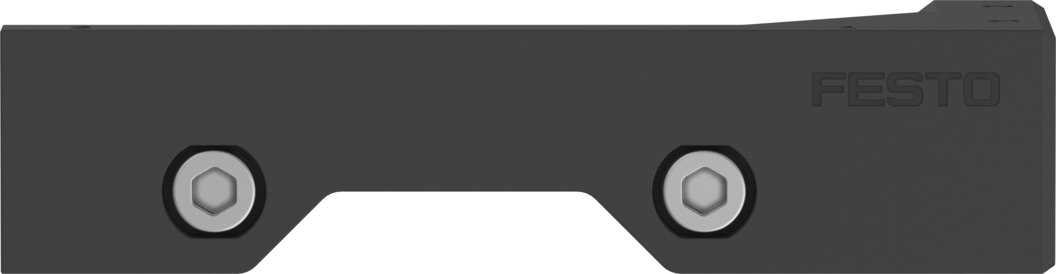

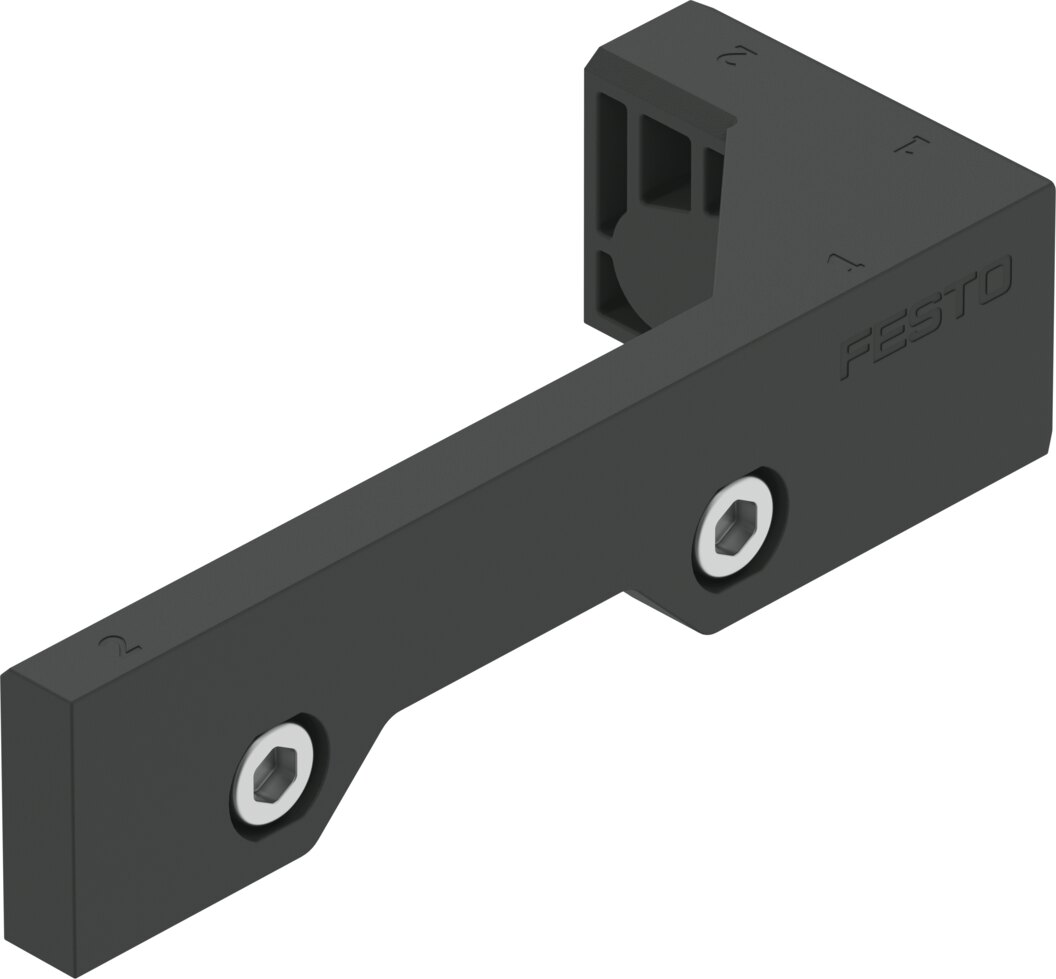

Connection kit size 25, stroke 50 mm, port G1/8 DADG-AK-G8-25-50 - Festo 8152400

Name: Connection kit size 25, stroke 50 mm, port G1/8 DADG-AK-G8-25-50 - Festo 8152400
Brand: Festo
SKU: FES-8152400
Price: 148.74 EUR
Availability: InStock

Festo ✓ Original product Brand new

Connection kit DADG-AK-G8-25-50 supplies compressed air for size 25 and stroke 50 mm via a G1/8 port. Operating pressure 1 to 8 bar, max. tightening torque 5 Nm, adapter made of epoxy resin. PWIS-compliant to VDMA24364-B1/B2-L, weight 47.5 g.

Net

€148.74

excl. VAT

Item FES-8152400

Manufacturer no. DADG-AK-G8-25-50

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

Size 25 and stroke 50 mm determine the choice: DADG-AK-G8-25-50 is designed for exactly that. The epoxy resin adapter is tightened to max. 5 Nm, weight 47.5 g.

Why this part

Port G1/8, max. tightening torque 3 Nm
Mounting with max. 5 Nm tightening torque, tolerance ± 10 %
Operating pressure 1 to 8 bar
Adapter made of epoxy resin, seals made of FPM
Corrosion resistance class CRC 1, rated for low corrosion stress
Ambient temperature -10 to 60 °C

Typical use

In new builds and maintenance of pneumatic axes, including automotive paint shops thanks to PWIS conformity.

Technical data

Order code	DADG-AK-G8-25-50
Festo part number	8152400
Size	25
Stroke	50 mm
Operating pressure	1 to 8 bar
Operating medium	compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC	1 - low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10 to 60 °C
Max. tightening torque	5 Nm
Tightening torque tolerance	± 10 %
Max. tightening torque, pneumatic port 1	3 Nm
Product weight	47.5 g
Pneumatic connection	G1/8
Material adapter	epoxy resin
Material seals	FPM
Material screws	steel, coated
Customs tariff number	84129070
Weight	0.065 kg
Manufacturer	Festo
Hersteller-Nr	DADG-AK-G8-25-50
EAN	4052568585877
Zolltarifnummer	84129070
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Thread	G 1/8
Seal material	FPM
Medium	Compressed air
Series	DADG
Betriebsdruck max [bar]	8
Temperaturbereich	-10-60 °C
Temperature (max.)	60
