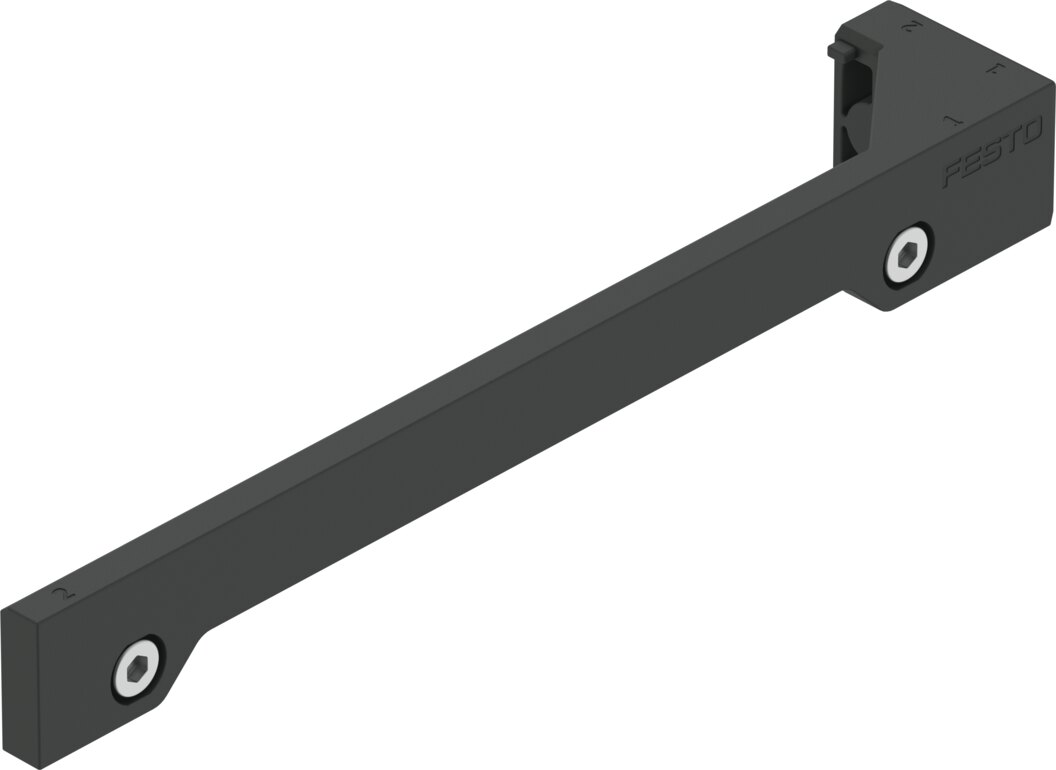

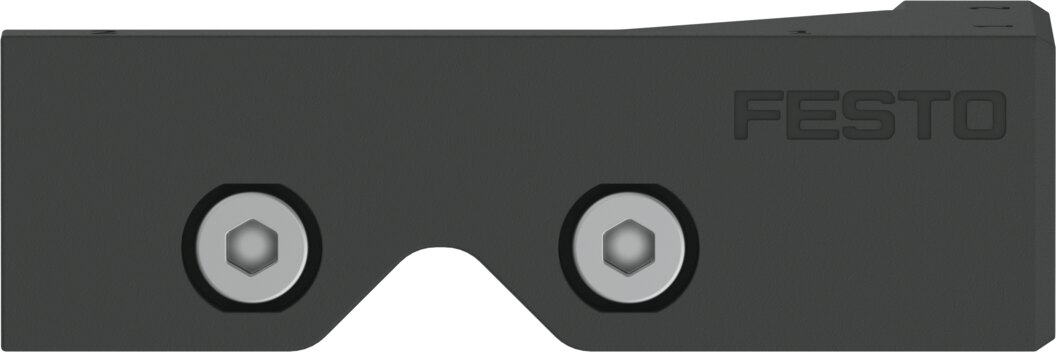

Connection kit size 16, stroke 10 mm, port M5 DADG-AK-G8-16-10 - Festo 8152380

Name: Connection kit size 16, stroke 10 mm, port M5 DADG-AK-G8-16-10 - Festo 8152380
Brand: Festo
SKU: FES-8152380
Price: 59.54 EUR
Availability: InStock

Festo ✓ Original product Brand new

Connection kit DADG-AK-G8-16-10 supplies compressed air for size 16 and stroke 10 mm via a M5 port. Operating pressure 1 to 8 bar, max. tightening torque 1.5 Nm, adapter made of epoxy resin. PWIS-compliant to VDMA24364-B1/B2-L, weight 12.9 g.

Net

€59.54

excl. VAT

Item FES-8152380

Manufacturer no. DADG-AK-G8-16-10

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

Size 16 and stroke 10 mm determine the choice: DADG-AK-G8-16-10 is designed for exactly that. The epoxy resin adapter is tightened to max. 1.5 Nm, weight 12.9 g.

Benefits

Port M5, max. tightening torque 0.7 Nm
Mounting with max. 1.5 Nm tightening torque, tolerance ± 10 %
Operating pressure 1 to 8 bar
Adapter made of epoxy resin, seals made of NBR
Corrosion resistance class CRC 1, rated for low corrosion stress
Ambient temperature -10 to 60 °C

Where it is used

In new builds and maintenance of pneumatic axes, including automotive paint shops thanks to PWIS conformity.

Technical data

Order code	DADG-AK-G8-16-10
Festo part number	8152380
Size	16
Stroke	10 mm
Operating pressure	1 to 8 bar
Operating medium	compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC	1 - low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10 to 60 °C
Max. tightening torque	1.5 Nm
Tightening torque tolerance	± 10 %
Max. tightening torque, pneumatic port 1	0.7 Nm
Product weight	12.9 g
Pneumatic connection	M5
Material adapter	epoxy resin
Material seals	NBR
Material screws	steel, coated
Customs tariff number	84129070
Weight	0.02 kg
Manufacturer	Festo
Hersteller-Nr	DADG-AK-G8-16-10
EAN	4052568585730
Zolltarifnummer	84129070
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Thread	M5
Seal material	NBR
Medium	Compressed air
Series	DADG
Betriebsdruck max [bar]	8
Temperaturbereich	-10-60 °C
Temperature (max.)	60
