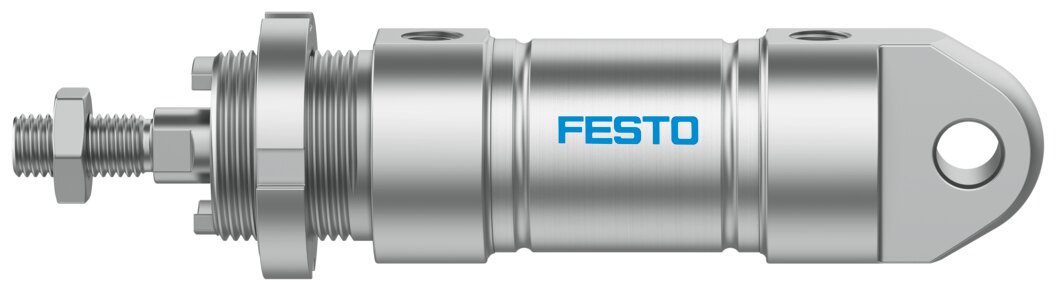

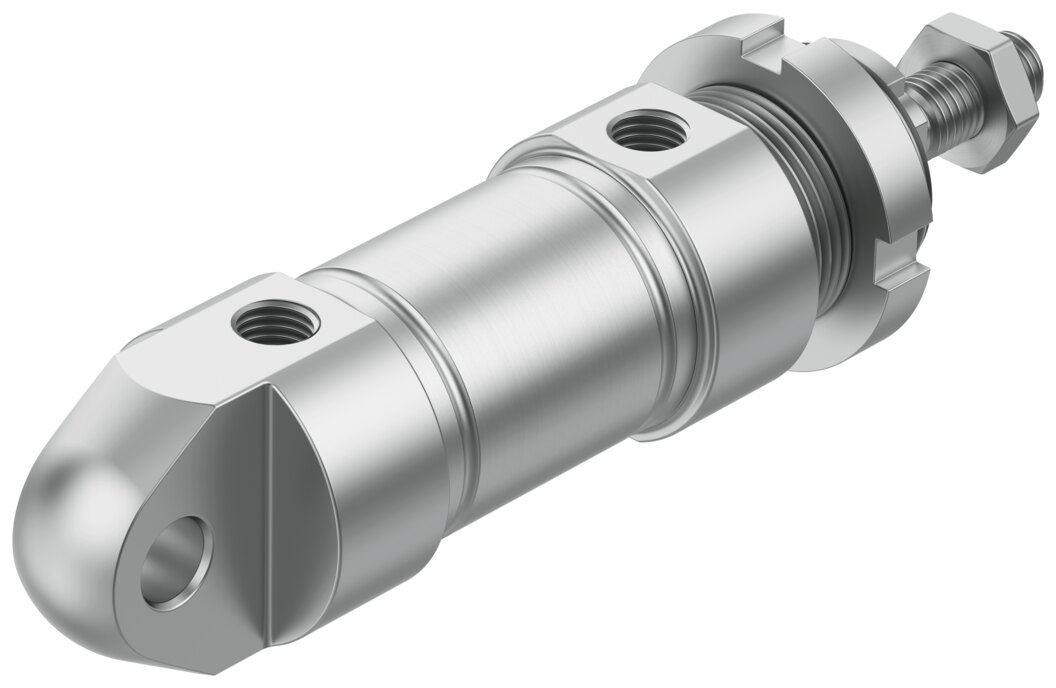

Stainless steel round cylinder, double-acting, Ø 32 mm stroke 10 mm CRDSNU-32-10-PPV-A - Festo 610437

The Festo stainless steel cylinder CRDSNU-32-10-PPV-A is double-acting with a 32 mm piston and 10 mm stroke. The barrel of the CRDSNU series is made of high-alloy stainless steel.

Benefits

• Piston Ø 32 mm and stroke 10 mm, defined by the order code CRDSNU-32-10-PPV-A
• Pneumatic end-position cushioning PPV, adjustable at both ends
• Prepared for proximity switches to sense the end positions (code A in the type)
• Weight 0.8 kg

Applications

Typical jobs for the CRDSNU-32-10-PPV-A are clamping, pushing and locking with 10 mm stroke in machines that are cleaned wet on a regular basis.
