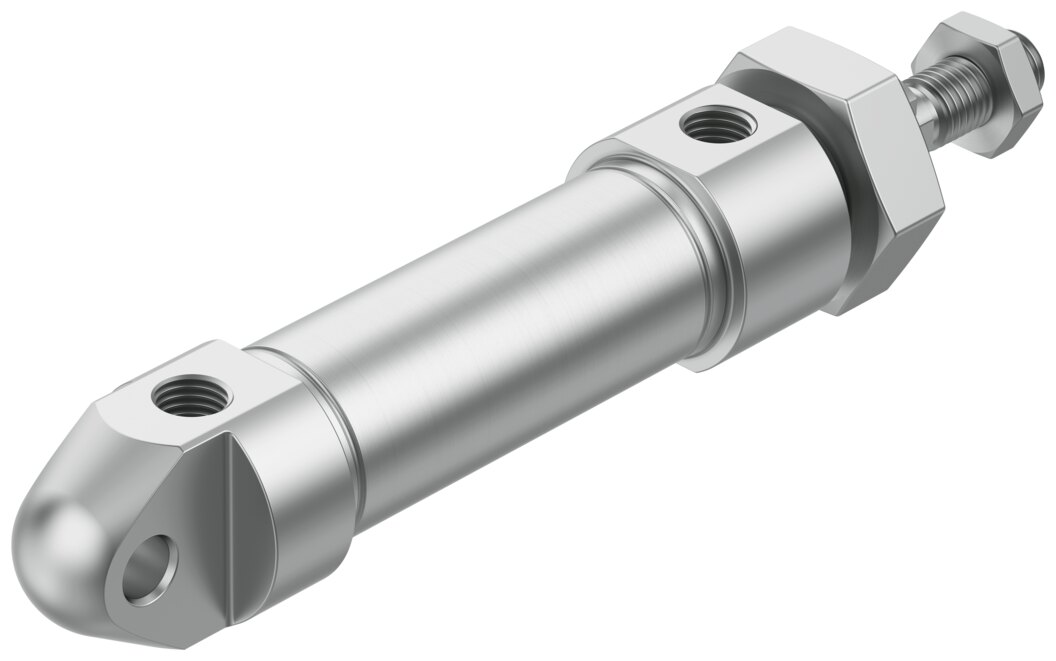

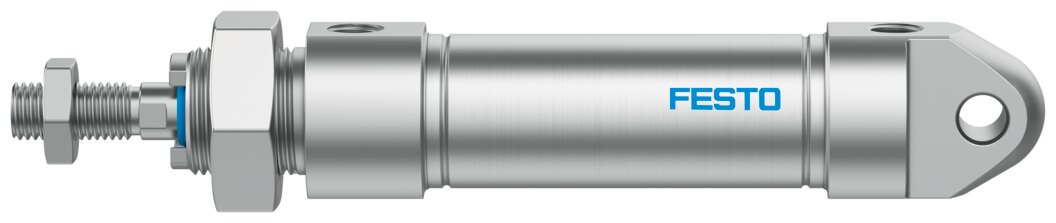

Stainless steel standards-based cylinder, double-acting, Ø 25 mm stroke 40 mm CRDSNU-25-40-PPV-A - Festo 610435

The Festo stainless steel cylinder CRDSNU-25-40-PPV-A is double-acting with a 25 mm piston and 40 mm stroke. The barrel of the CRDSNU series is made of high-alloy stainless steel.

Benefits

• Piston Ø 25 mm and stroke 40 mm, defined by the order code CRDSNU-25-40-PPV-A
• Pneumatic end-position cushioning PPV, adjustable at both ends
• Prepared for proximity switches to sense the end positions (code A in the type)
• Weight 0.55 kg

Applications

The CRDSNU-25-40-PPV-A is used in packaging and filling machines, wet areas and outdoor installations. Its 40 mm stroke handles ejecting, positioning and clamping.
