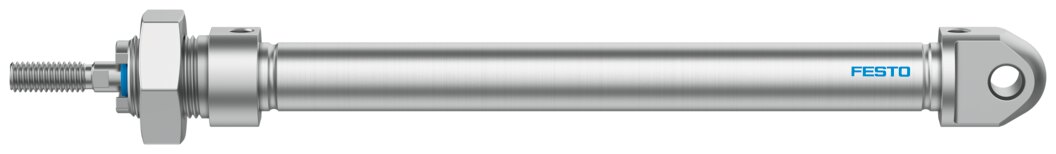

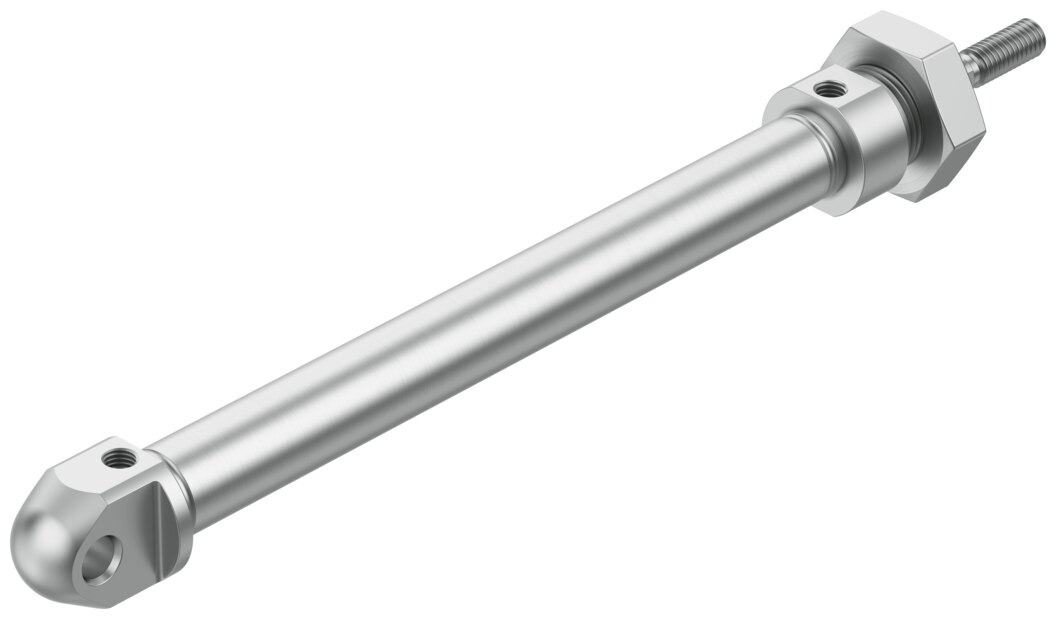

Stainless steel standards-based cylinder, double-acting, Ø 12 mm stroke 100 mm CRDSNU-12-100-P-A - Festo 8152529

68 N advancing force at 6 bar, 100 mm stroke and a stainless steel body: the Festo CRDSNU-12-100-P-A meets corrosion resistance class CRC 3. It is double-acting with a 12 mm piston.

Benefits

• Barrel, covers and piston rod in stainless steel, corrosion resistance class CRC 3
• Theoretical force at 6 bar: 68 N advance, 51 N return
• Conforms to ISO 6432, so standard mounting accessories fit
• Elastic cushioning rings at both ends (P), permissible impact energy 0.07 J
• Cleanroom-suitable, class 5 to ISO 14644-1
• Operating pressure 1 to 10 bar

Applications

The CRDSNU-12-100-P-A is used in packaging and filling machines, wet areas and outdoor installations. Its 100 mm stroke handles ejecting, positioning and clamping.
