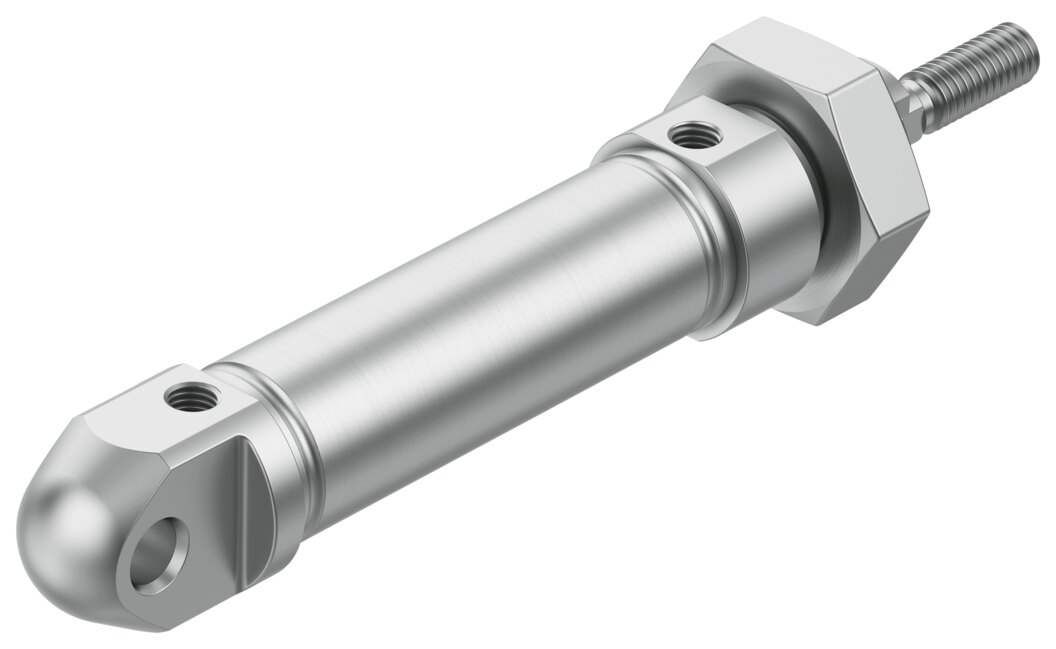

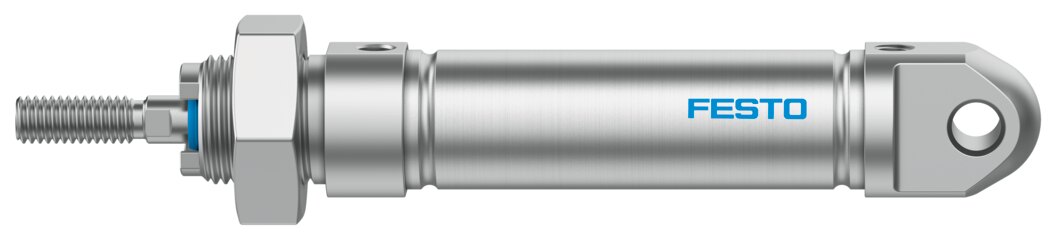

Stainless steel standards-based cylinder, double-acting, Ø 16 mm stroke 20 mm CRDSNU-16-20-P-A - Festo 8152550

The stainless steel cylinder CRDSNU-16-20-P-A is made for environments where aluminium cylinders would suffer: corrosion resistance class CRC 3, piston rod and barrel in stainless steel. With a 16 mm piston and 20 mm stroke it pushes with 121 N at 6 bar.

Benefits

• Barrel, covers and piston rod in stainless steel, corrosion resistance class CRC 3
• Theoretical force at 6 bar: 121 N advance, 104 N return
• Cleanroom-suitable, class 5 to ISO 14644-1
• Elastic cushioning rings at both ends (P), permissible impact energy 0.15 J
• Conforms to ISO 6432, so standard mounting accessories fit
• Operating pressure 1 to 10 bar

Applications

The CRDSNU-16-20-P-A fits machines in food, beverage and pharmaceutical production and anywhere moisture and cleaning would wear a standard cylinder. With 20 mm stroke it covers pushing, lifting and locking.
