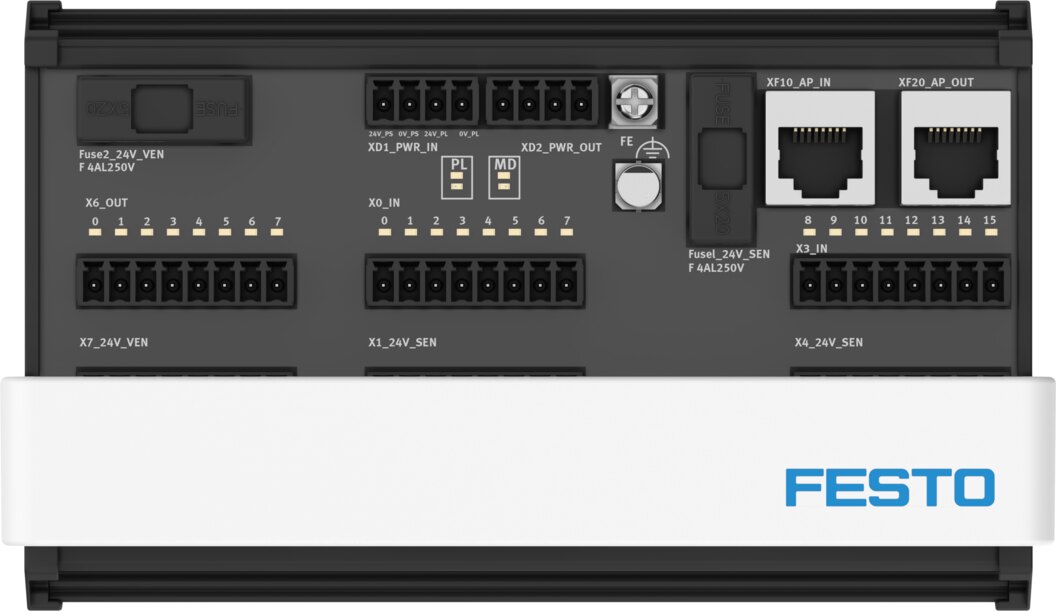

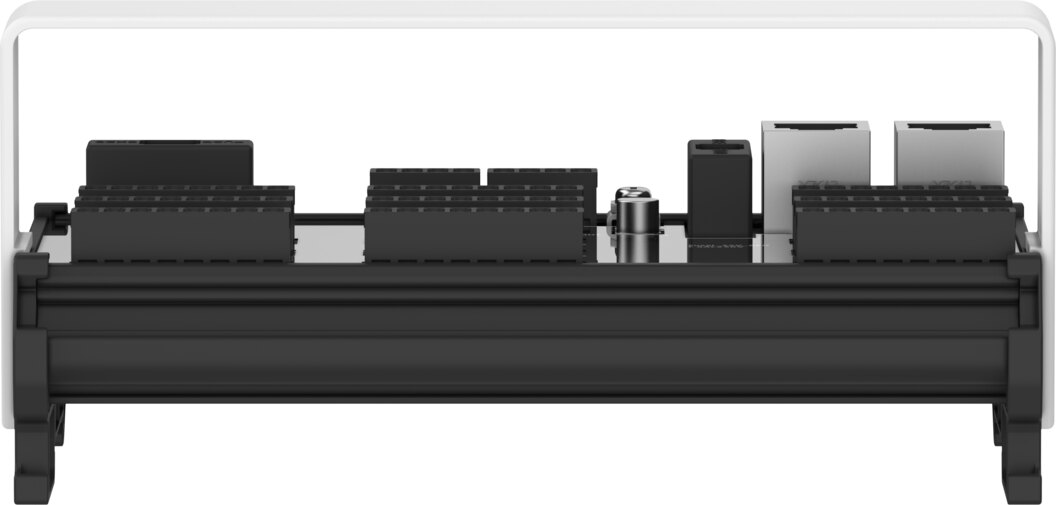

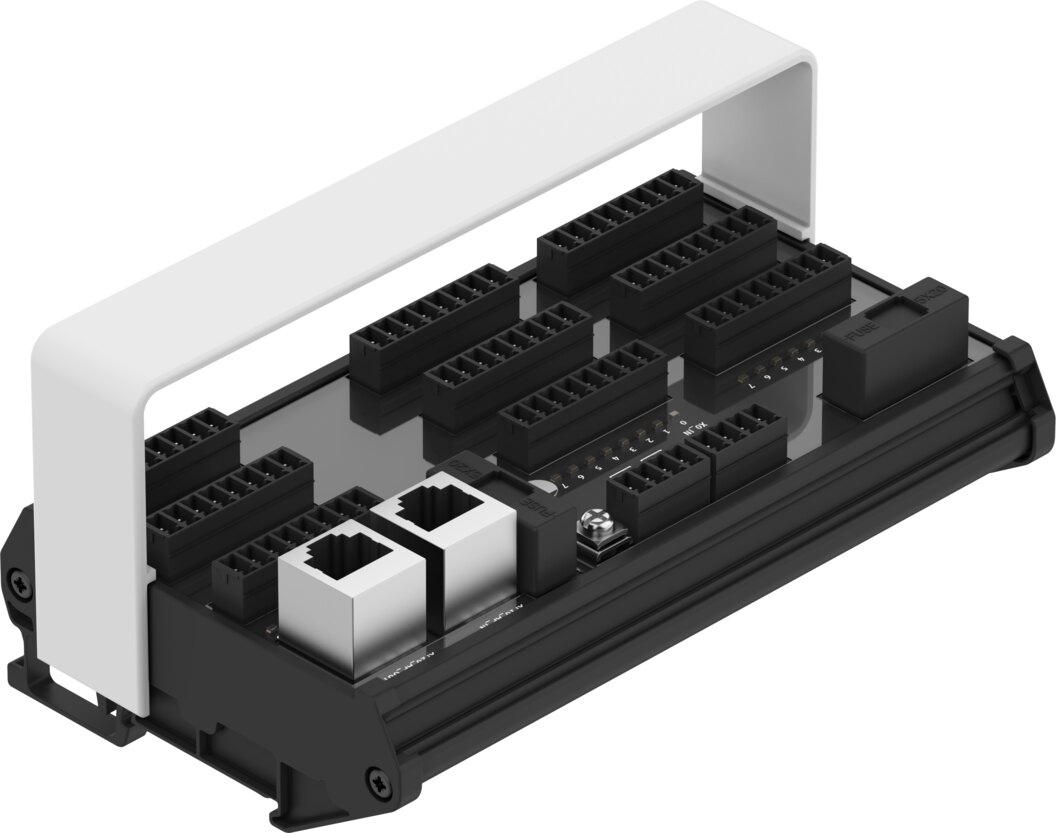

Digital input/output module for CPX-AP-L, 16 inputs, 8 outputs, 24 V DC CPX-AP-L-16NDI8NDO-PI - Festo 8176415
The digital input/output module CPX-AP-L-16NDI8NDO-PI acquires and switches signals locally in the CPX-AP-L system. The data sheet lists 16 inputs, 8 outputs and nominal operating voltage 24 V DC. Further data: power failure bridging 10 ms and reverse polarity protection.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The digital input/output module CPX-AP-L-16NDI8NDO-PI acquires and switches signals locally in the CPX-AP-L system. The main data are 16 inputs and 8 outputs.
Advantages
- 16 inputs
- 8 outputs
- Nominal operating voltage 24 V DC
- Power failure bridging 10 ms
- Integrated reverse polarity protection
- IP20 degree of protection
Application
CPX-AP-L-16NDI8NDO-PI is used when designing, extending and maintaining installations with the CPX-AP-L system.
Technical data
| Type | CPX-AP-L-16NDI8NDO-PI |
|---|---|
| Festo part number | 8176415 |
| Protocol | AP |
| Dimensions (W x L x H) | 90 mm x 152 mm x 70 mm |
| Type of mounting | via DIN rail |
| Product weight | 200 g |
| Ambient temperature | -20 to 50 °C |
| Storage temperature | -40 to 70 °C |
| Relative air humidity | 5 - 95%, Non-condensing |
| Degree of protection | IP20 |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| Vibration resistance | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Pollution degree | 2 |
| Overvoltage category | II |
| Max. cable length | 30 m outputs, 30 m inputs, 50 m system communication |
| Note on max. cable length | Power supply according to nominal voltage |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Cleanroom suitability, measured according to ISO 14644-14 | Element installed statically, no meaningful evaluation possible according to ISO 14644-1 |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| KC mark | KC-EMV |
| Approval | RCM |
| Note on materials | RoHS compliant, Free of halogen |
| Material housing | PA66, PVC |
| Diagnostics via LED | Diagnostics per module, Load power supply, Status per channel |
| Diagnostics per internal communication | Short-circuit/overload in output signal, Short circuit/overload in sensor supply, Electronics/sensors overvoltage, Load overvoltage, Electronics/sensors undervoltage, Load undervoltage |
| Max. address volume, inputs | 2 byte |
| Max. address volume, outputs | 1 byte |
| Number of outputs | 8 |
| Communication interface, function | System communication XF10 IN / XF20 OUT |
| Communication interface, connection type | 2x socket |
| Communication interface, connection technology | RJ45 |
| Communication interface, number of pins/cores | 8 |
| Communication interface, protocol | AP |
| Communication interface, screened | Yes |
| Power supply, function | Incoming electronics/sensors and load |
| Power supply, connection type | Socket |
| Power supply, connection system | Push-pull according to IEC 61984 |
| Power supply, number of pins/wires | 4 |
| Power transmission, function | Outgoing electronics/sensors and load |
| Power transmission, connection type | Socket |
| Power transmission, connection technology | Push-pull according to IEC 61984 |
| Power transmission, number of pins/wires | 4 |
| Note regarding operating voltage | SELV/PELV fixed power supplies required, Note the voltage drop |
| Nominal operating voltage DC | 24 V |
| Nominal operating voltage DC of load | 24 V |
| Permissible voltage fluctuation of load | ± 25 % |
| Nominal DC operating voltage, electronics/sensors | 24 V |
| Permissible voltage fluctuations for electronics/sensors | ± 25 % |
| Max. power supply | 2 x 4 A (external fuse required) |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 32 mA |
| Intrinsic current consumption at nominal operating voltage load | Typically 11 mA |
| Power failure bridging | 10 ms |
| Reverse polarity protection | Yes |
| Electrical connection input, function | Digital input |
| Electrical connection input, connection type | 6x socket |
| Electrical connection input, connector system | Push-pull according to IEC 61984 |
| Electrical connection input, number of connections/cores | 8 |
| Number of inputs | 16 |
| Characteristic for inputs | To IEC 61131-2, type 3 |
| Switching level | Signal 0: (PS - 5 V) to PS, Signal 1: 0 V to (PS - 11 V) |
| Switching logic for inputs | NPN (negative switching), 2-wire sensors to IEC 61131-2, 3-wire sensors to IEC 61131-2 |
| Input debounce time | 0.1 ms, 3 ms (standard), 10 ms, 20 ms |
| Fuse protection of inputs (short circuit) | Glass cartridge fuse |
| Max. residual current of inputs per module | 4 A |
| Electrical isolation of inputs between channels | No |
| Electrical isolation of inputs between channel - internal communication | No |
| Electrical connection output, function | Digital output |
| Electrical connection output, connection type | 3x socket |
| Electrical connection output, connector system | Push-pull according to IEC 61984 |
| Electrical connection output, number of connections/cores | 8 |
| Characteristic for outputs | To IEC 61131-2, type 0.5 |
| Switching logic for outputs | NPN (negative switching) |
| Output delay with ohmic load | Signal change 0->1: < 200 µs, Signal change 1->0: < 200 µs |
| Max. residual current outputs per module | 4 A |
| Electrical isolation of outputs between channels | No |
| Electrical isolation of outputs between channel - internal communication | Yes |
| Max. power supply per channel | 0.5 A |
| Weight | 0.31 kg |
| Manufacturer | Festo |
| Hersteller-Nr | CPX-AP-L-16NDI8NDO-PI |
| EAN | 4052568772611 |
| Zolltarifnummer | 85389099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Operating voltage | 24 V DC |
| Protection rating | IP20 |
| Temperaturbereich | -20-50 °C |
| Temperature (max.) | 50 |
