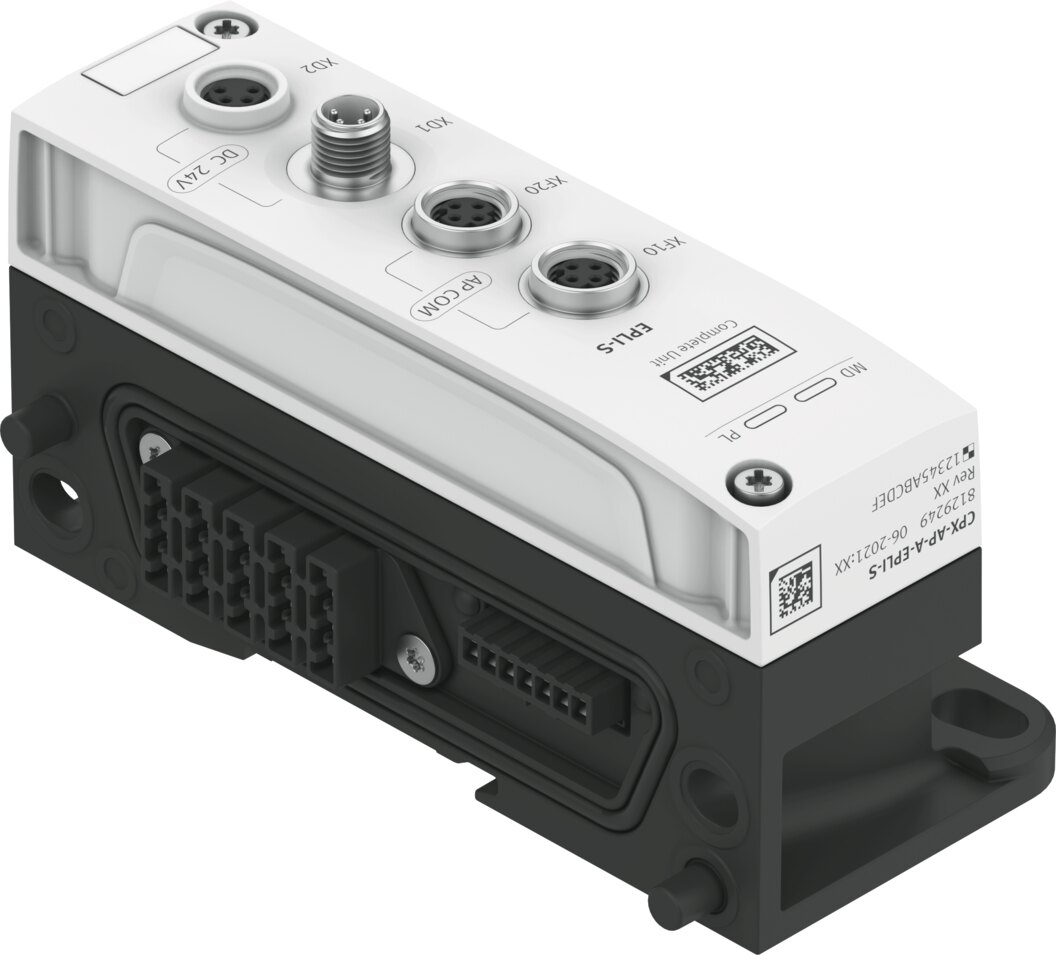

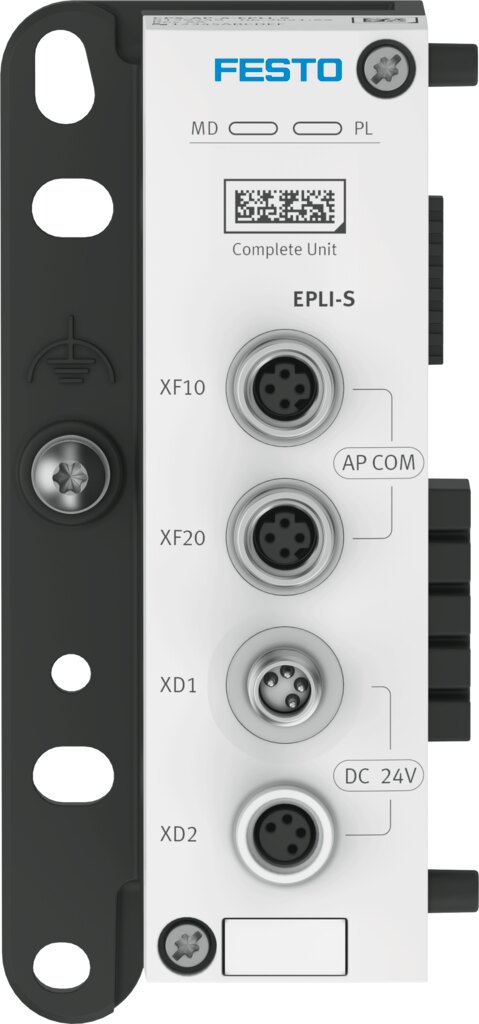

End plate CPX-AP-A-EPLI-S - Festo 8129249
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Dimensions (W x L x H) | 48.4 mm x 117.2 mm x 61.5 mm |
|---|---|
| Type of mounting | On DIN rail via accessories, On mounting frame, Via through-hole for M5 screw, Via through-hole for M6 screw |
| Product weight | 256 g |
| Mounting position | Any, on H-rail: horizontal |
| Ambient temperature | -20 ... 50 °C |
| Note on ambient temperature | Observe ambient temperature derating according to IEC 61131-2:2017 |
| Storage temperature | -20 ... 70 °C |
| Relative air humidity | 5 - 95%, Non-condensing |
| Nominal altitude of use | <= 2000 m ASL (> 79.5 kPa) |
| Max. installation height | 3500 m |
| Note on max. installation height | Observe ambient temperature derating according to IEC 61131-2:2017 |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Note on vibration resistance | Transport application test with severity class 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Note on shock resistance | 30 g/11 ms to EN 60068-2-27, SG1 on DIN rail, SG2 on direct mounting, Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Protection class | III |
| Pollution degree | 2 |
| Overvoltage category | II |
| Max. cable length | 50 m system communication |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Fire test material | UL94 V-0 (housing) |
| Note on materials | RoHS compliant, Free of halogen, Free of phosphoric acid ester |
| Material housing | Coated die-cast aluminium |
| Material cover | Reinforced PBT |
| Material screws | Nickel-plated steel, Galvanised steel |
| Material seals | Polyurethane foam |
| Material o-ring | Fluoro rubber |
| Diagnostics via LED | Diagnostics per module, Power supply, electronics/sensors, Load power supply |
| Diagnostics per internal communication | Communication error, Electronics/sensors overvoltage, Load overvoltage, Electronics/sensors undervoltage, Load undervoltage |
| Communication interface, function | System communication XF10 IN / XF20 OUT |
| Communication interface, connection type | 2x socket |
| Communication interface, connection technology | M8x1, D-coded according to EN 61076-2-114 |
| Communication interface, number of pins/cores | 4 |
| Communication interface, plug pattern | 00995937 |
| Communication interface, protocol | AP |
| Communication interface, screened | Yes |
| Power supply, function | Incoming electronics/sensors and load |
| Power supply, connection type | Plug |
| power supply, connection system | M8x1, A-coded to EN 61076-2-104 |
| Power supply, connection pattern | 00991171 |
| Power supply, number of pins/wires | 4 |
| Power transmission, function | Outgoing electronics/sensors and load |
| Power transmission, connection type | Socket |
| Power transmission, connection technology | M8x1, A-coded to EN 61076-2-104 |
| Power transmission, number of pins/wires | 4 |
| Power transmission, plug pattern | 00991872 |
| Note regarding operating voltage | SELV/PELV fixed power supplies required, Note the voltage drop |
| Note on nominal operating voltage DC | 2x24 V [XD1,PS,PL], Protected Extra-Low-Voltage to IEC 60204-1 |
| Nominal operating voltage DC of load | 24 V |
| Permissible voltage fluctuation of load | ±25% |
| Nominal DC operating voltage, electronics/sensors | 24 V |
| Permissible voltage fluctuations for electronics/sensors | ±25% |
| Power supply, conductor diameter | 0.5 mm² |
| Nominal current | 4 A |
| Max. power supply | 2 x 4 A (external fuse required) |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 41 mA |
| Intrinsic current consumption at nominal operating voltage load | Typically 3 mA |
| Power failure bridging | 10 ms |
| Potential separation between the supply voltages electronics/sensor technology and load/valves | Yes |
| Reverse polarity protection | Yes |
| Weight | 0.26 kg |
| Manufacturer | Festo |
| Hersteller-Nr | CPX-AP-A-EPLI-S |
| EAN | 4052568634940 |
| Zolltarifnummer | 85389099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
