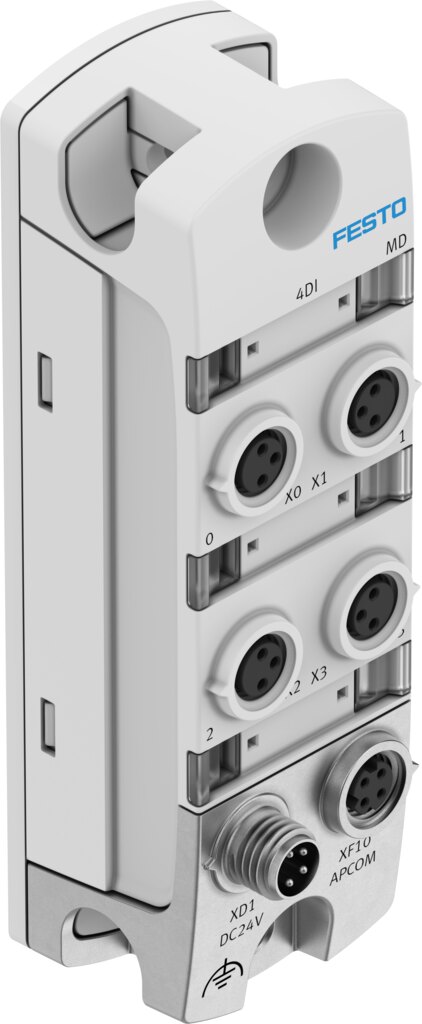

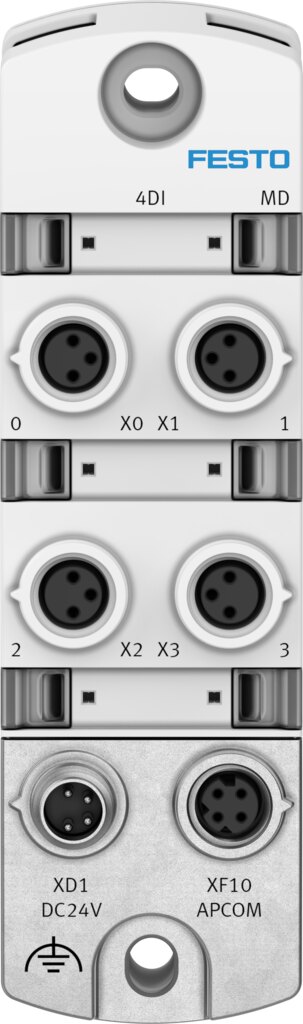

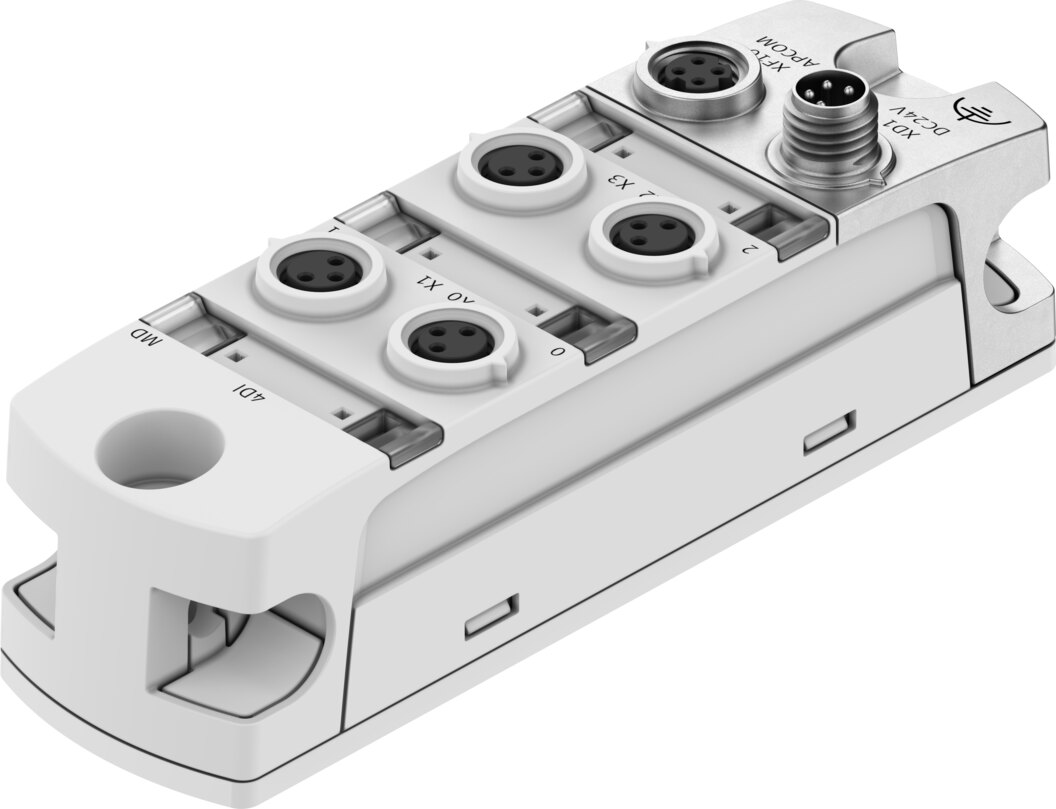

Digital input module for CPX-AP-I, 4 inputs, 24 V DC, IP65 CPX-AP-I-4DI-M8-3P - Festo 8086605

Festo ✓ Original product Brand new

The Festo digital input module CPX-AP-I-4DI-M8-3P acquires signals locally in the CPX-AP-I system. The data sheet lists 4 inputs, nominal operating voltage 24 V DC and power failure bridging 10 ms. Further data: reverse polarity protection and IP65/IP67 protection.

Net
€121.19
excl. VAT
Item FES-8086605
Manufacturer no. CPX-AP-I-4DI-M8-3P
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The digital input module CPX-AP-I-4DI-M8-3P acquires signals locally in the CPX-AP-I system. The key selection criteria are 4 inputs and nominal operating voltage 24 V DC.

Advantages

  • 4 inputs
  • Nominal operating voltage 24 V DC
  • Power failure bridging 10 ms
  • Integrated reverse polarity protection
  • IP65/IP67 protection for mounting directly on the machine
  • Suitable for ambient temperatures of -20 to 60 °C

Application

CPX-AP-I-4DI-M8-3P is used when designing, extending and maintaining installations with the CPX-AP-I system.

Technical data

TypeCPX-AP-I-4DI-M8-3P
Festo part number8086605
Dimensions (W x L x H)30 mm x 102.5 mm x 35 mm
Type of mountingWith through-hole
Product weight81 g
Ambient temperature-20 to 60 °C
Storage temperature-40 to 70 °C
Relative air humidity5 - 95%, Non-condensing
Degree of protectionIP65, IP67
Note on degree of protectionUnused connections sealed
Corrosion resistance class CRC1 - Low corrosion stress
Max. cable length30 m inputs, 50 m system communication
LABS (PWIS) conformityVDMA24364-B2-L
Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1
CE mark (see declaration of conformity)To EU EMC Directive
UKCA marking (see declaration of conformity)To UK instructions for EMC
KC markKC-EMV
ApprovalRCM, c UL us - Listed (Oil)
Certificate issuing authorityUL E239998
Note on materialsRoHS compliant
Material housingMakrolon, Nickel-plated die-cast zinc
Material sealsNBR
Material o-ringFluoro rubber
Diagnostics via LEDDiagnostics per module, Status per channel
Diagnostics per internal communicationShort circuit/overload in sensor supply, Electronics/sensors overvoltage, Electronics/sensors undervoltage
Communication interface, functionSystem communication XF10 IN
Communication interface, connection typeSocket
Communication interface, connection technologyM8x1, D-coded according to EN 61076-2-114
Communication interface, number of pins/cores4
Communication interface, protocolAP
Communication interface, screenedYes
Power supply, functionIncoming electronics/sensors and load
Power supply, connection typePlug
Power supply, connection systemM8x1, A-coded to EN 61076-2-104
Power supply, number of pins/wires4
Note regarding operating voltageSELV/PELV fixed power supplies required, Note the voltage drop
Nominal DC operating voltage, electronics/sensors24 V
Permissible voltage fluctuations for electronics/sensors± 25 %
Max. power supply2 x 4 A (external fuse required)
Intrinsic current consumption at nominal operating voltage for electronics/sensorsTypically 32 mA
Power failure bridging10 ms
Reverse polarity protectionYes
Electrical connection input, functionDigital input
Electrical connection input, connection type4x socket
Electrical connection input, connector systemM8x1, A-coded to EN 61076-2-104
Electrical connection input, number of connections/cores3
Number of inputs4
Characteristic for inputsTo IEC 61131-2, type 3
Switching levelSignal 0: ≤ 5 V, Signal 1: ≥ 11 V
Switching logic for inputsPNP (positive switching), 2-wire sensors to IEC 61131-2, 3-wire sensors to IEC 61131-2
Input debounce time0.1 ms, 3 ms, 10 ms, 20 ms
Fuse protection of inputs (short circuit)Internal electronic fuse per module
Max. residual current of inputs per module0.8 A
Electrical isolation of inputs between channelsNo
Electrical isolation of inputs between channel - internal communicationYes
Weight0.11 kg
ManufacturerFesto
Hersteller-NrCPX-AP-I-4DI-M8-3P
EAN4052568461430
Zolltarifnummer85389099
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Seal materialNBR
Operating voltage24 V DC
Protection ratingIP65
Temperaturbereich-20-60 °C
Temperature (max.)60
