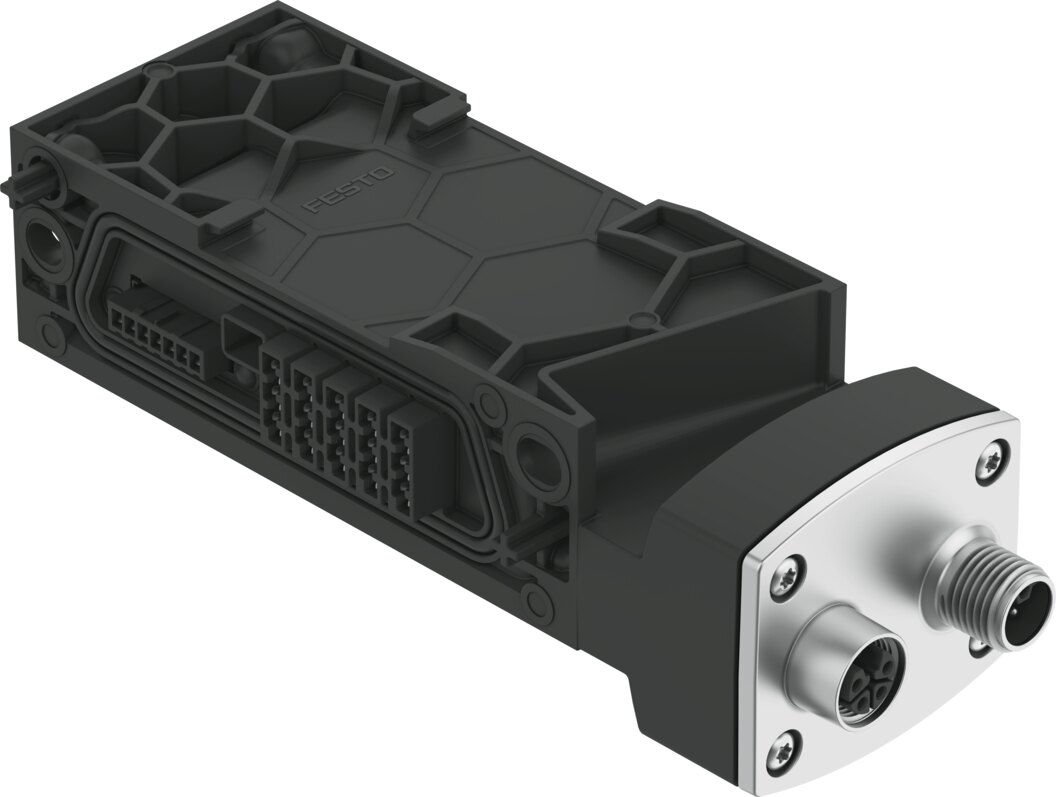

System supply for CPX-AP-A, 24 V DC, grid dimension 50.1 mm CPX-AP-A-S-2-M12-4P - Festo 8195677

Festo ✓ Original product Brand new

The Festo system supply CPX-AP-A-S-2-M12-4P supplies the CPX-AP-A system with power. Key data: nominal operating voltage 24 V DC, nominal current 16 A and ambient temperature -20 to 50 °C. In addition: grid dimension 50.1 mm and dimensions 50.1 mm x 150 mm x 45.6 mm (W x L x H).

Net
€187.58
excl. VAT
Item FES-8195677
Manufacturer no. CPX-AP-A-S-2-M12-4P
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The system supply CPX-AP-A-S-2-M12-4P supplies the CPX-AP-A system with power. The main data are nominal operating voltage 24 V DC and nominal current 16 A.

Advantages

  • Nominal operating voltage 24 V DC
  • Nominal current 16 A
  • Suitable for ambient temperatures of -20 to 50 °C
  • Grid dimension 50.1 mm
  • Dimensions 50.1 mm x 150 mm x 45.6 mm (W x L x H)
  • Corrosion resistance class CRC 1 (low corrosion stress)

Application

CPX-AP-A-S-2-M12-4P is used when designing, extending and maintaining installations with the CPX-AP-A system.

Technical data

TypeCPX-AP-A-S-2-M12-4P
Festo part number8195677
Dimensions (W x L x H)50.1 mm x 150 mm x 45.6 mm
Grid dimension50.1 mm
Type of mountingOn DIN rail via accessories, With through-hole for M5 screw with accessories, With through-hole for M6 screw with accessories
Product weight177 g
Mounting positionAny, on H-rail: horizontal
Ambient temperature-20 to 50 °C
Note on ambient temperatureObserve ambient temperature derating according to IEC 61131-2:2017
Storage temperature-20 to 70 °C
Relative air humidity5 - 95%, Non-condensing
Nominal altitude of use≤ 2000 m ASL (> 79.5 kPa)
Max. installation height3500 m
Note on max. installation heightObserve ambient temperature derating according to IEC 61131-2:2017
Corrosion resistance class CRC1 - Low corrosion stress
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Note on vibration resistanceTransport application test with severity class 1 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on shock resistance30 g/11 ms to EN 60068-2-27, SG1 on DIN rail, SG2 on direct mounting, Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Protection classIII
Overvoltage categoryII
LABS (PWIS) conformityVDMA24364-B2-L
Fire test materialUL94 V-0 (housing)
Note on materialsRoHS compliant, Free of halogen, Free of phosphoric acid ester
Material housingReinforced PA
Material flangeNickel-plated die-cast zinc
Material screwsNickel-plated steel
Material sealsPolyurethane foam
Material o-ringFluoro rubber
Power supply, functionIncoming electronics/sensors and load
Power supply, connection typePlug
Power supply, connection systemM12x1, L-coded to EN 61076-2-111
Power supply, number of pins/wires4
Power transmission, functionOutgoing electronics/sensors and load
Power transmission, connection typeSocket
Power transmission, connection technologyM12x1, L-coded to EN 61076-2-111
Power transmission, number of pins/wires4
Note regarding operating voltageSELV/PELV fixed power supplies required, Note the voltage drop
Note on nominal operating voltage DC2x24 V [XD1,PS,PL], Protected Extra-Low-Voltage to IEC 60204-1
Nominal operating voltage DC of load24 V
Nominal DC operating voltage, electronics/sensors24 V
Power supply, conductor diameter2.5 mm²
Nominal current16 A
Max. power supply2 x 16 A (external fuse required)
Potential separation between the supply voltages electronics/sensor technology and load/valvesYes
Weight0.195 kg
ManufacturerFesto
Hersteller-NrCPX-AP-A-S-2-M12-4P
EAN4052568784447
Zolltarifnummer85369095
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Operating voltage24 V DC
Temperaturbereich-20-50 °C
Temperature (max.)50
