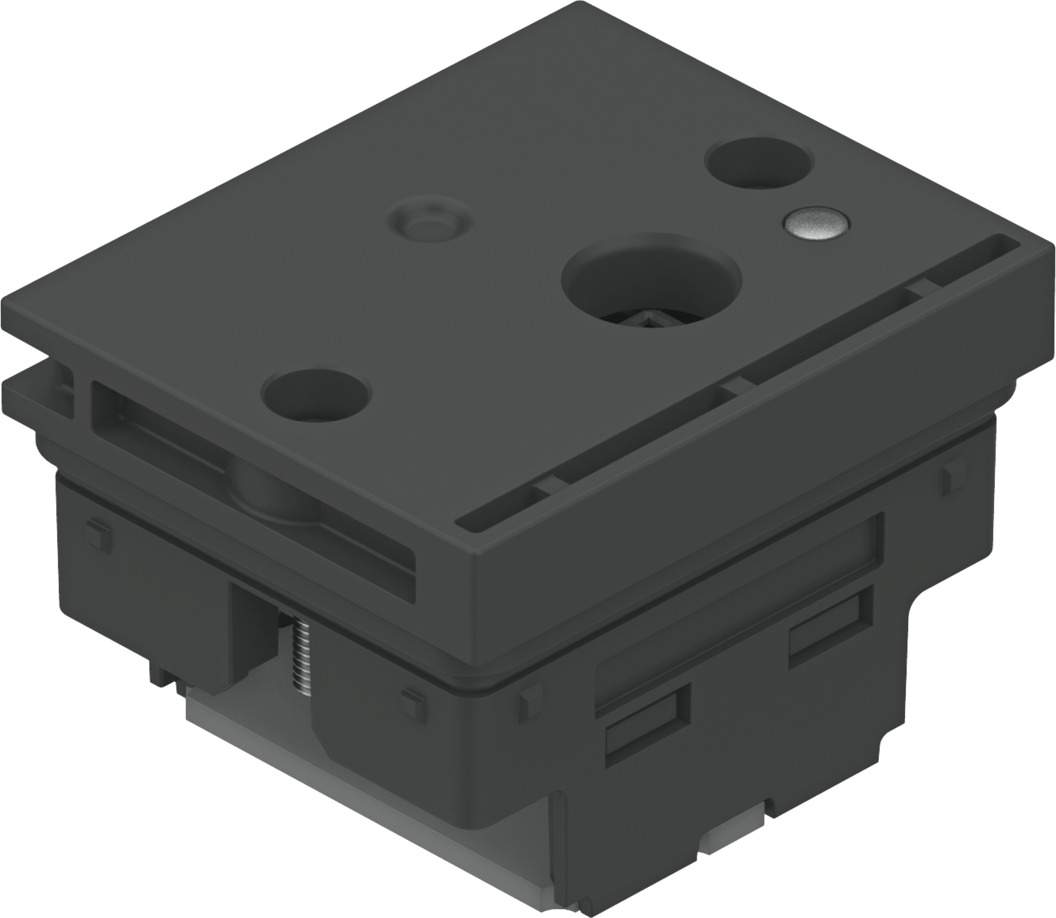

Electronics module for VMPA valve terminal, 1 valve position VMPA-MPM-EMM-P5 - Festo 8111881

Festo ✓ Original product Brand new

The electronics module VMPA-MPM-EMM-P5 is a genuine Festo part for VMPA series valve terminals. Key data: 1 valve position, 1 valve coil and reverse polarity protection. It also offers ambient temperature -5 to 50 °C and housing made of POM.

Net
€97.39
excl. VAT
Item FES-8111881
Manufacturer no. VMPA-MPM-EMM-P5
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The electronics module VMPA-MPM-EMM-P5 is a genuine Festo part for VMPA series valve terminals. For system design, the relevant data are 1 valve position and 1 valve coil.

Advantages

  • Individual sub-base for 1 valve position
  • Controls 1 valve coil
  • Integrated reverse polarity protection
  • Suitable for ambient temperatures of -5 to 50 °C
  • Housing: POM
  • PWIS conformity to VDMA24364 zone III

Application

VMPA-MPM-EMM-P5 is needed for new builds as well as for modifying existing VMPA series valve terminals.

Technical data

TypeVMPA-MPM-EMM-P5
Festo part number8111881
SeriesVMPA
Max. number of valve positions1
Max. number of valve coils1
Reverse polarity protectionYes
Additional functionsFor soft-start valve
Operating voltage DC load voltage21.6 to 26.4 V
Nominal pick-up current per solenoid coil60 mA to 30 ms
Nominal current with current reduction22 mA after 30 ms
Isolation channel - internal busNo
Corrosion resistance class CRC(installed)
LABS (PWIS) conformityVDMA24364 zone III
Ambient temperature-5 to 50 °C
Product weight20 g
Electrical controlMulti-pin
Material housingPOM
Note on materialsRoHS compliant
Weight0.037 kg
ManufacturerFesto
Hersteller-NrVMPA-MPM-EMM-P5
EAN4052568588687
Zolltarifnummer85371098
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Temperature (max.)50
